| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 6X3 |
| Minimum Order Quantity: | 6PCS |
|---|---|
| Price: | $79.9-159.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000pcs/week |
| Name: | Industrial Air Spring | Spring Material: | Rubber + Steel |
|---|---|---|---|
| Product Warranty: | 12 Months | Condition: | Brand-New |
| Flange: | Yes | Contitech: | FT 76-20 DS |
| Color: | Black | Function: | Reduce Vibration |
| High Light: | Industrial Triple Convoluted Air Spring,W01-R58-4095 Triple Convoluted Air Spring,Firestone SP2861 Industrial Air Spring |
||

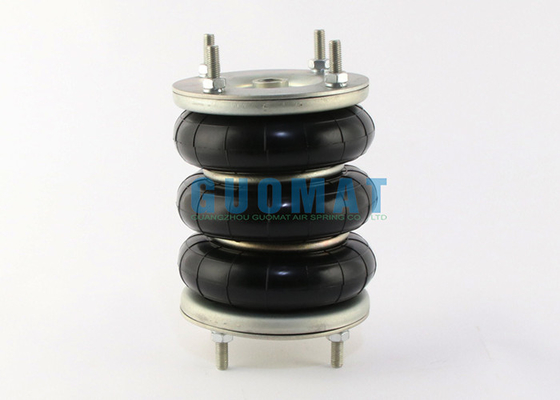

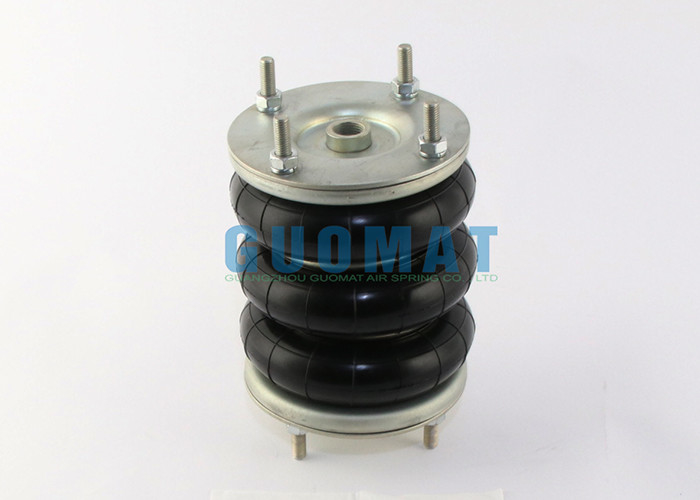

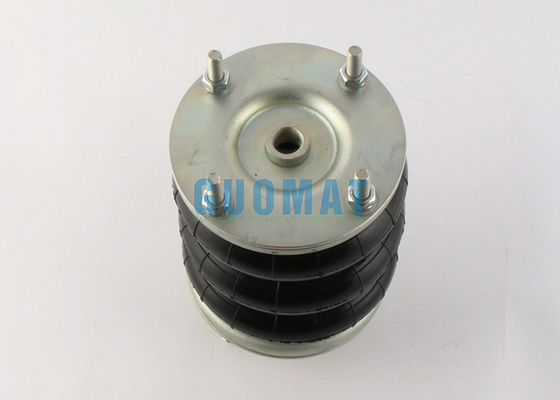

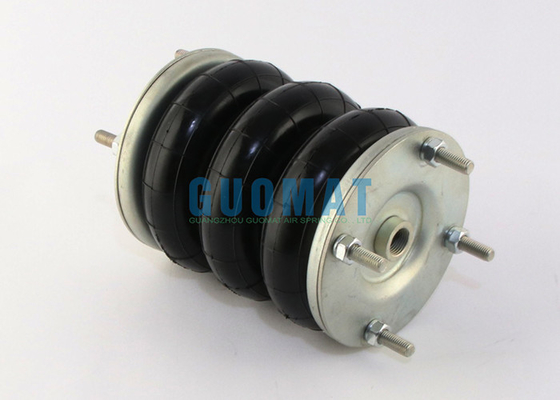

Triple Convoluted Industrial Air Suspension Spring W01-R58-4095 Firestone SP2861 Dunlop 6X3
Product Description
|
Item |
Value |
|
Product Name |
Industrial Air Spring |
|
Warranty |
1 Year Warranty |
|
Material |
Rubber+Steel |
|
Color |
Black |
|
Number of Convolution |
3 |
|
Certification |
ISO/TS16949:2009 |
|
Package |
Carton |
|
MOQ |
10 Pieces |
|
Quality |
High Quality |
|
Application |
Paper Machine, Vibrating Screen |
Air Spring Cross Reference Number
Firestone Number: W01-R58-4095
Firestone Number: W01R584095
Firestone Number: W01 R58 4095
Firestone Number: WO1-R58-4095
Firestone Number: WO1R584095
Firestone Number: WO1 R58 4095
Dunlop Pneuride Number: 6''X3 (Steel)
Dunlop Pneuride Number: 6''x3 (Steel)
Dunlop Springride Number: SP2861
Dunlop Springride Number: SP 2861
Contitech Number: FT76-20DS
Contitech Number: FT 76-20DS
Contitech Number: FT 76-20 DS
Norgren Number: M/31063
Norgren Number: M 31063
Norgren Number: M31063
Parker Number: 9109007
GUOMAT 6X3 Air Spring Technical Data
The Top Cover Plate Diameter: 154mm
Air Inlet: 1/2
The Top Cover Plate Stud: 4XM10X1.5
The Distance Between the Top Cover Stud: 127mm
The Bottom Cover Plate Diameter: 154mm
The Bottom Cover Plate Stud: 4XM10X1.5
The Distance Between the Bottom Cover Stud: 127mm
Rubber Bellow Diameter: 143mm
The Stroke: 105mm-255mm
—————————————————
Minimum Pressure: 0 bar
Resilience to Minimum Height: ≤250N
Weight: 2.8KG
|
Pneumatic Applications - Static Eigenvalues ----Force F [kN] |
||||||||
| Pressure P [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Volume V ［I］ | |
| Height H [mm] | 255 | 1.75 | 2.46 | 3.19 | 3.95 | 4.74 | 5.56 | 3.2 |
| 215 | 2.69 | 3.65 | 4.63 | 5.64 | 5.64 | 7.74 | 2.9 | |
| 175 | 3.51 | 4.71 | 5.93 | 7.17 | 8.43 | 9.71 | 2.4 | |
| 135 | 4.27 | 5.69 | 7.12 | 8.6 | 10.1 | 11.7 | 1.8 | |
Other Related Products
|
Type |
Firestone |
Dunlop Pneuride |
Dunlop Springride |
Contitech |
Norgren |
|
6" x 1 |
W01R584052 |
6" x 1 |
SP1536 |
FS 76-7 DS |
M/31061 |
|
6" x 2 |
W01R584070 |
6" x 2 |
SP2917 |
FD 76-14 DI |
PM/31062 |
|
6" x 2 |
W01R584053 |
6" x 2 |
SP1482 |
FD 76-14 DS |
M/31062 |
|
6" x 3 |
W01R584095 |
6" x 3 |
SP2861 |
FT 76-20 DS |
M/31063 |
|
10" x 1 |
W01R584057 |
10" x 1 |
SP2523 |
FS 210-10 DS |
M/31101 |
|
10" x 2 |
W01R584058 |
10" x 2 |
SP1538 |
FD 210-22 DS |
M/31102 |
|
10" x 3 |
W01R584059 |
10" x 3 |
SP1539 |
FT 210-32 DS |
M/31103 |
|
12" x 1 |
W01R584060 |
12" x 1 |
SP1540 |
FS 412-10 DS |
M/31121 |
|
12" x 2 |
W01R584061 |
12" x 2 |
SP1541 |
FD 412-22 DS |
M/31122 |
|
12" x 2-E |
W01R584039 |
12" x 2-E |
|
|
|
|
12" x 3 |
W01R584062 |
12" x 3 |
SP1542 |
FT 412-32 DS |
M/31123 |
|
14" 1/2 x 1 |
W01R584063 |
14" 1/2 x 1 |
SP1543 |
FS 614-13 DS |
M/31141 |
|
14" 1/2 x 2 |
W01R584064 |
14" 1/2 x 2 |
SP1556 |
FD 614-26 DS |
M/31142 |
|
14" 1/2 x 3 |
W01R584065 |
14" 1/2 x 3 |
SP1558 |
FT 614-36 DS |
M/31143 |
|
16" x 1 |
W01R584066 |
16" x 1 |
|
FS 816-15 DS |
M/31161 |
|
16" x 2 |
W01R584067 |
16" x 2 |
SP1557 |
FD 816-30 DS |
M/31162 |
|
16" x 3 |
W01R584067 |
16" x 3 |
SP2141 |
FT 816-40 DS |
M/31163 |
|
21" 1/2 x 2 |
|
21" 1/2 x 2 |
SP1408 |
|
M/13212 |
|
26"x2 |
|
26"x2 |
SP2342 |
|
M/31262 |
