Email:linda@662n.com Mob:+8613924100039(WhatsAPP)
Wechat:airspringG Skype:guomat
 |
| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | FS1710-12 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $69.9-99.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Warranty: | 12 Months | Main Material: | Rubber |
|---|---|---|---|
| Function: | Reduce Shock | Application: | For Industrial Machine |
| Flange: | Yes | Number Of Convolution: | 1 |
| Other Name: | Rubber Air Spring | Max. Height: | 177mm |
| High Light: | Flange Rubber Industrial Air Spring,FS 1710-12 Industrial Air Spring,Industrial Air Spring Single Convolution |
||
Single Convolution Air Actuator FS 1710-12 Contitech Flange Rubber Industrial Air Spring
Product Description
Product Name: Single Convoluted Air Spring
Model No.: 1B1710-12
Warranty: 1 Year Warranty
Material: Natural Rubber+Steel
Country of Origin: China
Brand: GUOMAT/Neutral
Color: Black
Application: For Industrial Machine
Quality: High Quality
Delivery Time: About 3-8 working days
MOQ: 10 Pieces
Sample Order: Yes
Payment Terms: FOB,EXW,CNF,CIF
Shipment: By air ; By sea ; By Express
Contitech FS1710-12 Detailed Technical Data
Failure Testing: ≥3 millions
Working Temperature: -40℃ bis +70℃
Maximum Outer Diameter: Ø585mm
The Diameter of the Flange: Ø517mm
Nominal Diameter of the Flange: Ø482mm
Distance Between Bolts: Ø482mm
Bolts: 24XM10
Maximum Height: 177mm
Minimum Height: 55mm
Vibration isolation-dynamic characteristic values
Design height H: recommended 125mm, minimum 110mm
| Pressure P ［bar］ | 3 | 4 | 5 | 6 | 7 | 8 | Volume V ［I］ |
| Force (Load) ［KN］ | 53.6 | 70.6 | 87.5 | 110 |
126.5 |
145.7 | 25 |
| Spring Rate ［N/cm］ | 1019 | 1288 | 1551 | 1897 | 2154 | 2448 | |
| Natural Frequency［Hz］ | 2.2 | 2.2 | 2.1 | 2.1 | 2.1 | 2.1 |
Pneumatic application – static characteristic values
Force F [kN]
| Pressure P ［bar］ | 3 | 4 | 5 | 6 | 7 | 8 | Volume V ［I］ | |
| Height H ［mm］ | 140 | 48.2 | 64.4 | 81.2 | 98 | 115 | 132 | 28 |
| 120 | 53.8 | 72.1 | 90.6 | 109 | 128 | 147 | 24 | |
| 100 | 60.2 | 80.2 | 101 | 121 | 142 | 162 | 19 | |
| 80 | 65 | 86.6 | 109 | 130 | 152 | 174 | 15 | |
| 60 | 67.8 | 90.2 | 113 | 136 | 158 | 181 | 9.5 | |
Our Service
1. Reply to your inquiry within 24 working hours
2. Prompt delivery
3. Good after-sales service
4. Competitive factory price
5. One year warranty period
6. We have experienced technology to answer for you
7. More than 15 years production and sales experience
Industrial Air Spring
The industrial air spring widely used in paper-making machinery, vehicle detection equipment, mechanical gripper, shaking table ect. to effectively improve the working efficiency, safety and service life of the equipment. In these fields, the products plays an important role of damping, lifting, supporting, and so on. It helps customers to save manufacturing costs and win more economic profits.
1. The products features low cost, wide use and easy operation.
2. It achieves long service life, and requires no maintenance and lubrication.
3. This product allows for flexible expansion and contraction, strong loading capacity, convenient design, and simple structure.
4. It comes with no friction and soft medium.

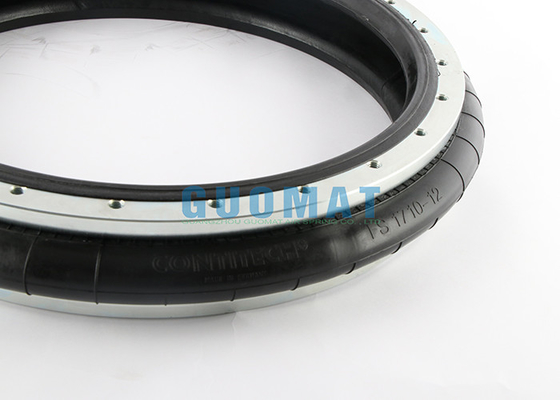

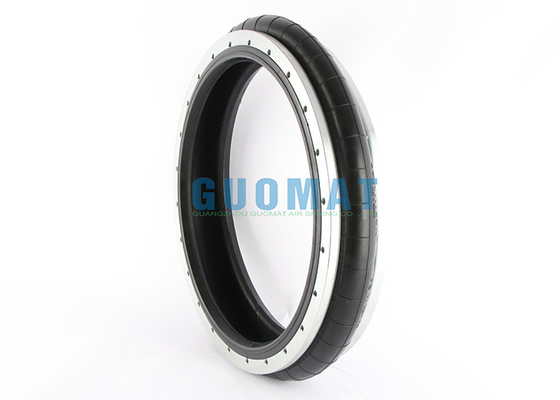

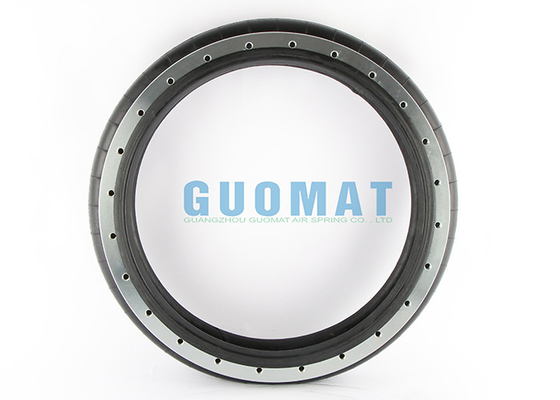

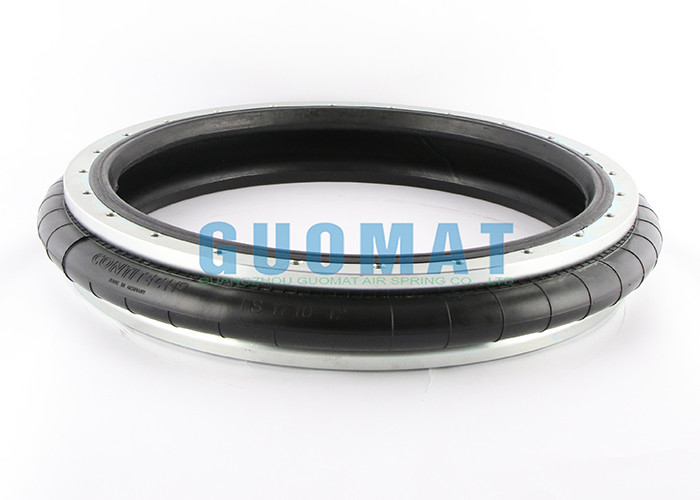

The Real Pictures-Contitech FS1710-12 RS Industrial Air Shocks
Contact Person: Sunny
Tel: 18928788039
