14 1/2x3 Industrial Air Spring Assembly W01-R58-4065 Firestone M/31143 Norgren For Punch Equipment

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	14.5X3

Payment & Shipping Terms:

Minimum Order Quantity:	6PCS
Price:	$79.9-99.9/pc
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Material:	Rubber + Steel	Warranty:	1 Year
Fuction:	Reduce Shock	MOQ:	10 Pieces
Spring Type:	Air Spring Assembly	Item Name:	Air Springs, Air Actuators And Vibration Isolators
Firestone:	W01R584065	Shape:	Triple Convolved Air Ball
Highlight:	W01-R58-4065 Industrial Air Spring , Firestone M/31143 Industrial Air Spring , Industrial Air Spring Assembly

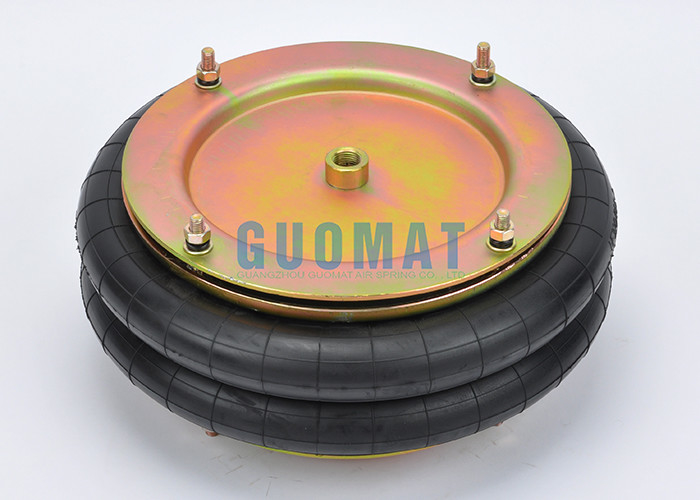

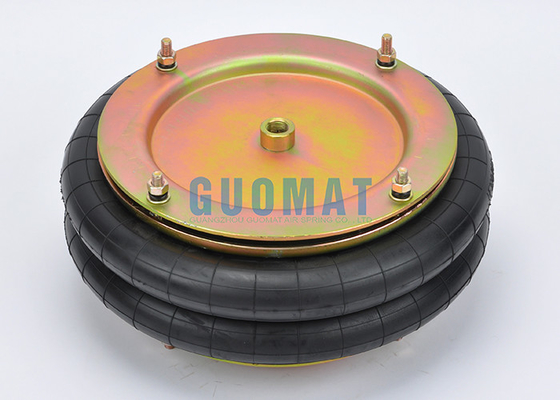

Industrial Air Spring 14 1/2x3 Assembly W01-R58-4065 Firestone M/31143 Norgren For Punch Equipment

Product Information

GUOMAT Part Number: 14.5X3

FIRESTONE Part Number: W01-R58-4065

FIRESTONE Part Number: W01 R58 4065

FIRESTONE Part Number: W01R584065

CONTITECH Part Number: FT 614-36 DS

CONTITECH Part Number: FT 614-36 DS G1/2

CONTITECH Part Number: FT614-36 DS

CONTITECH Part Number: FT614-36 DS G1/2

DUNLOP Part Number: 14 2/1X3

DUNLOP Part Number: 14''2/1X3

DUNLOP Part Number: M/31143

DUNLOP Part Number: M 31143

DUNLOP Part Number: M31143

PARKER Part Number: 9109069

NORGREN Part Number: SP1558

NORGREN Part Number: SP 1558

OEM Number	Cross Number
WO1-R58-4065	M/31143
WO1 R58 4065	9109069
WO1R584065	SP1558
FT 614-36 DS	14 2/1X3

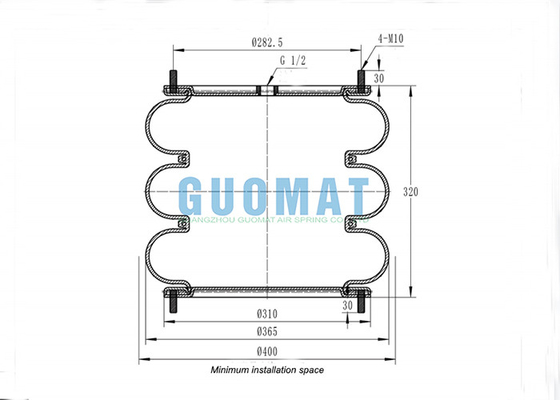

GUOMAT 14.5X3 Air Spring Technical Data

Cover Plate

Top Cover Plate Diameter: Ø310mm

Bottom Cover Plate Diameter: Ø310mm

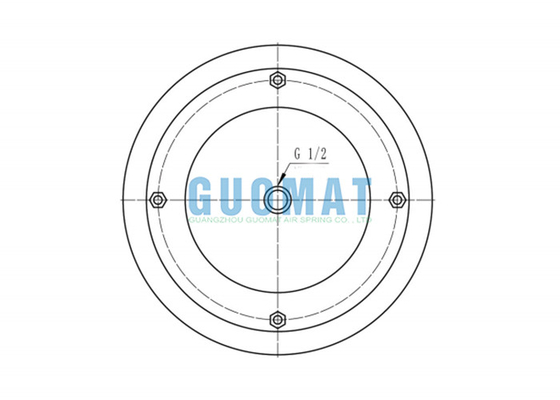

Gas Hole/Air Fitting

Gas Hole: G1/2

Screw/Blind Nut

The Screw of the Top Cover Plate: 4XM10

The Screw of the Bottom Cover Plate: 4XM10

The Screw Height: 30mm

The Distance Between the Screws of the Top Cover Plate: Ø282.5mm

The Distance Between the Screws of the Botttom Cover Plate: Ø282.5mm

Rubber Bellow

The Rubber Bellow Diameter: Ø365mm

The Natural Height: 320mm

Air Spring Components

Air Fitting: A threaded hole to allow spring supply from an air compressor
Nuts/Bolts/Brackets: A method of attaching an air spring to a component. Some air springs contain a combination bolt and air fitting.
Bead Board: A crimped sheet of metal that encloses the spring and allows connections. This is usually forged steel, cast zinc alloy or cast aluminum.
Bellows: A physical multi-layer material that traps compressed gas. Usually made of neoprene or rubber.
Waistband: Found only in air springs of complex design, used to separate bellows chambers.
Bumper: An optional liner layer that protects the piston from damage should the air spring fail.
Piston: The part attached to the machinery to be suspended, which in turn is supported by enclosed air. The piston housing is usually connected to other hardware.

We Supply Other Triple Convoluted Air Spring

Item	Max.Dia.at 7 Bar (mm)	Max Stroke (mm)	Min.Height (mm)	5 Bar Force At Stroke of
Item	Max.Dia.at 7 Bar (mm)	Max Stroke (mm)	Min.Height (mm)	25mm (kN)	50% of Max. Stroke	Max Stroke (kN)
8X3	215	240	110	13.2	9.8	3.9
10X3	265	275	100	20.1	14.2	5.9
12X3	312	300	100	27.9	22.1	8.3
14 1/2X3	378	350	125	46.1	35.3	15.7
16X3	406	360	100	53.4	42.2	13.7

Item	Design Height (mm)	Load at Design Height @5bar (kN)	Natural Frequency @5bar (Hz)	Blind Nut or Bolt Dia. (mm)	Number of Bolts
8X3	220	10.6	2.1	156	4
10X3	250	13.5	1.8	181	4
12X3	250	23.5	1.6	232	4
14 1/2X3	285	37.0	1.6	283	4
16X3	290	41.5	1.1	283	4
