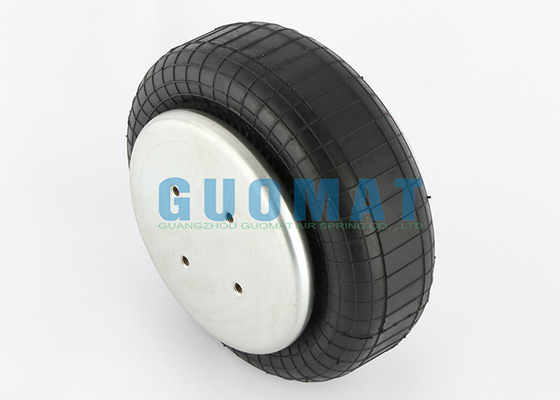

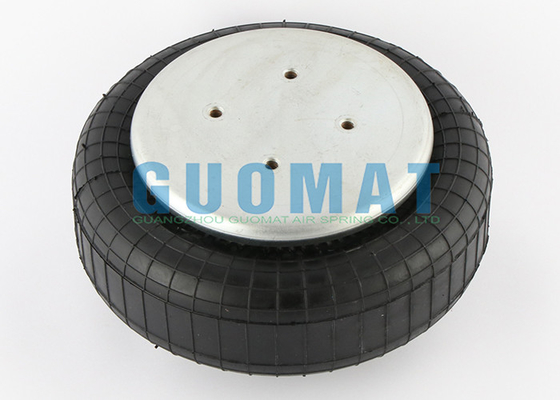

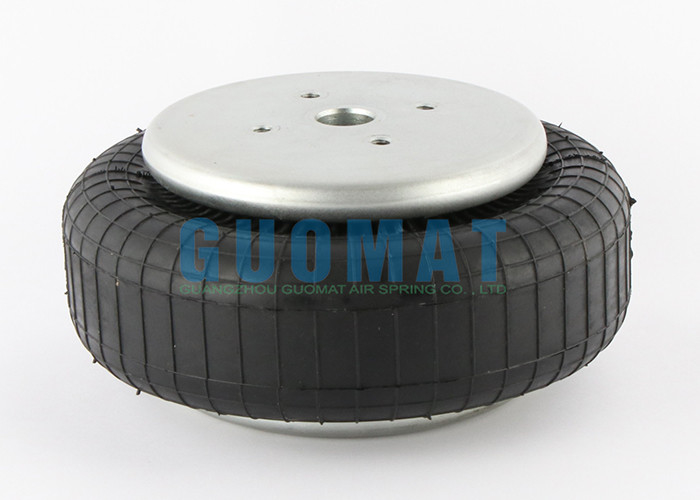

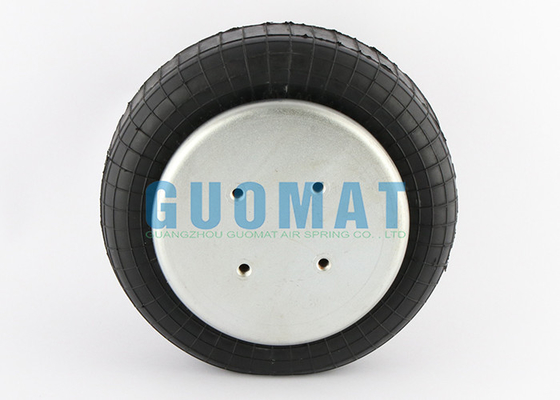

Single Convoluted Air Rubber Bellow 1B9-202 Goodyear Air Spring Air Bag 578 91 3 201

Single Convoluted Air Rubber Bellow 1B9-202 Goodyear Air Spring Air Bag 578 91 3 201


Cross Reference Number

GUOMAT Model Number: 1B9X5

GOODYEAR Part Number: 1B9-202

GOODYEAR Part Number: 1B 9-202

GOODYEAR Part Number: 1B9202

GOODYEAR Bellows Number: 578913201

GOODYEAR Bellows Number: 578 91 3 201

GOODYEAR Bellows Number: 578-91-3-201

ENIDINE Model Number YI-1B9-202

ENIDINE Model Number YI 1B9 202

ENIDINE Model Number YI1B9-202

Type: Industrial Air Spring

Material: Rubber and Steel

Warranty: 12 Months

Color: Black

Place of Origin: Guangzhou,China

Certification: ISO/TS16949:2009

Packing: Neutral Packing

Quality: High-Quality

N.W.: 3KG

G.W.: 6KG

Packing Size: 24*24*24CM

QTY: 2 PCS

Every Standard Air Spring Consists of 4 Layers

•The inner layer which actually contains the air.

•The first layer of fabric reinforced rubber applied

at a specific angle.

•The second layer of fabric reinforced rubber which

is laid to a specific angle to the first layer.

•The cover to protect the bias fabric plies.

Air Spring Features
1. The air spring has excellent nonlinear hard characteristics, which can effectively limit the amplitude, avoid resonance and prevent impact. The nonlinear characteristic curve of the air spring can be ideally designed according to actual needs, so that it has a lower stiffness value near the rated load.
2. Since the medium used in the air spring is mainly air, it is easy to implement active control.
3. The stiffness k of the air spring changes with the load P, so under different loads, the natural frequency of the vibration isolation system is almost unchanged, and the vibration isolation effect is almost unchanged.
