1B5-510 Goodyear Super Cushion Air Bellow 579-91-3-501 Single Convoluted Industrial Air Spring
Product Description
Item: Replace 1B5-510 Goodyear Air Spring
GUOMAT No.: 1B5510
Material: Rubber and Steel
Quality Warranty: 12 Months
Bellow Type: Single
Type: Single Convoluted Industrial Air Spring
Quality: High Quality
Working Temperature: -40℃ bis +70℃
Failure Testing: ≥3 millions
Convoluted Industrial Air Spring technical Data
|
Top Plate Diameter |
Ø85mm |
|
Top Plate Hole/Stud Quantity |
2 Pcs |
|
Gas Hole |
1/4'' |
|
Top Plate Hole/Stud Quantity |
2 Pcs |
|
Stud/Screw |
M8X15mm |
|
Top Plate Stud to Stud Diameter |
44.5mm |
|
Bottom Plate Stud to Stud Diameter |
44.5mm |
|
Bottom Plate Alignment |
Parallel |
|
Bumper |
No |
|
Rubber Bellow Diameter(0.7Mpa) |
Ø150mm |
|
Max. Height |
120mm |
|
Min. Height |
50mm |
OEM Number
Goodyear Manufacturer Part Number: 1B5-510
Goodyear Manufacturer Part Number: 1B 5-510
Goodyear Manufacturer Part Number: 1B5 510
Goodyear Manufacturer Part Number: 1B 5 510
Goodyear Manufacturer Flexmember Number: 579913501
Goodyear Manufacturer Flexmember Number: 579-91-3-501
Goodyear Manufacturer Flexmember Number: 579 91 3 501
Air Springs for Trucks, Trailers and Buses
Air springs for trucks, trailers, cabs and seats protect cargo from damage and improve profitability.
Air springs provide a quiet, cushioned and comfortable ride for your truck, trailer and bus. Trucks, trailers, and buses have relatively long bodies, resulting in noticeable vibrations. There will be less vibration after installing the air spring. Drivers are more comfortable driving, less likely to tire and can stay alert.
Goodyear Single Convoluted Industrial Air Spring
1B12-301 (578-91-3-301) (578913301) (578 91 3 301)
1B12-305 (578-91-3-301) (578913301) (578 91 3 301)
1B12-306 (578-91-3-301) (578913301) (578 91 3 301)
1B12-313 (578-91-3-301) (578913301) (578 91 3 301)
1B12-322 (578-91-3-301) (578913301) (578 91 3 301)
1B14-350 (578-91-3-351) (578913351) (578 91 3 351)
1B14-351 (578-91-3-351) (578913351) (578 91 3 351)
1B14-373 (578-91-3-351) (578913351) (578 91 3 351)
1B14-358 (578-91-3-352) (578913352) (578 91 3 352)
1B5-510 (579-91-3-501) (579913501) (579 91 3 501)
1B8-564 (579-91-3-532) (579913532) (579 91 3 532)
This is a bellows style Goodyear air spring. Bellows air springs have one, two or three coils in the flexible member. This single convoluted airbag is commonly used on lift springs or axles of trucks and trailers, as an air suspension spring, and also as an actuator or insulator in industrial and commercial applications.

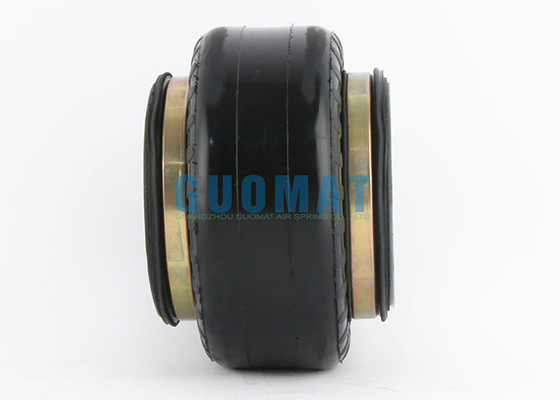

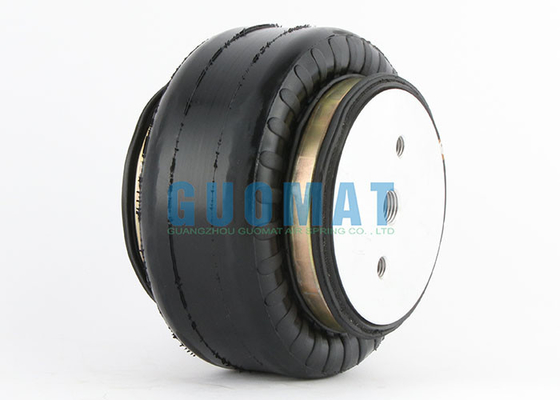

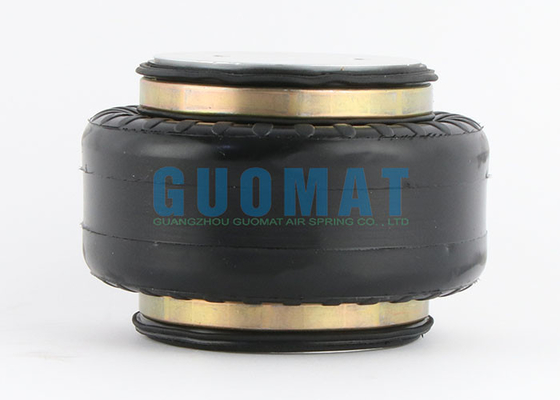

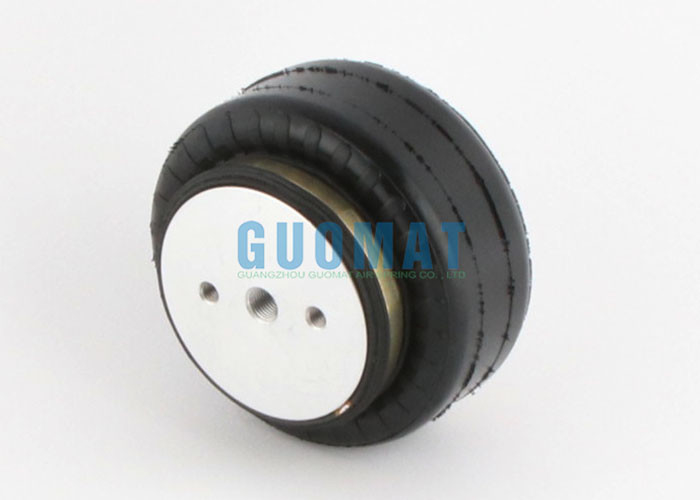

The Real Pictures of 1B5-510
