| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 2B9200 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $99.9-159.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Item: | Goodyear Air Spring | Warranty: | 12 Months |
|---|---|---|---|
| Material: | Metal+Rubber | Quality: | 100% Tested |
| Goodyear: | 1B9-200 | Bellows Number: | 578-92-3-202 |
| Contitech: | FD 200-19 320 | Type: | Double Convoluted Type |
| High Light: | Goodyear Super Cushion Air Spring,2B9-200 Super Cushion Air Spring |
||
2B9-200 Goodyear Super Cushion Air Spring FD200-19 320 Contitech Air Bellow Actuator
Product Description
Brand: GOODYEAR
Origin: Mexico
Part Number: 2B9-200 , 2B 9-200 , 2B9200 , 2B 9200
Flexmember Number: 578-92-3-202 , 578 92 3 202 , 578923202
Cross Reference Number
AUTOMANN: ABSP2B12R-6910
CONTITECH: 64267
CONTITECH: FD200-19 320
CONTITECH: FD 200-19 320
CONTITECH: FD200 19 320
CONTITECH: FD 200 19 320
DAYTON: 354-6910
DINA: A-8127-19
FIRESTONE: 6910
FIRESTONE: W013586910
FIRESTONE: W01 358 6910
FIRESTONE: W01-358-6910
FIRESTONE: WO13586910
FIRESTONE: WO1 358 6910
FIRESTONE: WO1-358-6910
GRANNING: 1371
HDA: PMABG-6910B
HENDRICKSON: 45843-3
HENDRICKSON: B-8768
INT'L/NAVISTAR: 554783C1
LOAD GUARD: SC2011
MASA: 227138412
PREVOST: 63-0173
R&S TRUCK & BODY: 1027405
RIDEWELL: 1003586910C
RIDEWELL: S-4512-C
SPRINGRIDE: 2B9-492
TAURUS: AS218-6910
TRIANGLE: 4320
TRP: AS69100
WATSON&CHALIN: AS-0001
|
Air Spring Number |
Air Bellows Number |
|
2B9-200 |
578-92-3-202 |
|
W013586910 |
6910 |
|
FD200-19 320 |
64267 |
|
ABSP2B12R-6910 |
SP2B12R |
|
45843-3 |
B-8768 |
|
1003586910C |
S-4512-C |
2B9-200 Goodyear Air Spring Technical Data
Min Height: 3.2
Max Height: 10.8
Top Plate Hole/Stud Qty: 3
Bottom Plate Hole Stud Qyt: 2
Top Cover Plate Diameter: 6.40
Bottom Cover Plate Diameter: 6.40
Top Plate Stud to Stud Diameter: 3.50
Bottom Plate Stud to Stud Diameter: 3.50
Top Plate Stud to Air Hole Distance: 1.75
Bumper: No
Bottom Plate Alignment: Parallel
SUPER-CUSHION AIR SPRINGS FOR TRUCKS, TRAILERS, AND BUSES
Super-Cushion air springs for trucks, trailers buses, and cab & seat springs protect cargo, provide constant-level hauling, and deliver long, trouble-free service. Super-Cushion air springs give your trucks, trailers and buses a new high in productivity and long life. They offer a quiet, cushioned ride. Truck, trailer and bus bodies last longer than with steel springs because there is less vibration. The driver rides in greater comfort, becomes less fatigued and stays more alert. Plus cargo has better protection from shock and vibration. For driver comfort, load cushioning, and long life for your trucks, trailers, bus, and cab and seat springs specify Goodyear Engineered Products Super-Cushion air springs.
Our Advantages
1.A wide range of products
2.Accept OEM order
3.Affordable, safe and efficient logistics services
4.Flexible payment
5.1 Year Guaranteed Warranty
6. Factory Price

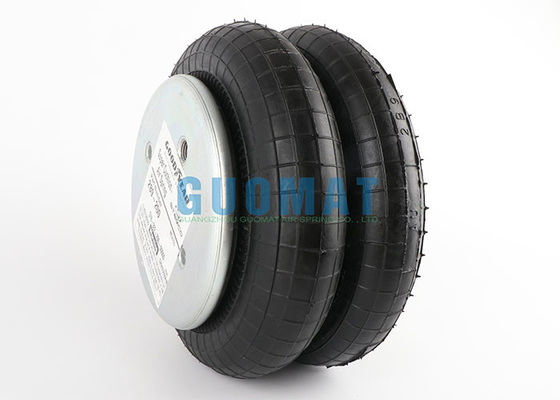

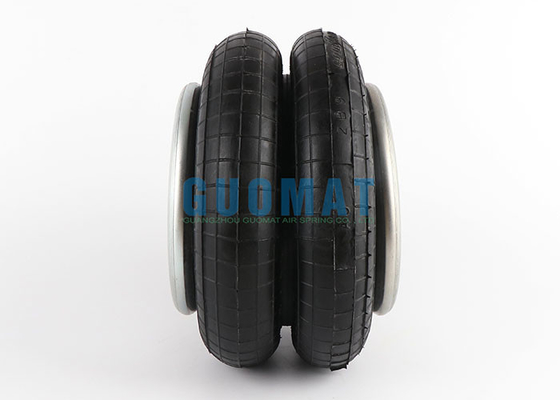

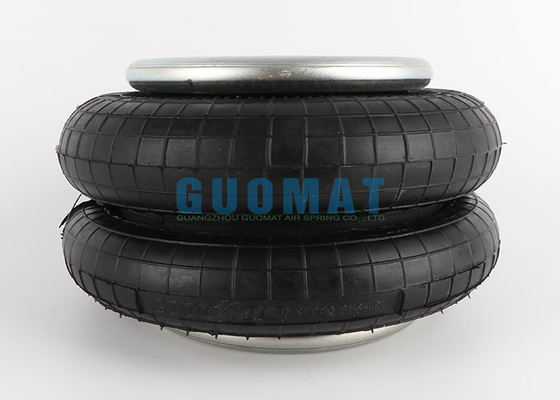

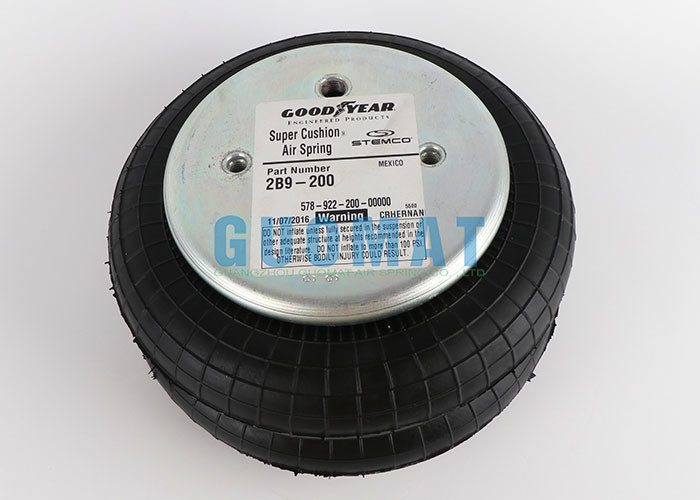

Goodyear Air Suspension Spring Bag Real Pictures
