| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 2B7025 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $59.9-69.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Material: | Rubber Bellow And Aluminum Cover | Warranty: | 1 Year Warranty |
|---|---|---|---|
| Quality: | 100 % Tested | Car Model: | Car,Truck,Trailer,etc |
| Blind Nuts: | 1/4 NPT | Firestone: | W013587025 |
| Style: | Two Ply Bellows | Weight: | 1.6KG |
| High Light: | 175mm Stroke Industrial Air Spring,W01-358-7025 Industrial Air Spring,Firestone Double Convoluted Air Spring |
||

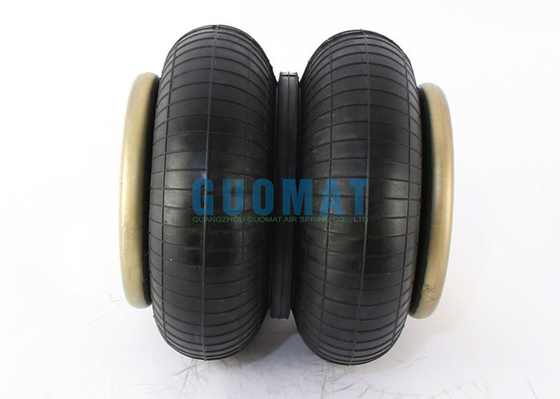

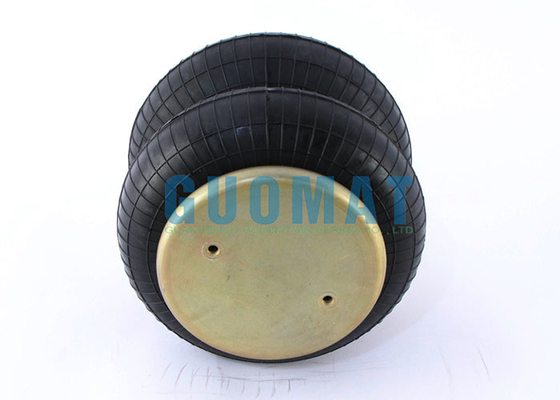

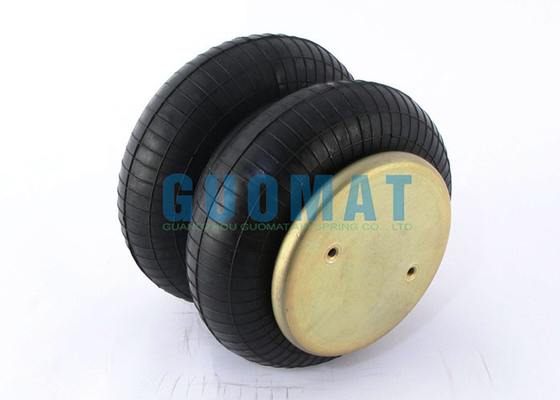

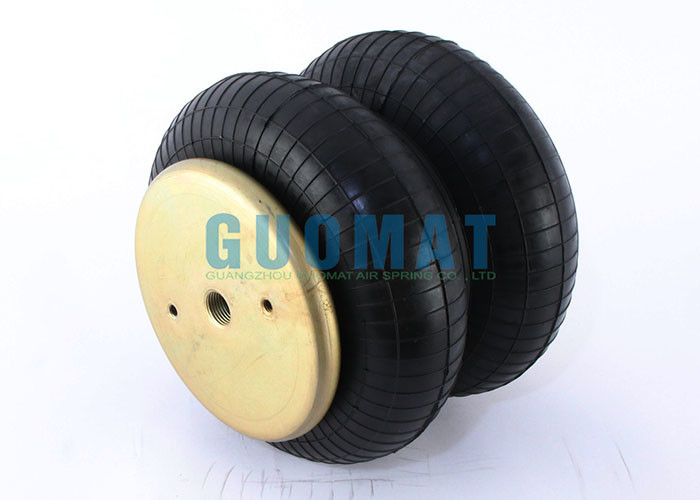

W01-358-7025 Firestone Double Convoluted Air Spring 65-175mm Stroke Industrial Air Spring Supplier
Product Description
Item: Rubber Industrial Air Spring
Model Number: 2B7025
Brand: GUOMAT/Neutral
Material: Rubber+Steel
Spring Warranty: 12 Months
Firestone: 7025
Firestone: W01-358-7025
Firestone: W01 358 7025
Firestone: W013587025
Firestone: WO1-358-7025
Firestone: WO1 358 7025
Firestone: WO13587025
Firestone Industial Air Spring Technical Data
Top Plate Diameter: 111mm
Air Fitting: 1/4-18NPTF
Threaded Hole on the Top Plate: 2X3/8-16UNC
Distance Between Threaded Holes on Top Plate: 44mm
Bottom Plate Diameter: 111mm
Threaded Hole on the Bottom Plate: 2X3/8-16UNC
Distance Between Threaded Holes on Bottom Plate: 44mm
Rubber Bellow Natural Diameter: 146mm
Rubber Bellow Max. Diameter: 165mm
Max. Height: 175mm
Min.Height: 65mm
Style 25 Firestone Airstroke
|
W01-358-7025 |
Blind nuts, 1/4 NPT |
|
W01-358-7047 |
Blind nuts, 3/4 NPT |
|
W01-358-7035 |
Blind nuts, 1/4 NPT both ends |
|
W01-606-7025 |
3/4NPT bothends(no blind nuts) |
|
W01-358-0030 |
Socket head aluminum bead rings(bolts,nuts,washers not included,use cap screws) |
|
W01-358-7030 |
3/4 NPT(only)upper plate, blind nuts lower plate |
|
W01-358-0319 |
Rubber Bellows only |
Air Spring Applied to Die Stripper
It is possible to use an air spring as part of a die stripper system. The air spring is typically used to provide the necessary force to hold the material in place while it is being stamped or formed. When the stamping operation is complete, the air pressure is released and the spring returns to its original position, allowing the stamped material to be removed from the die.
Air springs are a popular choice for die stripper systems because they offer several advantages over other types of springs. They provide a high force-to-size ratio, meaning that they can provide a lot of force in a relatively small package. They also offer a consistent force over a broad range of deflection, which makes them well-suited for use in stamping applications.
Other types of springs that are commonly used in die strippers include coil springs, urethane springs, and nitrogen gas springs. The choice of spring will depend on several factors, including the size and complexity of the die, the material being stamped, and the required force and deflection characteristics.
If you are considering using an air spring as part of a die stripper system, it is important to work with an experienced designer to select the appropriate spring and to ensure that the system is properly designed for your specific application.
