| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 1B12-313 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $99.9-159.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Item: | Air Spring Ball | Warranty: | 12 Months |
|---|---|---|---|
| Material: | Rubber + Iron | Quality: | 100% Tested |
| Origin: | Mexico | Package: | Standard Packing Or Customized |
| Other Name: | 578-91-3-301 Goodyear Air Spring | Spring Type: | Single Convoluted Type Air Spring |
| High Light: | Single Convoluted Goodyear Air Spring,1B12-313 Goodyear Air Spring |
||

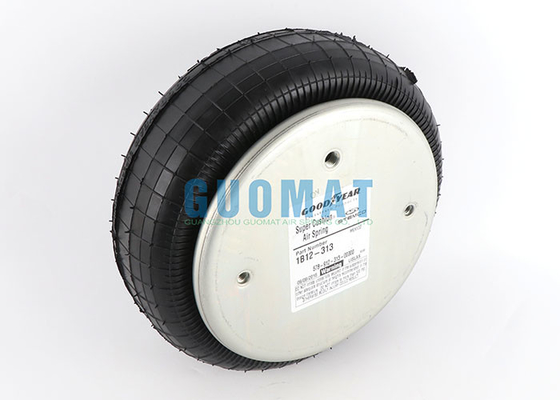

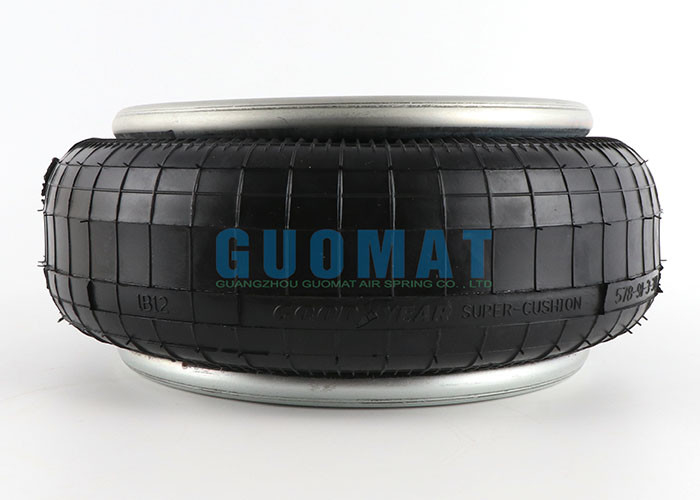

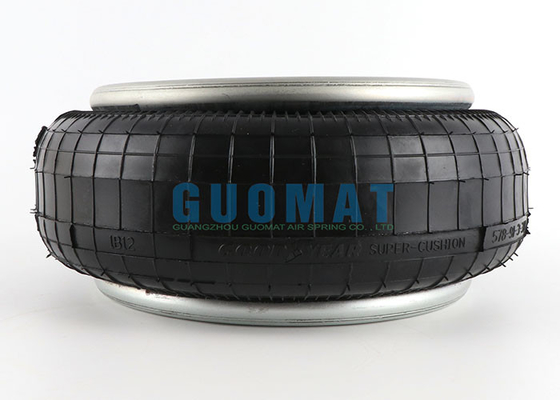

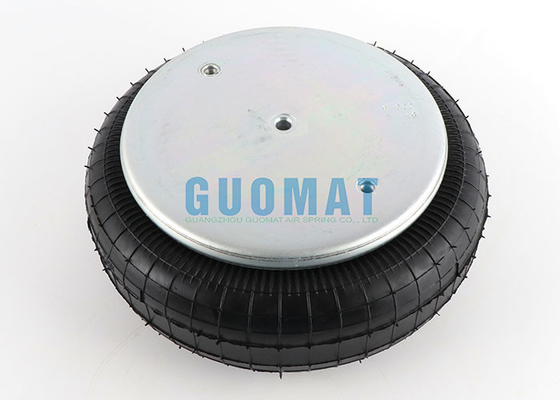

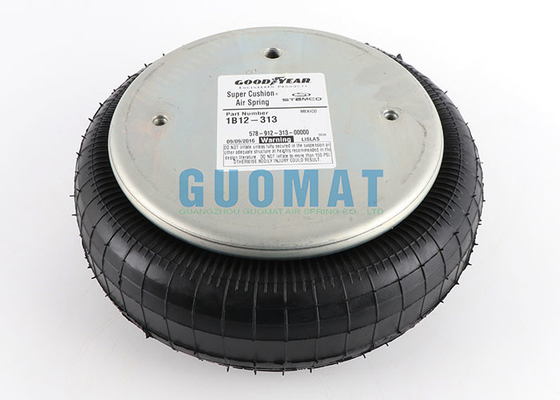

Single Convoluted Goodyear Air Spring 1B12-313 Firestone Industrial Air Bellow Bag FS 330-11 474
Product Description
Original Manufacturer: GOODYEAR
Country of Origin: Mexico
Goodyear # 1B12-313
Goodyear # 1B12 313
Goodyear # 1B 12-313
Goodyear # 1B 12 313
Goodyear Bellow # 578-91-3-301
Goodyear Bellow # 578 91 3 301
Goodyear Bellow # 578913301
Top Cover Plate Hole/Bolt Qyt: 3
Top Cover Plate Diameter: 9.00
Top Plate Air Fitting to Topped Hole Diameter: 2.88
Top Plate Topped Hole to Topped Hole Diameter:6.20
Bottom Cover Plate Hole/Bolt Qyt: 2
Bottom Cover Plate Diameter: 9.00
Bottom Plate Topped Hole to Topped Hole Diameter:6.20
Max.Height: 7.2
Min.Height: 2.3
Manufacturer Number
AUTOMANN Part Number: ABSP1B22A-7008
AUTOMANN Part Number: SP1B22A
CONTITECH Part Number: 64596
CONTITECH Part Number: FS330-11 474
CONTITECH Part Number: FS 330-11 474
CONTITECH Part Number: FS330-11474
FIRESTONE Part Number: 7008
FIRESTONE Part Number: W013587008
FIRESTONE Part Number: W01 358 7008
FIRESTONE Part Number: W01-358-7008
FIRESTONE Part Number: WO13587008
FIRESTONE Part Number: WO1 358 7008
FIRESTONE Part Number: WO1-358-7008
NEWAY Part Number: 90557226
Industrial Air Spring
An industrial air spring is a type of elastic air bag that can be used in various industrial applications such as suspension systems for heavy machinery, vibration isolation mounts, and more. The air spring is made of a reinforced rubber sleeve that is surrounded by compressed air. When a load is applied to the air spring, the compressed air inside the sleeve compresses and the spring supports the load. Because the air spring is adjustable, the support can be fine-tuned to meet the specific needs of the application. Industrial air springs can help to reduce noise and vibration, improve ride quality and stability, and increase the lifespan of machinery.
Single Convoluted Goodyear Air Spring
|
Model No. |
Bellow No. |
Top Plate Dia. |
Bottom Plate Dia. |
Max.Height |
Min.Height |
Piston |
|
1B12-301 |
578-91-3-301 |
9 |
9 |
7.2 |
2.6 |
N |
|
1B12-305 |
578-91-3-301 |
9 |
9 |
7.2 |
2.6 |
N |
|
1B12-306 |
578-91-3-301 |
9 |
9 |
7.2 |
4.2 |
N |
|
1B12-313 |
578-91-3-301 |
9 |
9 |
7.2 |
2.3 |
N |
|
1B14-350 |
578-91-3-351 |
11.3 |
11.3 |
7.2 |
2.3 |
N |
|
1B14-351 |
578-91-3-351 |
11.3 |
11.3 |
7.2 |
4.2 |
N |
|
1B14-358 |
578-91-3-352 |
11.3 |
11.3 |
6.25 |
6.25 |
N |
|
1B14-373 |
578-91-3-351 |
11.3 |
11.3 |
6.2 |
6.2 |
N |
|
1B8-564 |
579-91-3-532 |
5.03 |
5.03 |
2.75 |
2.75 |
N |
