| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 1B12-318 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $99.9-159.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Warranty: | 12 Months | Material: | Rubber + Iron |
|---|---|---|---|
| Quality: | 100% Tested | Origin: | Mexico |
| Brand: | GOODYEAR | Convolutions: | Single |
| Color: | Black | Other Name: | Goodyear Air Spring |
| High Light: | 1B12-318 Goodyear Industrial Air Spring,Industrial Air Spring 336mm |
||
1B12-318 Goodyear Industrial Air Spring Supplier 336mm Max.Diameter Aluminum Plate Air Isolator
Product Description
Original Manufacturer: GOODYEAR
Country of Origin: Mexico
Goodyear Number: 1B12-318
Goodyear Number: 1B 12-318
Goodyear Number: 1B12 318
Goodyear Number: 1B 12 318
Goodyear Number: 578-912-318-00000
Goodyear Number: 578 912 318 00000
1B12-318 Goodyear Air Spring Technical Data
Top Cover Plate Diameter: 228.6mm
Air Fitting: G3/4-14
Distance Between Air Fitting and Threaded Hole: 72.9mm
The Distance Between the Threaded Holes: 157.5mm
Bottom Cover Plate Diameter: 228.6mm
The Distance Between the Threaded Holes: 157.5mm
The Rubber Bellow Max.Diameter: 336mm(At 7 Bar)
Air Spring Crossover Chart-Single Convoluted Goodyear Air Spring
| Goodyear Number | Firestone Number | Contitech Number |
| 1B15-375 | W01-358-8158 | |
| 1B15-377 | W01-358-8157 | |
| 1B6-535 | W01-358-7751 | |
| 1B6-054 | W01-358-7742 | FS70-7 CI 3/4 NPT |
| 1B8-562 | W01-358-7605 | FS120-12 CI 3/4 NPT |
| 1B8-157 | W01-358-7598 | FS120-12 CI 1/4 NPT |
| 1B8-152 | W01-358-7561 | FS120-10 CI 3/4 NPT |
| 1B7-104 | W01-358-7484 | FS100-10 CI 3/4 NPT |
| 1B9-204 | W01-358-7465 | FS200-10 CI 3/4 NPT |
| 1B9-201 | W01-358-7459 | FS200-10 CI 1/4 |
| 1B9-205 | W01-358-7458 | |
| 1B14-535 | W01-358-7109 | FS530-11 CI 3/4 NPT |
| 1B14-351 | W01-358-7104 | FS530-11 CI 1/4 NPT |
| 1B14-352 | W01-358-7101 | FS530-11 CI 3/4 NPT |
| 1B14-363 | W01-358-7091 | FS530-14 CI 1/4 NPT |
| 1B12-900 | W01-358-7043 | FS330-14 CI 3/4 NPT |
| 1B12-301 | W01-358-7039 | FS330-14 CI 1/4 NPT |
| 1B12-305 | W01-358-7012 | FS330-11 CI 3/4 NPT |
| 1B5-502 | W01-358-6996 | FS50-5 CI 3/4 NPT |
| 1B6-050 | W01-358-7731 | FS70-7 CI 1/4 NPT |
| 1B8-150 | W01-358-7564 | FS120-10 CI 1/4 NPT |
| 1B9-200 | W01-358-7460 | FS200-10 CI 1/4 NPT |
| 1B7-100 | W01-358-7451 | FS100-10 CI 1/4 NPT |
| 1B14-350 | W01-358-7103 | FS530-11 CI 1/4 NPT |
| 1B12-304 | W01-358-7011 | FS330-11 CI 3/4 NPT |
| 1B12-300 | W01-358-7008 | FS330-11 CI 1/4 NPT |
| 1B5-500 | W01-358-7001 | FS50-5 CI 1/4 NPT |
| 1B12-318 | W01-M58-6011 | FS330-11 CI G3/4 |
| 1B5-810 | W01-M58-6140 | FS50-5 CI G1/4 |
| 1B8-860 | W01-M58-6170 | |
| 1B8-850 | W01-M58-6166 | FS120-10 CI G1/4 |
| 1B9-215 | W01-M58-6374 | FS200-10 CI G3/4 |
| 1B14-372 | W01-M58-6369 | FS530-14 CI G3/4 |
| 1B14-371 | W01-M58-6100 | FS530-11 CI G3/4 |
| 1B7-840 | W01-M58-6145 | FS100-10 CI G1/4 |
| 1B6-833 | W01-M58-6155 | FS70-7 CI G1/4 |
| 1B14-362 | W01-358-7096 |

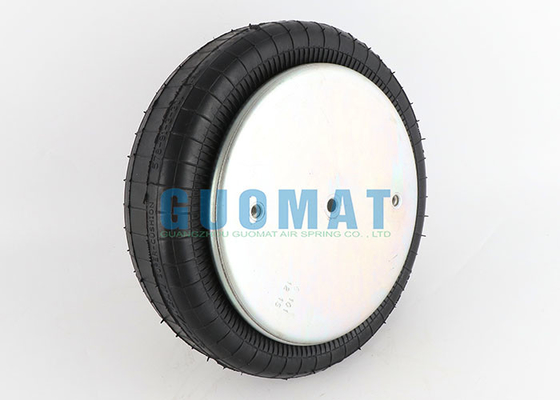

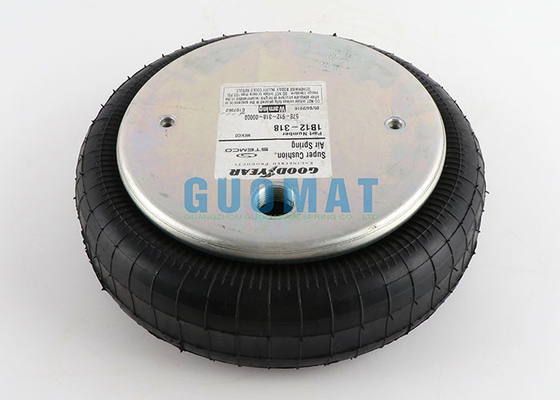

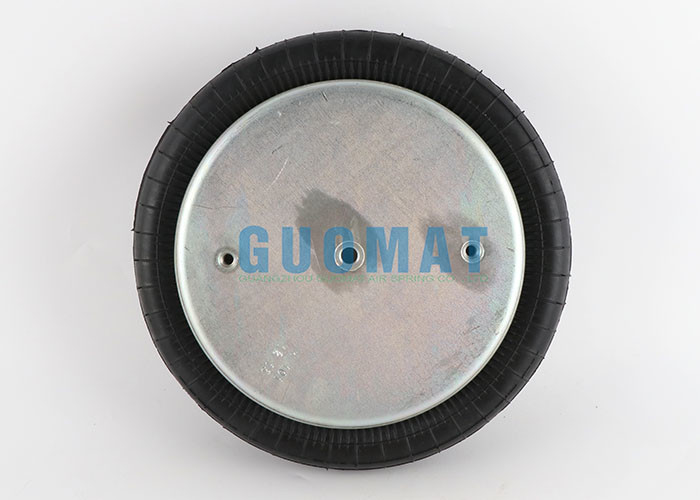

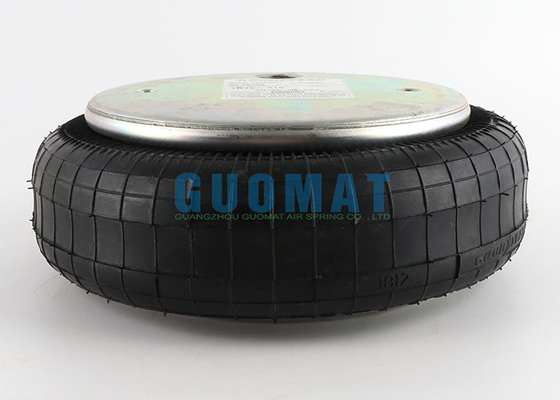

The Real Pictures
