| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 2B15-377 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $99.9-159.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Warranty: | 12 Months | Material: | Rubber + Iron |
|---|---|---|---|
| Origin: | Mexico | Brand: | GOODYEAR |
| Part Number: | 2B15-377 | Item Name: | Industrial Goodyear Air Spring |
| Pressure Ability: | 0.2-0.8 M Pa | Other Name: | Air Suspension Parts |
| High Light: | Goodyear Air Spring Double Convoluted,2B15-377 Goodyear Air Spring,Rubber Material Industrial Air Spring |
||
2B15-377 Double Convoluted Goodyear Air Spring 578-92-3-377 Packaging Machinery Suspension Air Isolator
Product Description
Original Manufacturer: GOODYEAR
Country of Origin: Mexico
Goodyear Spare Part Number: 2B15-377
Goodyear Spare Part Number: 2B 15-377
Goodyear Spare Part Number: 2B15 377
Goodyear Spare Part Number: 2B 15 377
Goodyear Rubber Bellows Number: 578923377
Goodyear Rubber Bellows Number: 578-92-3-377
Goodyear Rubber Bellows Number: 578 92 3 377
Enidine Spare Part Number: YI-2B15-377
Enidine Spare Part Number: YI 2B15 377
Enidine Spare Part Number: YI2B15377
Contitech Part Number: FD53035-1165
Contitech Part Number: FD 53035-1165
Contitech Part Number: FD53035 1165
Contitech Part Number: FD 53035 1165
Firestone Part Number: W013589529
Firestone Part Number: W01-358-9529
Firestone Part Number: W01 358 9529
Firestone Part Number: WO13589529
Firestone Part Number: WO1-358-9529
Firestone Part Number: WO1 358 9529
Double Convoluted Bellows Type Goodyear Air Spring Technical Data
Spring Weight: 19.5 LB
Min.Temperature Range:-40 °F
Max.Design Height: 9 1/2 in
Min.Design Height: 7 1/2 in
Bumpers: Without Bumpers
Air Inlet Type: NPT
Air Fitting: 3/4 in
Bellows Type: Double Convolution
Convolutions: Double
Air spring materials are durable, sophisticated, and cost-effective for a variety of actuation and vibration isolation applications. Air springs offer superior quality and performance using a proven design, fabric reinforced neoprene or natural rubber flexible member construction, and corrosion resistant end retainers.
Double Convoluted Goodyear Air Spring
| Goodyear No. | Bellows No. | ENIDINE No. | Firestone No. | Contitech No. |
| 2B12-305 | 578-91-3-310 | YI-2B12-305 | W01-358-7443 | FD 330-22 323 |
| 2B12-317 | 578-91-3-310 | YI-2B12-317 | W01-358-7499 | FD 330-30 502 |
| 2B12-324 | 578-91-3-310 | YI-2B12-324 | W01-358-7447 | FD 330-30 340 |
| 2B9-200 | 578-92-3-202 | YI-2B9-200 | W01-358-6910 | FD 200-19 320 |
| 2B9-201 | 578-92-3-202 | YI-2B9-201 | W01-358-6935 | FD 200-19 499 |
| 2B9-206 | 578-92-3-202 | YI-2B9-206 | W01-358-6905 | FD 200-19 315 |
| 2B9-210 | 578-92-3-202 | YI-2B9-210 | W01-358-6908 | FD 200-19 362 |
| 2B9-225 | 578-92-3-202 | YI-2B9-225 | W01-358-6928 | |
| 2B9-230 | 578-92-3-202 | YI-2B9-230 | W01-358-6940 | FD 200-19 450 |
| 2B9-240 | 578-92-3-202 | YI-2B9-240 | W01-358-7119 | |
| 2B9-245 | 578-92-3-202 | YI-2B9-245 | W01-358-7788 | FD 200-19 510 |
| 2B9-218 | 578-92-3-206 | YI-2B9-218 | W01-358-6927 | FD 200-25 453 |
| 2B9-250 | 578-92-3-206 | YI-2B9-250 | W01-358-6943 | FD 200-25 426 |
| 2B9-251 | 578-92-3-206 | YI-2B9-251 | W01-358-6948 | FD 200-25 429 |

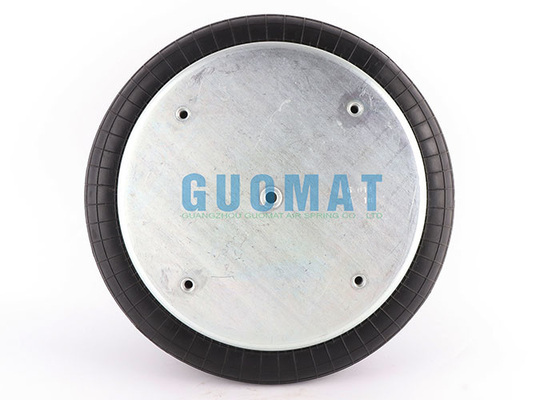

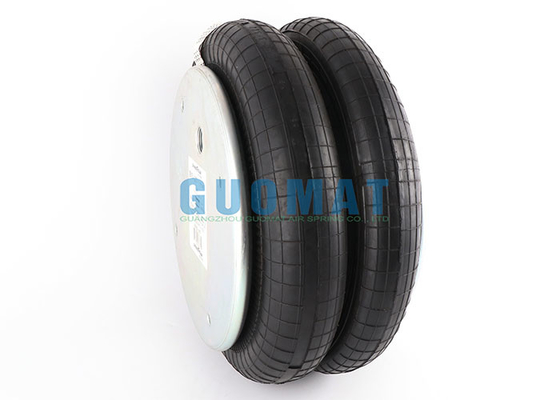

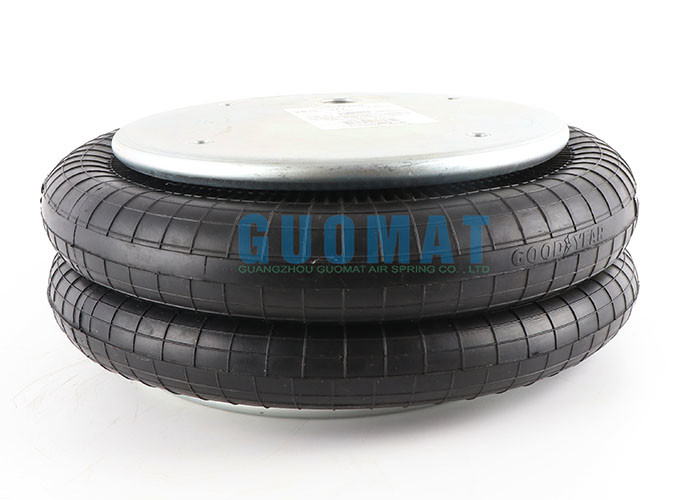

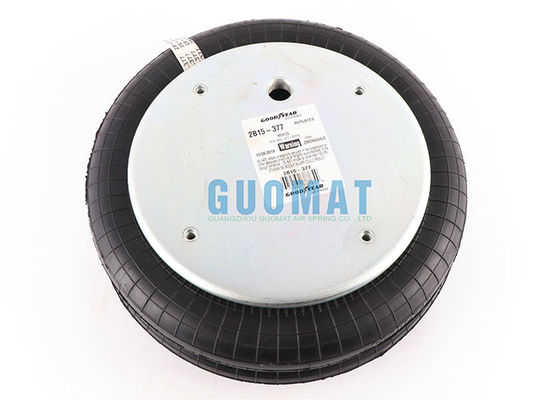

2B15-377 Goodyear Industrial Air Spring Real Pictures
