| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 2B4064 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $69.9-199.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Material: | Steel, Rubber | Warranty: | 1 Year Warranty |
|---|---|---|---|
| Quality: | 100 % Tested | Style: | Convoluted Type Flange Air Spring |
| Air Inlet: | G1/2 | Thread Size: | M10 |
| Outer Diameter: | 365mm | Other Name: | Aluminum Plate Air Spring Isolator |
| High Light: | Dunlop 14 Industrial Air Springs,1/2'' X2 Industrial Air Springs,Industrial Air Springs With Flange Ring |
||
Dunlop 14 1/2'' X2 Industrial Air Springs Provider W01R584064 Firestone Rubber Bellows With Flange Ring
Product Details
Item: Double Convoluted Industrial Air Spring
Type: With Flange
Material: Rubber+Steel
Warranty: 1 Year Warranty
MOQ: 10 Pieces
Color: Black
Rubber: Natural Rubber
Other Name: Airbag,Rubber Damper,Air Springs Bellows Actuator

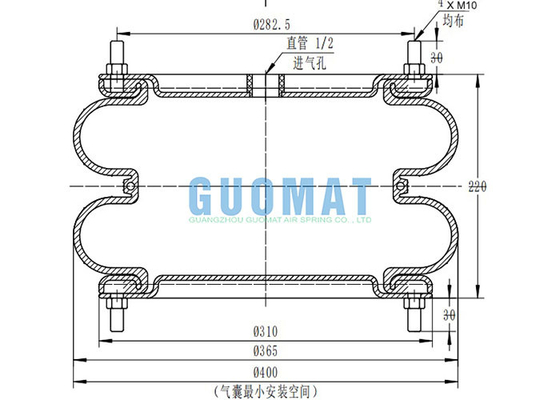

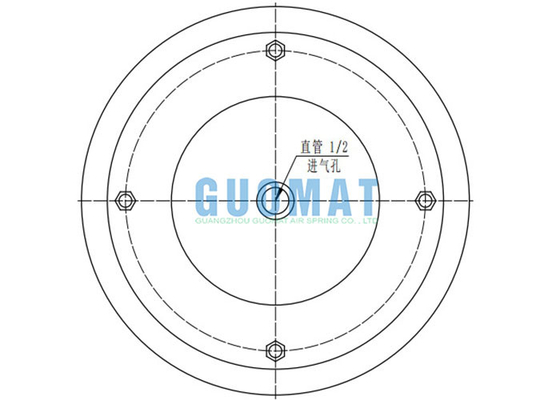

Air Spring 14 1/2''X2 Technical Data
►Top Parameter
Top Cover Plate Diameter: Ø310mm
Air Inlet: G1/2
Screw/Blind Nut: 4 pcs M10X1.5
The Screw Height: 30mm
Screw Center Distance of Top Cover Plate: Ø282.5mm
►Bottom Parameter
Bottom Cover Plate Diameter: Ø310mm
Screw/Blind Nut: 4 pcs M10X1.5
The Screw Height: 30mm
Screw Center Distance of Bottom Cover Plate: Ø282.5mm
►Rubber Bellows
The Rubber Bellows Diameter: Ø365mm
Natural Height: 220mm
Space Requied: Ø400mm
Refer to the OEM Number Below
OEM Firestone Number: W01R584064
OEM Firestone Number: W01-R58-4064
OEM Firestone Number: W01 R58 4064
OEM Firestone Number: WO1R584064
OEM Firestone Number: WO1-R58-4064
OEM Firestone Number: WO1 R58 4064
OEM Contitech Number: FD614-26 DS
OEM Contitech Number: FD 614-26 DS
OEM Norgren Number: M/31142
OEM Norgren Number: M 31142
OEM Norgren Number: M31142
OEM Dunlop Penuride Number: 14 1/2x2
OEM Dunlop Penuride Number: 14'' 1/2x2
OEM Dunlop Springride Number: SP1556
OEM Dunlop Springride Number: SP 1556
OEM Parker Number: 9109061
Our Advantages
Double Convoluted Industrial Air Springs
|
Part Number |
Max.Dia.at 7Bar(mm) |
Min.Height(mm) |
Max.Stroke(mm) |
Design Height(mm) |
Load at Design Height@5Bar(kN) |
|
6X2 |
162mm |
75mm |
115mm |
130mm |
6.5mm |
|
8X2 |
215mm |
75mm |
150mm |
160mm |
10.0mm |
|
10X2 |
265mm |
75mm |
200mm |
170mm |
14.7mm |
|
12X2 |
312mm |
75mm |
225mm |
170mm |
24.3mm |
|
16X2 |
406mm |
75mm |
265mm |
200mm |
45.0mm |
|
4 1/2X2 |
120mm |
70mm |
75mm |
100mm |
3.4mm |

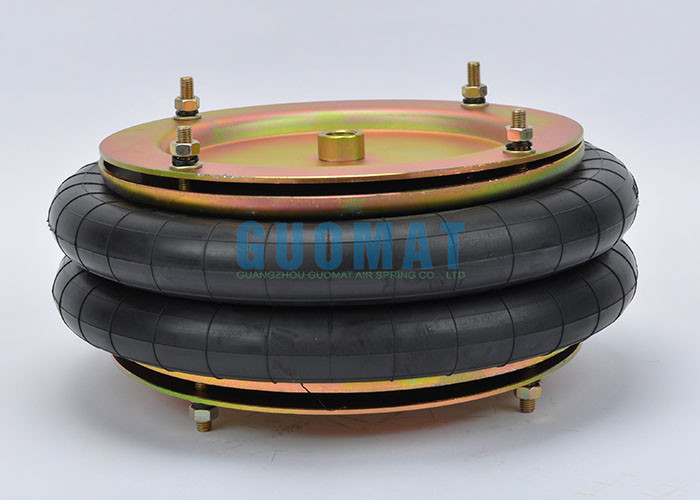

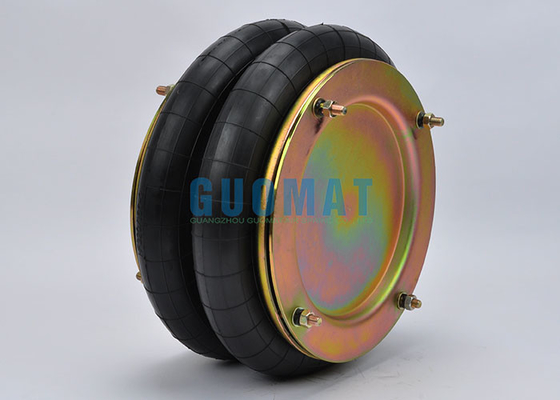

The Real Pictures
