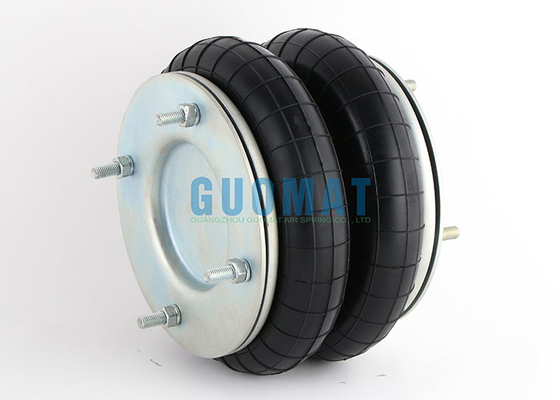

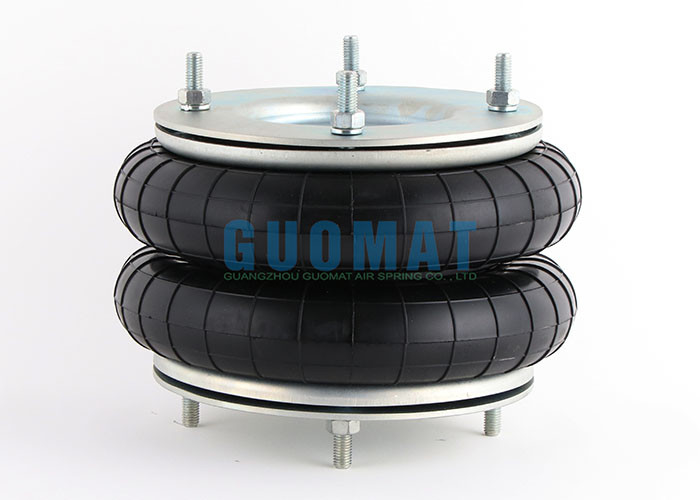

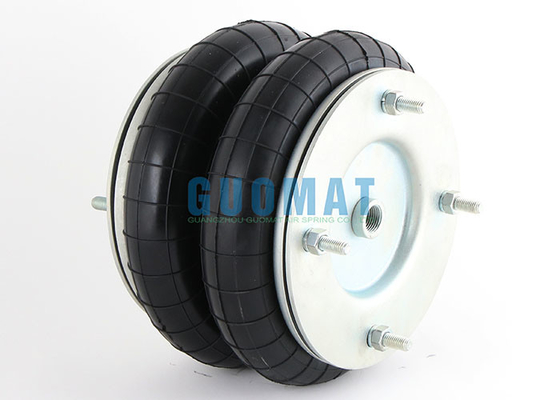

10''X2 Packaging Machinery Suspension Air Spring FD210-22 DS Contitech Rubber Bellows

Name: 10''X2 Packaging Machinery Suspension Air Spring FD210-22 DS Contitech Rubber Bellows
Brand: GUOMAT
SKU: 10X2
Price: 69.9 USD
Availability: InStock
Rating: 4.5 (178 reviews)

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	10X2

Payment & Shipping Terms:

Minimum Order Quantity:	6pcs
Price:	$69.9-199.9/pc
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Style:	Convoluted Type Flange Air Spring	Material:	Steel, Rubber
Warranty:	1 Year Warranty	Quality:	100 % Tested
Screw:	M10x1.5	Use Range:	Industrial Machine
Flange:	With	Spring Type:	2 Convoluted Rubber Bellows
High Light:	10''X2 Suspension Air Spring , Suspension Air Spring With Flange , Industrial Machine Suspension Air Spring

10''X2 Packaging Machinery Suspension Air Spring FD210-22 DS Contitech Rubber Bellows Actuator

Product Description

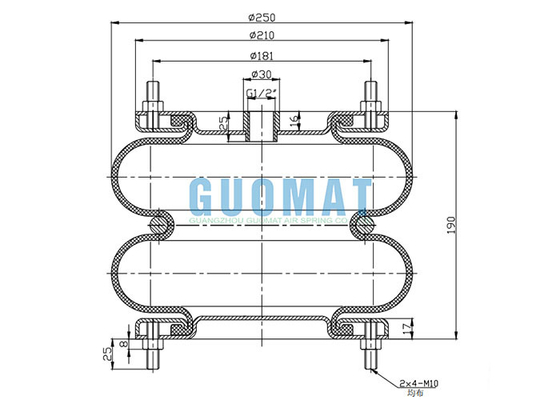

Item	Industrial Air Spring
Material	Rubber+Steel
Work Pressure	≤0.7Mpa
Burst Pressure	≥2.0Mpa
Folding Times	≥ 1 Million Times
Applicable Medium	Water, Air, A Small Amount of Oil
Cover Plate Diameter	210mm
Screw	M10x1.5
Air Inlet	G1/2
Screw Center Distance	181mm
Rubber Bellows Diameter	250mm
Natural Height	190mm
Space Required	295mm

Industrial Air Spring OEM Number

CONTITECH: FD210-22 DS

CONTITECH: FD 210-22 DS

FIRESTONE: W01R584058

FIRESTONE: W01 R58 4058

FIRESTONE: W01-R58-4058

DUNLOP PNEURIDE: 10''X2

DUNLOP PNEURIDE: 10'' X2

DUNLOP SPRINGRIDE: SP1538

DUNLOP SPRINGRIDE: SP 1538

NORGREN: M/31102

NORGREN: M31102

NORGREN: M 31102

PARKER: 9109021

Advantages of Flange Air Springs for Packaging Machines

Cushioning and damping: Flange air springs can help to protect fragile items and prevent damage during the packaging process by absorbing shocks and vibrations.
Easy to adjust: The air pressure in the springs can be easily adjusted to achieve the desired level of cushioning and support, making them highly customizable and versatile.
Low maintenance: Flange air springs require minimal maintenance compared to other types of cushioning systems, which can help to reduce downtime and increase productivity.
Durable: Flange air springs are designed to be durable and long-lasting, so they can withstand the rigors of constant use in a packaging machine.
Compact design: Flange air springs have a compact design, which can help to save space in a packaging machine and allow for more efficient use of available space.

Norgren Flange Air Spring Operating Angle

Part No.	Nominal Ø (inch) x Convolutions	Height (mm)
Part No.	Nominal Ø (inch) x Convolutions	a=5°	a=10°	a=15°	a=20°	a=25°
M/31061	6X1	60-85	65-80	-	-	-
M/31062	6X2	-	90-155	95-150	105-145	110-135
M/31081	8X1	60-105	70-100	-	-	-
M/31082	8X2	-	90-210	100-205	110-200	115-190
M/31101	10X1	60-125	70-115	80-105	-	-
M/31102	10X2	-	95-260	115-250	135-245	155-235
M/31103	10X3	185-390	245-370	280-350	-	-
M/31121	12X1	60-125	75-115	90-105	-	-
M/31122	12X2	-	100-255	11-245	115-235	160-225
M/31123	12X3	200-375	230-340	250-310	-	-
M/31141	14 1/2X1	65-145	85-135	-	-	-
M/31142	14 1/2X2	-	105-300	115-290	135-275	170-260
M/31143	14 1/2X3	280-430	300-390	310-370	-	-
M/31162	16X2	-	125-350	150-340	185-325	225-310
M/31163	16X3	200-510	350-480	370-450	-	-
