| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 8X1 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $69.9-199.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Item Name: | Firestone Industrial Air Spring | Material: | Steel, Rubber |
|---|---|---|---|
| Warranty: | 1 Year Warranty | Quality: | 100 % Tested |
| Cross Number: | W01-R58-4054 | Convolutions: | Single |
| Gas Hole: | G1/2 | Use Range: | Industrial Machine |
| High Light: | W01R584054 Firestone Air Bags,8''X1 Industrial Air Spring,Rubber Bellows Firestone Air Bags |
||
Rubber Bellows 8''X1 Industrial Air Spring Flange Ring W01R584054 Firestone Air Bags
Product Description
|
Item |
Industrial Air Spring/AirBag |
|
Brand |
Guomat/Neutral |
|
Material |
Rubber and Steel |
|
Warranty |
1 Year |
|
MOQ |
10 PCS If We Have Stock |
|
Package |
(1) Bubble Bag And Brown Carton (2) Customer Require Packaging (3) Normal Exported Package |
|
Delivery Time |
3-10 Working Days |
|
Payment |
T/T, L/C, PayPal, Western Union |
|
After Service |
(1) Examination Before Shipment |
|
Main products we sell |
Air Spring,Convoluted Air Spring,Industrial Air Springs,Air Suspension Spring,Air Compressor,Air Valve,Bus Rubber Bellows,Truck & Trailer Air Bags,Cabin Air Shock,Electric Water Pump |
GUOMAT 8X1 Single Convoluted Air Spring OEM Number
Firestone Number W01R584054
Firestone Number W01 R58 4054
Firestone Number W01-R58-4054
Firestone Bellows Number 4054
Firestone Bellows Number WO1R584054
Firestone Bellows Number WO1 R58 4054
Firestone Bellows Number WO1-R58-4054
Dunlop Number 8" x 1 ; 8x1 ; 8X1
Dunlop Number SP1537
Dunlop Number SP 1537
Dunlop Number sp1537
Dunlop Number sp 1537
Contitech Number FS 138-8 DS
Contitech Number FS138-8 DS
Contitech Bellows Number FS138-8DS
Norgren Number M/31081
Norgren Number M31081
Norgren Number M 31081
Parker Number 9109014

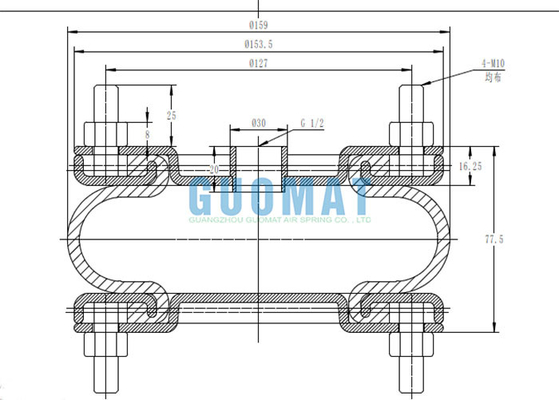

8''X1 Industrial Air Spring Technical Data
Top Cover Plate Diameter : 153.5mm
Bottom Cover Plate Diameter : 153.5mm
Gas Hole / Air inlet : G1/2
Rubber Bellows Diameter :159mm
Top Cover Plate Screw (Nut) Tooth : 4XM10X1.5
Bottom Cover Plate Screw (Nut) Tooth : 4XM10X1.5
Screw Center Distance of Top Cover Plate : 127mm
Screw Center Distance of Bottom Cover Plate : 127mm
Air Spring Height: 77.5mm
Contitech Single Convoluted Air Spring with Flange
|
Part Number |
Model Number |
Min.design Height(in) |
Max.diameter(in) |
Max.Stroke(in) |
Force at 116psi |
Convolutions |
||
|
Min.Height(lb) |
Half Stroke(lb) |
Max.stroke(lb) |
||||||
|
FS 22-3 DI CR |
23/4X1 |
1.97 |
3.15 |
0.79 |
741.87 |
517.06 |
292.25 |
1 |
|
FS 44-5DI CR |
41/2X1 |
1.97 |
4.92 |
1.57 |
1551.18 |
989.16 |
449.62 |
1 |
|
FS 76-7DI CR |
6X1 |
2.17 |
6.89 |
2.17 |
3372.13 |
1955.84 |
1079.08 |
1 |
|
FS 76-7DS CR |
6X1 |
1.97 |
6.89 |
2.17 |
3372.13 |
2158.17 |
1079.08 |
1 |
|
FS 138-8 DS |
8X1 |
1.97 |
9.06 |
3.15 |
5620.22 |
3439.58 |
1933.36 |
1 |
|
FS 210-10 DS |
10X1 |
1.97 |
11.02 |
3.94 |
7598.54 |
5485.34 |
2585.30 |
1 |
|
FS 412-10 DS |
12X1 |
1.97 |
12.99 |
3.94 |
11645.1 |
8610.18 |
4181.45 |
1 |
|
FS 614-13 DS |
14X1 |
1.97 |
15.75 |
4.92 |
17400.21 |
11285.41 |
4541.14 |
1 |
|
FS 816-15 DS |
16X1 |
1.97 |
16.54 |
5.51 |
18164.56 |
13713.34 |
5755.11 |
1 |

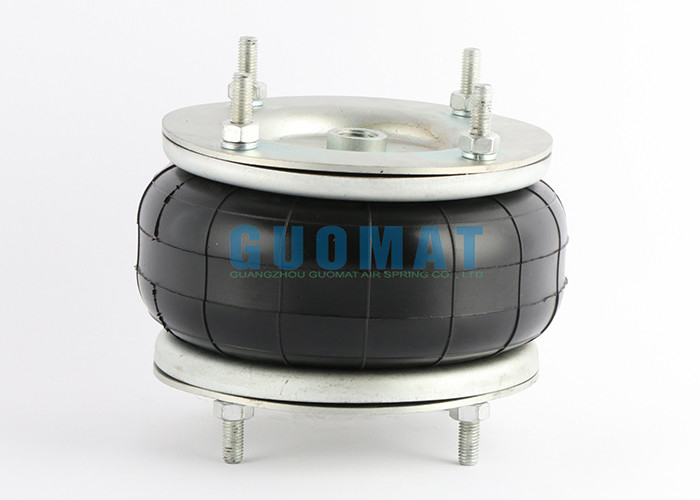

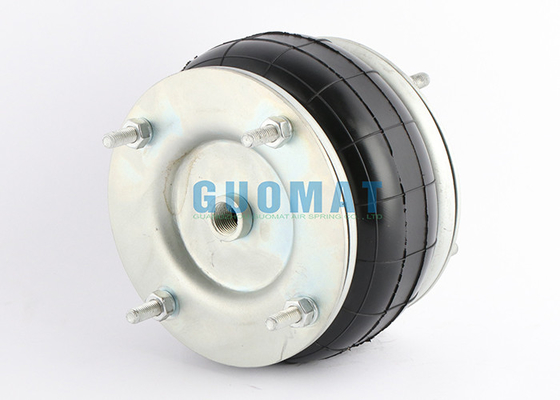

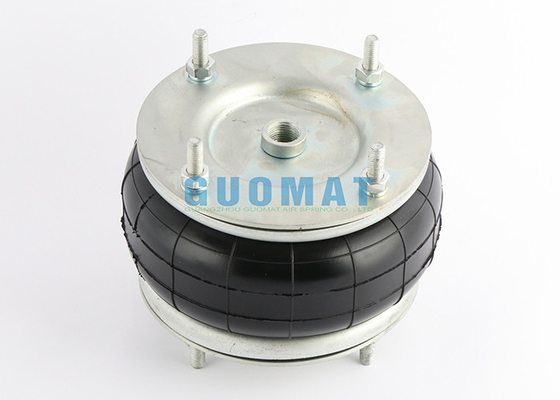

8X1 Single Convoluted Industrial Air Spring Real Pictures
