Rubber Air Bellow Flange Style Industrial Air Spring Double Convoluted For Amusement Equipment

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	LHF200/212-2

Payment & Shipping Terms:

Minimum Order Quantity:	6pcs
Price:	$59.9-69.9/pc
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Product Item:	Industrial Air Spring	Warranty:	12 Months
Material:	Rubber + Steel	MOQ:	10 Pieces
Spring Type:	With Flange Ring	Installation:	Direct Installation
Sample:	Acceptable	Other Name:	Industrial Air Spring With Flange Ring
Highlight:	Flange Style Industrial Air Spring , Double Convoluted Rubber Industrial Air Spring , Industrial Air Spring With Flange Ring

Double Convoluted Rubber Air Bellow Flange Style Industrial Air Spring For Large Amusement Equipment

Product Description

Flanged air spring is a type of air spring that features a flange at either end of the spring. This flange acts as a mounting point, allowing the air spring to be attached firmly to other components in a machine or piece of equipment.

Model	LHF200/212-2
Main Material	Natural Rubber
Warranty	1 Year
Number of Convolutions	2
Connection Method	Flange Connection
Color	Black
Package	Strong Carton

Flange Air Spring Technical Data

Design Nominal Diameter: 200mm

Outer Diameter: 280mm

Flange Outer Diameter: 264mm

Design Height: 212mm

Convolutions: 2

The Screw(Nut): 10XM10

Applicable Medium		Water, Gas
Working Pressure	Mpa	≤0.7
Burst Pressure	Mpa	≥ 500,000 times
Fatigue Test	Times	≥500,000 times
Minimum Compression Height	mm	90
Safe Extended Height	mm	235

LHF Type Industrial Air Spring

LHF100/166-2	LHF100/166-2	LHF100/238-3	LHF150/212-2	LHF150/304-3
LHF580/384-3	LHF200/304-3	LHF230/120-1	LHF230/218-2	LHF230/316-3
LHF250/255-2	LHF250/218-2	LHF250/316-3	LHF256/92-1	LHF256/166-2
LHF280/218-2	LHF280/316-3	LHF300/218-2	LHF300/316-3	LHF320/186-2
LHF320/240-2	LHF320/350-3	LHF340/226-2	LHF400/218-2	LHF400/316-3
LHF440/218-2	LHF440/316-3	LHF500/220-2	LHF500/320-3	LHF580/262-2

Advantages of Industrial Air Spring

Flexibility: Industrial air springs are made of a flexible elastomer rubber body with nylon fabric , which allows for easy adjustment to different loads and applications. The operating height of isolation air springs , for example, can be adjusted via air pressure regardless of the load.
Comfort: Air suspension provides an extra level of comfort by varying the air pressure inside the spring , which can change the stiffness and height of the suspension system.
Vibration and noise reduction: Air springs are effective at reducing vibrations, noise, and shocks. By isolating the equipment from the ground, air springs can reduce unwanted vibrations that can cause damage or discomfort.
Durability: Industrial air springs are designed to last longer than traditional suspension systems. They are resistant to wear and tear, and they require less maintenance.
Higher productivity: Air springs can increase productivity in industrial applications by reducing downtime and maintenance costs.

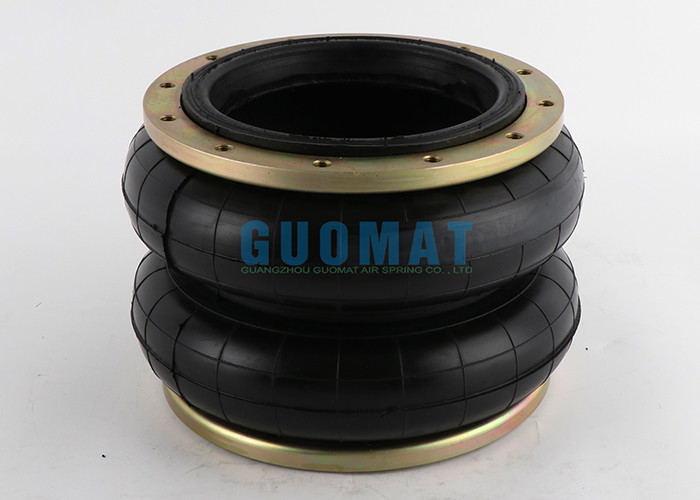

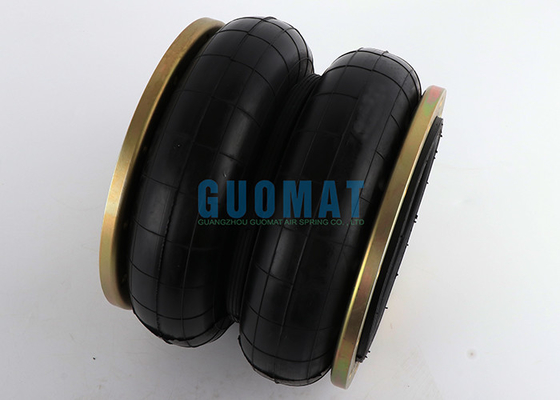

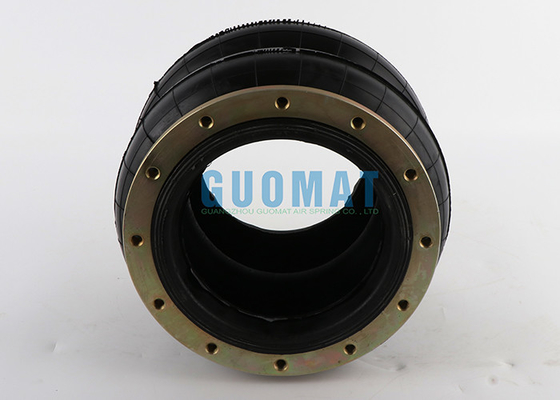

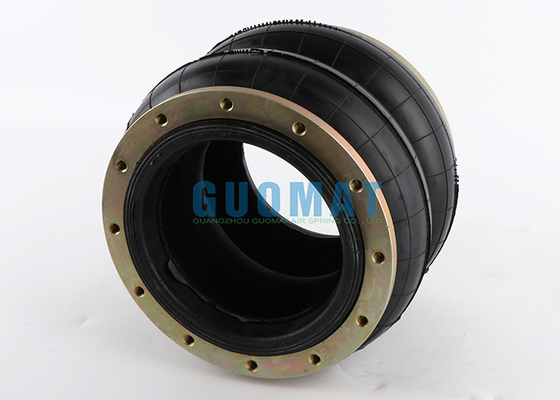

The Real Pictures of LHF200/212-2 Industrial Air Spring
