| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | LHF500/220-2 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $59.9-69.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Warranty: | 12 Months | Material: | Rubber + Steel |
|---|---|---|---|
| MOQ: | 10 Pieces | Installation: | Direct Installation |
| Brand: | Neutral Or Customized | Pressure Ability: | 0.2-0.8 Mpa |
| Application: | For Industrial Machine | Packing Size: | 24*24*24(cm) |
| High Light: | LHF500/220-2 Industrial Air Spring,220mm Height Industrial Air Spring,0.8Mpa Industrial Air Spring |
||
LHF500/220-2 Industrial Air Spring Flange Ring 220mm Design Height Rubber Air Bellows China
Product Description
|
Model No. |
LHF500/220-2 |
|
Main Material |
Natural Rubber |
|
Warranty |
1 Year |
|
Number of Convolutions |
2 |
|
Connection Method |
Flange Connection |
|
Color |
Black |
|
Package |
Strong Carton |
GUOMAT: LHF500/220-2
GUOMAT: LHF 500/220-2
GUOMAT: LHF500220-2
GUOMAT: LHF 500220-2
LHF500/220-2 Double Convoluted Industrial Air Spring Technical Data
Number of Convolutions: 2
Design Path: 500mm
Maximum Outer Diameter: 580mm
Front Outer Diameter: 508mm
Design Height: 220mm
Full Stroke: 92-252
Effective Area: 1963.5cm2
Bearing Capacity (0.4-0.7Mpa): 7854-13744
Flange: With
Double Convoluted LHF Series Flange Air Spring Bellow
|
Model |
Convolutions |
Design Path (mm) |
Max. outer diameter (mm) |
Front outer diameter (mm) |
design height (mm) |
full stroke (mm) |
Effective area(cm2) |
Bearing capacity (0.4-0.7Mpa) |
Number of flange Assemblies |
|||||
|
D1(mm) |
D2(mm) |
D3(mm) |
Ø(mm) |
H(mm) |
N-Ø |
|||||||||
|
LHF100/166-2 |
2 |
100 |
160 |
112 |
176 |
74-250 |
78.5 |
314-550 |
126 |
162 |
89 |
114 |
17 |
6-Ø 10 |
|
LHF150/212-2 |
2 |
150 |
230 |
158 |
222 |
90-250 |
176.7 |
707-1237 |
170 |
214 |
134 |
159 |
20 |
8-Ø 10 |
|
LHF200/212-2 |
2 |
200 |
280 |
208 |
224 |
90-250 |
314.2 |
1257-2199 |
220 |
264 |
184 |
209 |
20 |
10-Ø 10 |
|
LHF230/218-2 |
2 |
230 |
310 |
238 |
224 |
90-260 |
415.5 |
1662-2908 |
250 |
294 |
214 |
239 |
20 |
12-Ø 10 |
|
LHF250/255-2 |
2 |
250 |
350 |
260 |
255 |
100-305 |
490.9 |
1964-3436 |
270 |
314 |
234 |
259 |
20 |
12-Ø 10 |
|
LHF250/218-2 |
2 |
250 |
330 |
258 |
224 |
90-260 |
490.9 |
1964-3436 |
270 |
314 |
234 |
259 |
20 |
12-Ø 10 |
|
LHF256/166-2 |
2 |
256 |
310 |
210 |
166 |
74-240 |
514.7 |
2059-3603 |
232 |
260 |
186 |
212 |
14 |
8-Ø 11 |
|
LHF280/218-2 |
2 |
280 |
360 |
288 |
224 |
90-260 |
615.8 |
2463-4310 |
300 |
344 |
264 |
289 |
20 |
12-Ø 10 |
|
LHF300/218-2 |
2 |
300 |
380 |
308 |
226 |
90-270 |
706.9 |
2828-4948 |
320 |
364 |
284 |
309 |
20 |
16-Ø 10 |
|
LHF320/186-2 |
2 |
320 |
380 |
260 |
186 |
80-280 |
804.2 |
3217-5629 |
283 |
316 |
236 |
262 |
19 |
12-Ø 11 |
|
LHF340/226-2 |
2 |
340 |
420 |
340 |
226 |
90-270 |
908.0 |
3632-6356 |
364 |
388 |
316 |
344 |
19 |
12-Ø 11 |
|
LHF400/218-2 |
2 |
400 |
480 |
408 |
228 |
90-270 |
1256.6 |
5026-8796 |
417 |
4464 |
384 |
409 |
20 |
20-Ø 10 |
|
LHF440/218-2 |
2 |
440 |
520 |
448 |
218 |
90-248 |
1520.5 |
6082-10644 |
459 |
502 |
422 |
452 |
20 |
24-Ø 10 |
|
LHF580/262-2 |
2 |
580 |
680 |
588 |
262 |
92-308 |
2642.1 |
10568-18495 |
597 |
6402 |
560 |
590 |
20 |
32-Ø 10 |

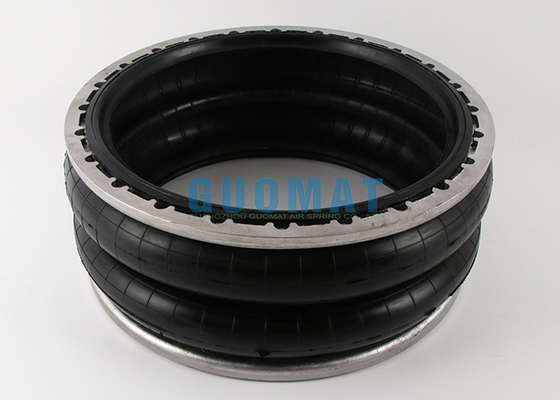

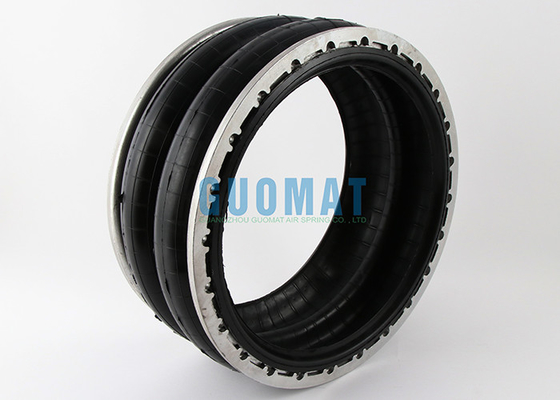

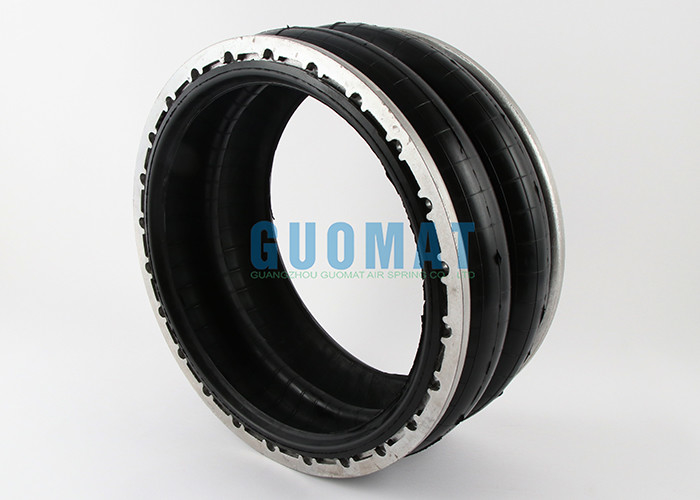

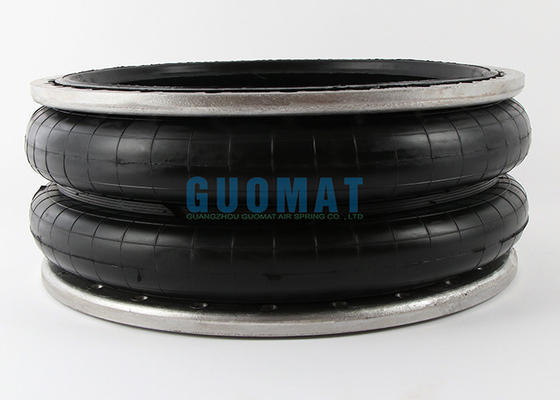

The Real Pictures of LHF500/220-2 Rubber Industrial Air Bags
