| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 1B1209-D |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $49.9-59.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Type: | Single Convoluted | Warranty: | 1 Year Warranty |
|---|---|---|---|
| Quality: | 100 % Tested | Material: | Rubber Bellow And Aluminum Cover |
| Weight: | 2KG | Air Inlet: | G1/4 |
| Application: | Industrial Equipment | Contitech: | FS120-9 |
| High Light: | Single Vibration Industrial Air Spring,FS120-9 Industrial Air Spring,Crimp Bead Plate Industrial Air Spring |
||

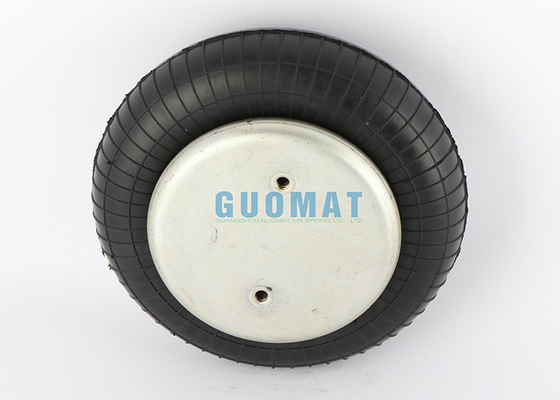

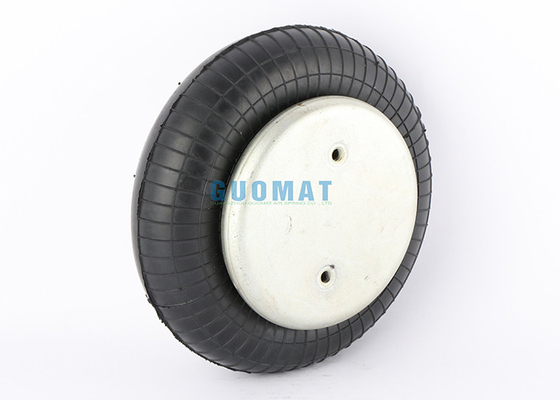

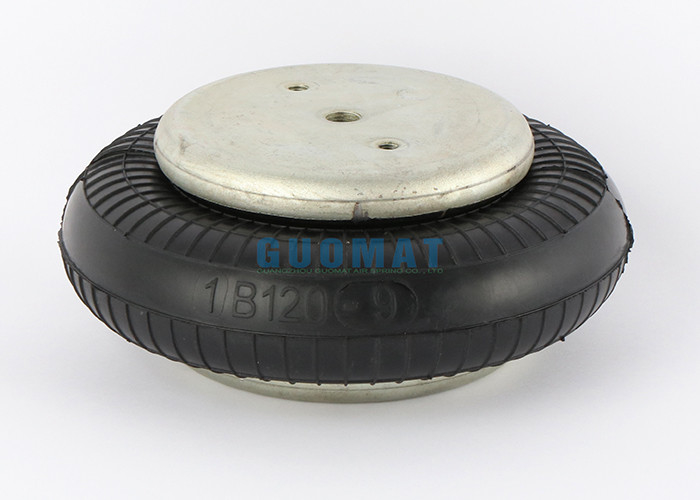

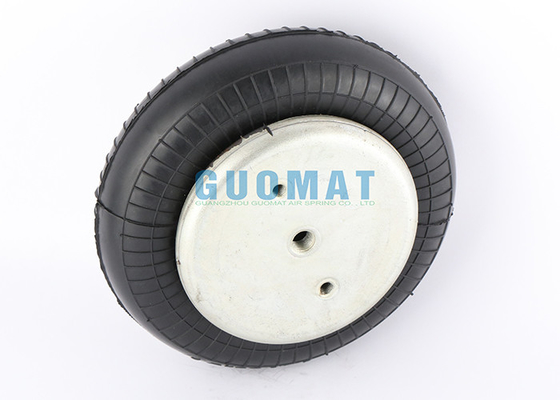

FS120-9 CI G1/4 Continental Single Vibration Industrial Air Spring With Crimp Bead Plate
Product Description
GUOMAT Model: 1B1209-D
Product Category: Industrial Equipment Shock Absorption
Application: Pneumatic tires for hot stamping machines, pneumatic tires for belt lifting tensioners, pneumatic tires for sealing machines, airbags for environmental protection equipment, etc...
Loading Range: 50-1000KG
Original Equipment Manufacturer Number
|
Firestone |
W01-M58-6165,W01M586165,W01 M58 6165 |
|
Firestone |
WO1-M58-6165,WO1M586165,WO1 M58 6165 |
|
Contitech |
FS120-9,FS 120-9,FS120-9 CI G1/4 |
|
Dunlop(FR) |
S08101,8"x1,8x1,8X1 |
|
Bosch |
822419003 |
|
Festo |
EB-215-80 |
|
Norgren |
PM/31081,PM31081,PM 31081,8"x1,8x1,8X1 |
|
Weforma |
WBE300-E1 |
|
Airtech |
140293 |
|
Megatech |
1S12 |
GUOMAT Part No. 1B1209-D Rubber Air Bellow Technical Data
Top Crimp Bead Plate Diameter: 135mm
Air Inlet: G1/4, Center
Threaded Hole: 2XM8X1.25
Center Distance Between Threaded Holes: 70mm
Bottom Crimp Bead Plate Diameter: 135mm
Max.Height: 115mm
Min.Height: 50mm
Contitech Single Convolution Bellows
|
Model |
Air Inlet |
Min.DH (in) |
Max.Dia.(in) |
Max. Recommended Stroke (in) |
Max. Stroke (in)
|
Force at P=116psi |
||
|
Min.Height (lb) |
Half Stroke (lb) |
Max.Stroke (lb) |
||||||
|
FS 40-6 |
1/8NPT |
1.97 |
5.71 |
1.97 |
2.36 |
1551.18 |
1169.01 |
539.54 |
|
FS 50-5 |
1/4NPT |
2.01 |
5.91 |
1.34 |
1.73 |
2023.28 |
1213.97 |
494.58 |
|
FS 70-7 |
1/4NPT |
2.01 |
6.50 |
2.13 |
2.52 |
2225.61 |
1686.07 |
1169.01 |
|
FS 100-10 |
3/4NPT |
2.01 |
8.27 |
3.11 |
3.70 |
3304.69 |
2472.90 |
359.69 |
|
FS 120-10 |
3/4NPT |
2.01 |
9.09 |
3.11 |
3.90 |
4383.77 |
3372.13 |
1034.12 |
|
FS 120-12 |
3/4NPT |
2.01 |
9.25 |
4.21 |
4.69 |
4203.93 |
3574.46 |
1618.62 |
|
FS 200-10 |
3/4NPT |
2.01 |
9.84 |
2.91 |
3.50 |
5350.45 |
3934.16 |
2045.76 |
|
FS 330-11 |
3/4NPT |
2.01 |
12.80 |
3.50 |
3.90 |
9869.11 |
8250.49 |
5035.72 |
|
FS 330-14 |
3/4NPT |
2.01 |
15.94 |
4.29 |
5.28 |
10633.46 |
8497.78 |
2922.52 |
|
FS 530-11 |
3/4NPT |
2.48 |
17.72 |
4.02 |
4.61 |
15376.93 |
11914.87 |
4676.03 |
|
FS 530-14 |
3/4NPT |
2.48 |
20.87 |
3.43 |
4.21 |
15646.70 |
13533.5 |
7913.27 |
|
FS 960-12 |
3/4NPT |
2.48 |
17.72 |
4.02 |
4.61 |
22098.71 |
17580.06 |
9082.28 |
|
FS 1330-11 |
3/4NPT |
2.48 |
20.87 |
3.43 |
4.21 |
31832.94 |
27381.72 |
14230.40 |
1B1209 Replace FS120-9 Contitech Industrial Air Spring
