Firestone Style 110 Industrial Air Spring W01-358-7451 Press Rubber Air Bellow

Name: Firestone Style 110 Industrial Air Spring W01-358-7451 Press Rubber Air Bellow
Brand: GUOMAT
SKU: 1B7451
Price: 49.9 USD
Availability: InStock
Rating: 5 (117 reviews)

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	1B7451

Payment & Shipping Terms:

Minimum Order Quantity:	6pcs
Price:	$49.9-59.9/pc
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Warranty:	1 Year Warranty	Quality:	100 % Tested
Material:	Rubber Bellow And Aluminum Cover	Application:	Industrial Equipment
Type:	Single Convoluted Type	OEM:	W01-358-7451
Air Inlet Type:	NPTF	Packing Size:	242424(cm)
High Light:	Firestone Style 110 Industrial Air Spring , W01-358-7451 Industrial Air Spring

Firestone Style 110 Industrial Air Spring Supplier W01-358-7451 Press Rubber Air Bellow

Product Description

Item	Firestone Industrial Bellows Actuator
Brand	GUOMAT
Model No.	1B7451
Material	Rubber+Steel
Warranty	12 Year
Delivery Time	3-8 working days
Trade Terms	EXW,FOB,CNF,CIF...
Packing Size	242424(cm)

Cross Reference Number

FIRESTONE W013587451

FIRESTONE W01 358 7451

FIRESTONE W01-358-7451

FIRESTONE WO13587451

FIRESTONE WO1 358 7451

FIRESTONE WO1-358-7451

FIRESTONE BELLOW 110

GUOMAT 1B7451 Industrial Air Spring Technical Data

Top Bead Plate Diameter : 115mm / 4.5 inch

Bottom Bead Plate Diameter : 115mm / 4.5 inch

Air Inlet / Gas Hole

Air Hole : 1/4 NPTF ; Middle Hole

Top Cover Plate Screw(Nut)Tooth : 2X3/8-16UNC

Bottom Cover Plate Screw(Nut)Tooth : 2X3/8-16UNC

Screw Center Distance Of Top Cover Plate:44.5mm / 1.75 inch

Screw Center Distance Of Bottom Cover Plate:44.5mm / 1.75 inch

Rubber Bellow MAX Diameter:205mm / 8.1 inch

The Working Stroke:MAX 140mm to MIN 50mm

Maximum Height : 140mm / 5.5 inch

Minimum Height : 50mm / 1.97 inch

Compression Height :90mm / 3.5 inch

Firestone Style 110 Air Spring Assembly

W01-358-7451 ; W013587451 ; W01 358 7451 ; WO1-358-7451 ; WO13587451 ; WO1 358 7451

W01-358-7484 ; W013587484 ; W01 358 7484 ; WO1-358-7484 ; WO13587484 ; WO1 358 7484

W01-358-0112 ; W013580112 ; W01 358 0112 ; WO1-358-0112 ; WO13580112 ; WO1 358 0112

W01-358-0100 ; W013580100 ; W01 358 0100 ; WO1-358-0100 ; WO13580100 ; WO1 358 0100

Benefits of Installing Air Springs in Web Tensioning Device
Improved control and precision: Air springs provide a more precise and consistent level of tension, allowing for more accurate control over the web tension.

Reduced vibration and noise: Air springs absorb vibrations, reducing the amount of noise and vibration in the system and improving overall performance.
Increased durability and lifespan: Air springs are durable and can withstand the wear and tear of regular use, reducing maintenance costs and extending the lifespan of the tensioning system.
Improved safety: Air springs can help to prevent over-tensioning, which can pose a safety risk to workers and equipment.
Flexibility in installation: Air springs can be easily installed in a variety of tensioning systems, providing a versatile solution for a range of applications.

Overall, installing air springs in web tensioning devices can provide a range of benefits that can improve performance, reduce maintenance costs, and enhance safety.

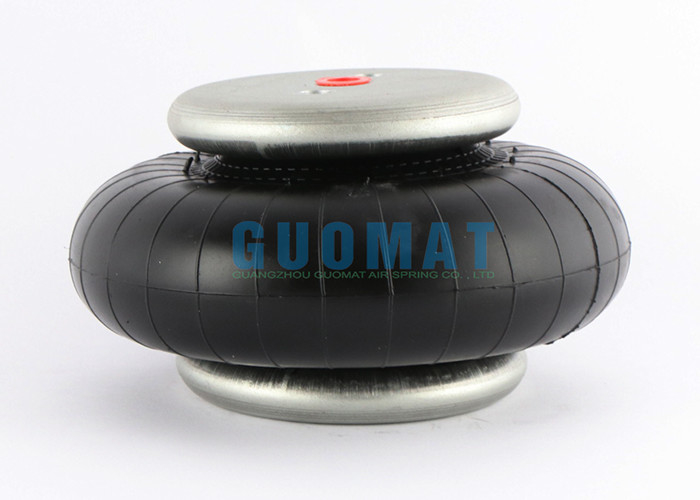

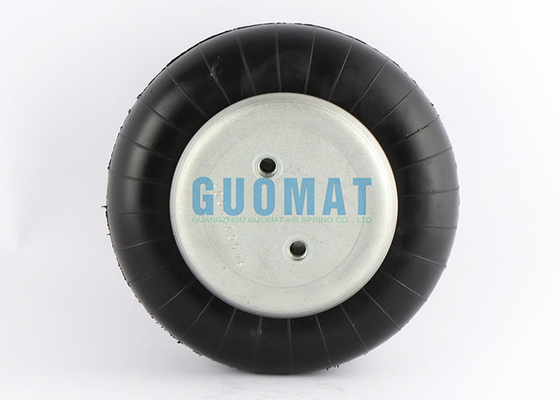

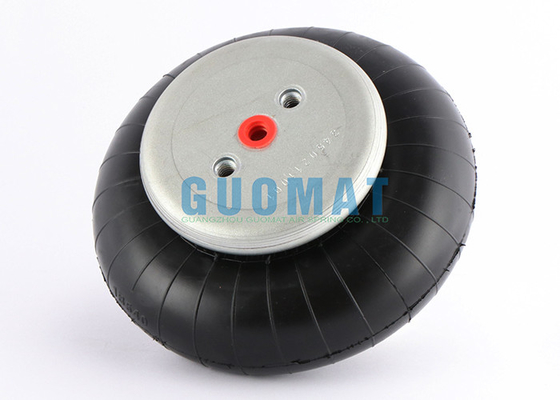

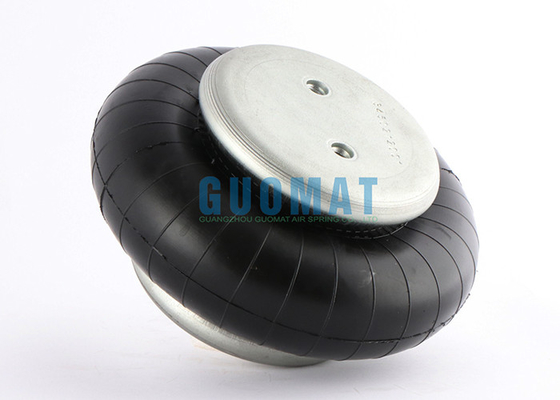

The Real Pictures of W01-358-7451 Firestone Rubber Air Bellow

Firestone Style 110 Industrial Air Spring W01-358-7451 Press Rubber Air Bellow 0
