| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 3H480312 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $79.9-89.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Material: | Rubber | Warranty: | 1 Year Warranty |
|---|---|---|---|
| Quality: | 100 % Tested | Type: | With Flange Ring |
| Brand: | GUOMAT/Neutral | Package: | Standard Packing Or Customized |
| Natural Height: | 312mm | The Screw: | M10 |
| High Light: | Flange Connection Air Suspension Spring,Air Suspension Spring 3H480312,Triple Convoluted Air Suspension Spring |
||
Flange Connection Air Suspension Spring 3H480312 Triple Convoluted Rubber Air Bellows Suppliers
Product Description
Manufacturer: GUOMAT
Manufacturer Model: 3H480312
Nominal Diameter: Ø400mm
Minimum Compression Height: 122mm
Maximum Height: 360mm
The Stroke: 238mm
Natural Height: 312mm
Cover Plate Diameter: Ø476mm
Rubber Bellows Max. Diameter: Ø510mm (At 0.7Mpa)
Number of Screw: 20 pieces
Screw/Blind Nut: M10
Center Distance Between Screws: Ø438mm
Payment: L/C,T/T,West Union,Paypal
Shipment: By Air;By Sea;By Express(DHL,FedEx,UPS, EMS,TNT)
Delivery Time: About 3-7 working days after we received your payment.According to the purchase quantity.
The Role of Flange Connection Air Spring
Flange connection air springs are used in various industrial applications. They play a significant role in valves and piping systems. The flange connection provides a secure connection between the air spring and the valve or piping system. This ensures that the valve or piping system operates optimally and reduces the risk of leaks and other issues. Flange connection air springs can also act as vibration isolators, which helps in reducing the vibrations generated by machinery. This, in turn, improves the overall efficiency and reliability of the machinery.
Our Advantage
1.We focus on the production of air spring has been 15 years which is Chinese the largest manufacturer of air springs.
2. Our products have a one-year warranty. If you have any questions during use, you can contact us at any time.
3. We have many models in stock, and the delivery time is fast.
4. A variety of payment methods as you choose
5. There are many types of transportation methods, and we can choose the appropriate transportation method for you according to your needs.
Firestone Industrial Air Spring
| Firestone Style | Firestone No. | Firestone Style | Firestone No. |
| Style 119 | W01-358-7478 | Style 121 | W01-358-7272 |
| Style 119 | W01-358-0119 | Style 126 | W01-358-7727 |
| Style 119 | W01-358-7477 | Style 126 | W01-358-7726 |
| Style 121 | W01-358-7197 | Style 126 | W01-358-1026 |
| Style 121 | W01-358-5135 | Style 138-1.5 | W01-358-7737 |
| Style 138.1.5 | W01-358-7734 | Style 138-1.5 | W01-358-0147 |
| Style 148-2 | W01-358-9601 | Style 148-1 | W01-358-1021 |
| Style 268 | W01-358-7025 | Style 268 | W01-358-7047 |
| Style 268 | W01-358-7035 | Style 268 | W01-358-0030 |
| Style 268 | W01-358-7030 | Style 268 | W01-358-0319 |
| Style 255-1.5 | W01-358-6955 | Style 255-1.5 | W01-358-6956 |
| Style 255-1.5 | W01-358-0048 | Style 255.1.5 | W01-358-6833 |
| Style 224 | W01-358-3400 | Style 224 | W01-358-3403 |
| Style 224 | W01-358-3407 | Style 26 | W01-358-7325 |

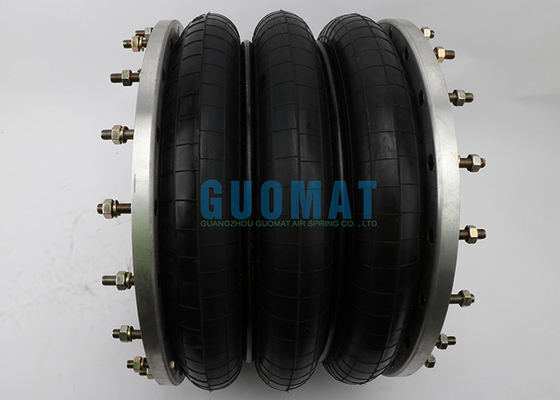

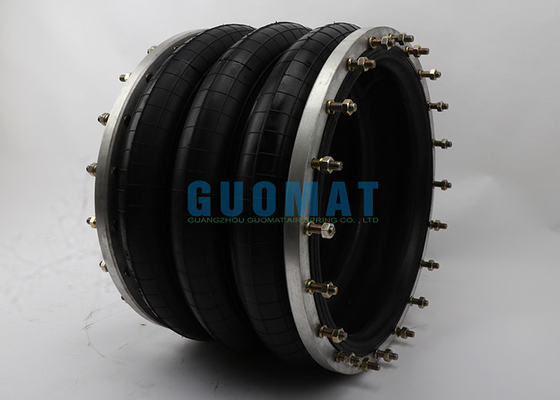

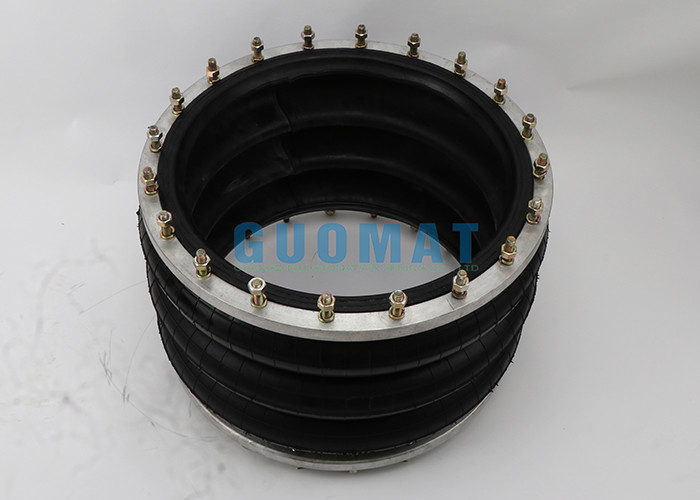

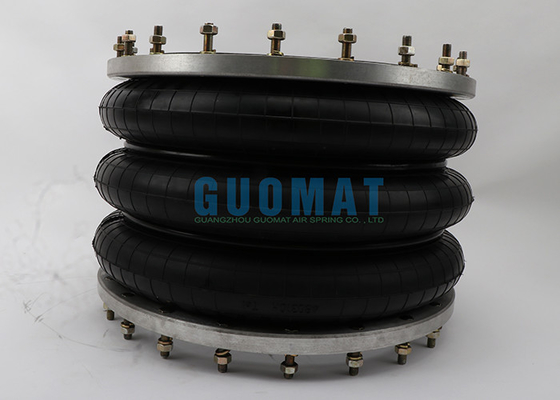

3H480312 GUOMAT Industrial Flange Air Bag Real Pictures
