| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 1B5330 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $49.9-59.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Type: | Single Convoluted Air Spring | Warranty: | 1 Year Warranty |
|---|---|---|---|
| Quality: | 100 % Tested | Material: | Rubber Bellow And Aluminum Cover |
| OEM Number: | FS 330-11 | The Stroke: | 55-160mm |
| Net Weight: | 1.5KG | ||
| High Light: | Reference FS330-11 Single Convolution Air Actuator,Rubber Single Convolution Air Actuator |
||
W01-358-7008 Firestone Single Convoluted Rubber Air Spring 1B12-300/313 Goodear Air Bellow
Product Description
GUOMAT 1B5330 Reference Firestone W01-358-7008, with excellent workmanship and high quality materials, one year warranty.
Industrial air spring is a type of pneumatic device that is used to provide support and cushioning in a variety of industrial applications. It consists of a flexible, airtight chamber or bag that is filled with compressed air, which allows it to compress and expand as needed to absorb shocks and vibrations.
Firestone Manufacturer Number: W01-358-7008
Firestone Manufacturer Number: W013587008
Firestone Manufacturer Number: W01 358 7008
Firestone Manufacturer Number: WO1-358-7008
Firestone Manufacturer Number: WO13587008
Firestone Manufacturer Number: WO1 358 7008
Contitech Manufacturer Number: FS 330-11 474
Contitech Manufacturer Number: FS330-11 474
Contitech Manufacturer Number: FS 33011 474
Goodyear Manufacturer Number: 1B12-300
Goodyear Manufacturer Number: 1B12-313
Goodyear Manufacturer Number: 1B 12-300
Goodyear Manufacturer Number: 1B 12-313
Triangle Manufacturer Number: 6374
Triangle Manufacturer Number: 4474
Holland(Neway): 90557226
GUOMAT 1B5330 AIRSTROKE ACTUATOR
Maximum Height (mm): 160
Minimum Height (mm): 55
Compressed Height: 105
Bead Plate Diameter (mm): 231
Blind Nut: 3/8-16UNC
Blind Nut Centers (mm): 157.5
Number of Blind Nuts on the Top Bead Plate: 2 pcs
Number of Blind Nuts on the Bottom Bead Plate: 2 pcs
Air Inlet: 1/4NPTF
Port Offset from Blind Nut Centerline (mm): 73
Firestone Style19 Rubber Air Spring
|
W01-358-7008 |
Blind Nuts,1/4NPT |
|
W01-358-7009 |
Blind Nuts,1/4NPT,Bumper |
|
W01-358-7011 |
Blind Nuts,3/4NPT |
|
W01-358-7012 |
Blind Nuts,3/4NPT,Bumper |
|
W01-358-7023 |
Countersunk Steel Bead Rings,1 5/8 Bolts,Nuts,Washers |
|
W01-358-0134 |
Rubber Bellows Only |
Advantages of GUOMAT Products
1. Excellent material
2. Effective impact
3. In-situ installation
4. Comfortable and stable
5. Long life
6. Eliminate abnormal noise
7. Competitive factory price
8. In stock
Firestone Assembly Number to GUOMAT
|
FIRESTONE |
GUOMAT |
FIRESTONE |
GUOMAT |
|
W01-M58-6165 |
1B6165 |
W01-358-6900 |
2B6900 |
|
W01-358-7731 |
1B7731 |
W01-358-6910 |
2B6910 |
|
W01-M58-6374 |
1B6374 |
W01-M58-7892 |
2B7892 |
|
W01-358-7009 |
1B7009 |
W01-358-5900 |
2B5900 |
|
W01-358-7451 |
1B7451 |
W01-358-7400 |
2B7400 |
|
W01-358-6923 |
2B6923 |
W01-358-7405 |
2B7405 |
|
W01-358-6884 |
2B6884 |
W01-358-7410 |
2B7410 |

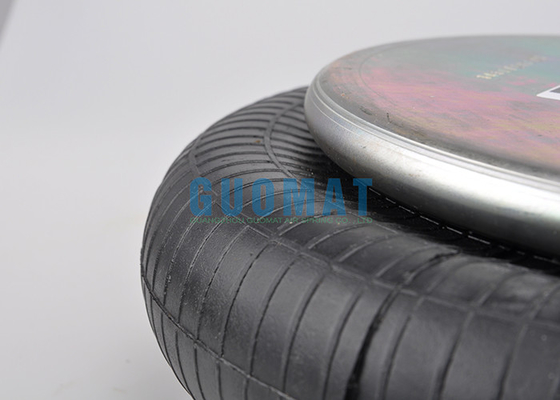

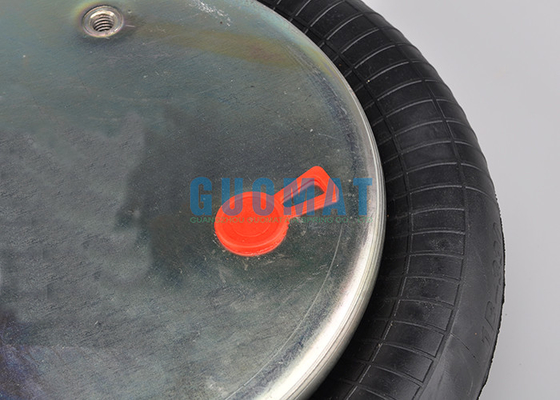

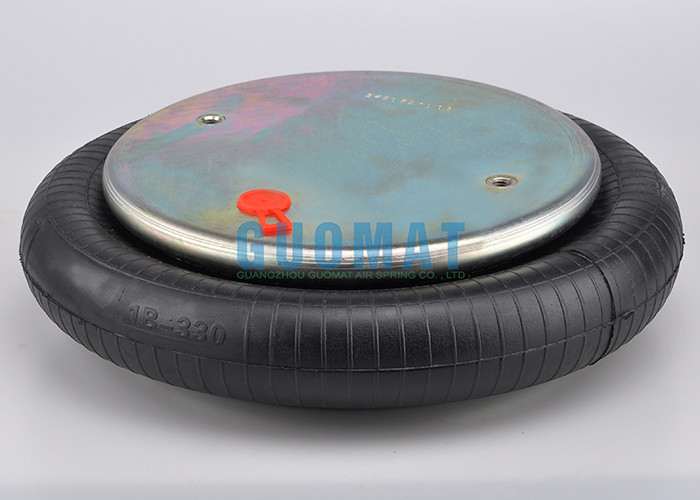

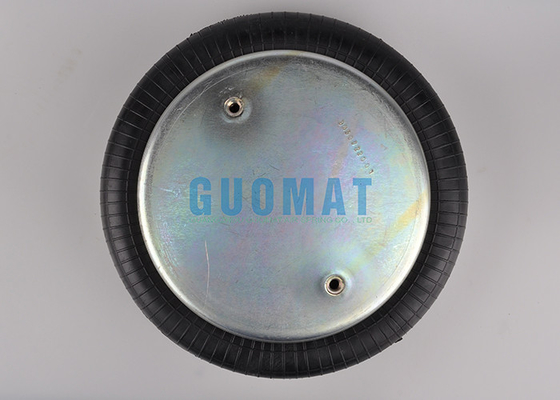

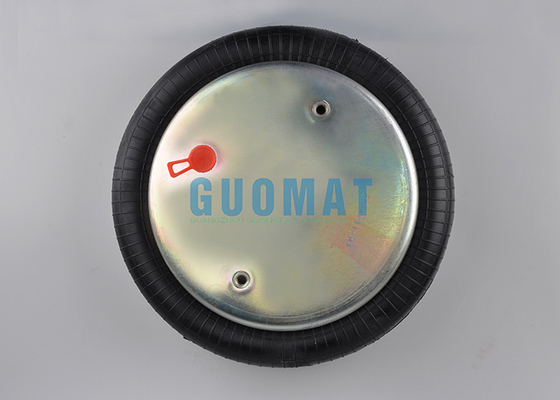

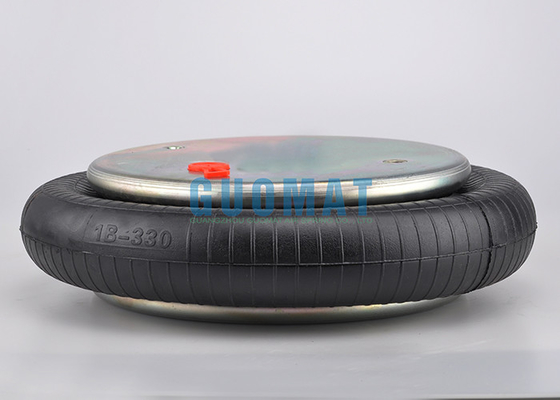

The Real Pictures of 1B5330 Single Convoluted Air Spring
