| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 3B6386 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $69.9-79.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Item Name: | Goodyear Air Spring | Warranty: | 12 Months |
|---|---|---|---|
| Material: | Rubber + Iron | Type: | Triple Convoluted Air Spring |
| Application: | For Industrial Machine | MOQ: | 10 Pieces |
| Brand: | GUOMAT | Other Name: | Rubber Damper |
| High Light: | 381mm Height Triple Convoluted Air Spring,Pneumatic Bellows Triple Convoluted Air Spring |
||
GUOMAT Pneumatic Bellows Actuators 381mm Height Triple Convoluted Air Spring For Slurry Starch Vibrating Screen
Product Description
|
Item |
Air Spring/Shock Absorber Spring/Air Bellows |
|
Brand |
GUOMAT/Neutral |
|
Material |
Rubber And Steel |
|
Warranty |
1 Year |
|
MOQ |
1 PCS If We Have Stock |
|
Package |
(1) Bubble Bag And Brown Carton (2) Customer Require Packaging (3) Normal Exported Package |
|
Delivery Time |
3-8 Working Days |
|
Payment |
T/T, L/C, PayPal, Western Union |
|
After Service |
(1) Examination Before Shipment |
|
Main products we sell |
Air Spring,Convoluted Air Spring,Industrial Air Springs,Air Suspension Spring,Air Compressor,Air Valve,Bus Rubber Bellows,Truck & Trailer Air Bags,Cabin Air Shock,Electric Water Pump |
Technical Data
Cover Plate Diameter: 289mm
Threaded Hole: 3/8-16UNC
Number of Threaded Hole on the Top Cover Plate:4 Pieces
Number of Threaded Hole on the Bottom Cover Plate:4 Pieces
Center Distance Between Threaded Holes: 159mm
Air Inlet: 3/4NPT
Height: 381mm
Rubber Bellow Diameter: 353mm
The Role of Air Spring in Slurry Starch Vibrating Screen
The air spring in a slurry starch vibrating screen serves as a suspension system for the screen frame. It helps to minimize the effect of vibrations generated by the exciter on the surrounding environment and provides a stable foundation for the frame, allowing it to move in a controlled manner. The air spring also helps to isolate the screen frame from external forces, resulting in improved accuracy and efficiency of the screening process. In summary, the air spring plays a crucial role in maintaining the stability and accuracy of the slurry starch vibrating screen.
GUOMAT 3B7994 Refer Number: Firestone W01-358-7994,Contitech FT330-29 546,Contitech 64572,Goodyear 3B12-328
GUOMAT 3B7995 Refer Number: Firestone W01-358-7995/38,Contitech FT330-29 547,Goodyear 3B12-329
GUOMAT 3B7996 Refer Number: Firestone W01-358-7996/38,Contitech FT330-29 520,Goodyear 3B12-335
GUOMAT 3B8006 Refer Number: Firestone W01-358-8006,Contitech FT330-29 430,Goodyear 3B12-304
GUOMAT 3B8008 Refer Number: Firestone W01-358-8008,Contitech FT330-29 431,Goodyear 3B12-300
GUOMAT 3B8010 Refer Number: Firestone W01-358-8010,Contitech FT330-29 432,Goodyear 3B12-301
GUOMAT 3B8016 Refer Number: Firestone W01-358-8016,Contitech FT330-29 433
GUOMAT 3B8025 Refer Number: Firestone W01-358-8025,Contitech FT330-29 469,Goodyear 3B12-300
GUOMAT 3B8027 Refer Number: Firestone W01-358-8027/38,Contitech FT330-29 466,Goodyear 3B12-310
GUOMAT 3B8030 Refer Number: Firestone W01-358-8030/38,Contitech FT330-29 498,Goodyear 3B12-304
GUOMAT 3B5310 Refer Number: Contitech FT 412-323,Goodyear C2ECH,Dunlop Pneuride 12X3
GUOMAT 3B5330 Refer Number: Contitech FT210-32,Dunlop SsP1539(10X3)
GUOMAT 3B7808 Refer Number: Firestone W01-358-7808/313,Contitech FT330-22 364,Goodyear 2B12-313

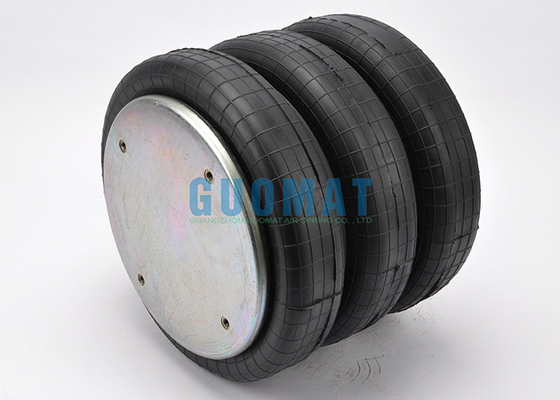

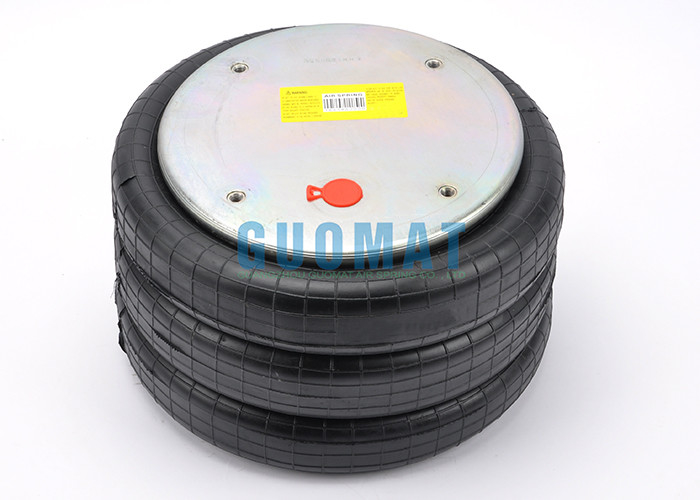

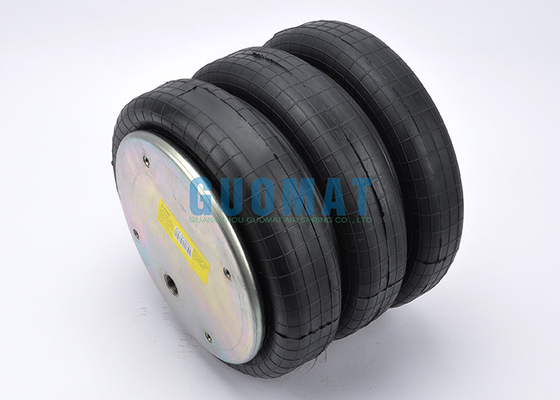

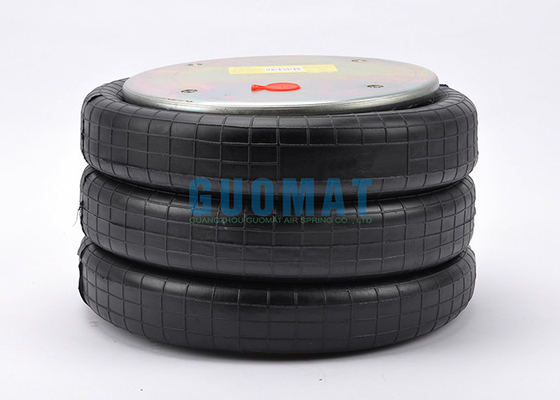

GUOMAT Industrial Air Spring Real Pictures
