| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 2B6910 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $59.9-69.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Warranty: | 12 Months | Material: | Rubber + Steel |
|---|---|---|---|
| MOQ: | 10 Pieces | Spring Type: | Double Convoluted Type Air Spring |
| Air Inlet: | Offset Air Inlet | Contitech: | FD200-19 |
| Norgren: | PM/31092 | Other Name: | Rubber Air Bellows |
| High Light: | Single Vibration Industrial Air Spring,FD200-19 Industrial Air Spring,2B6910 Industrial Air Spring |
||

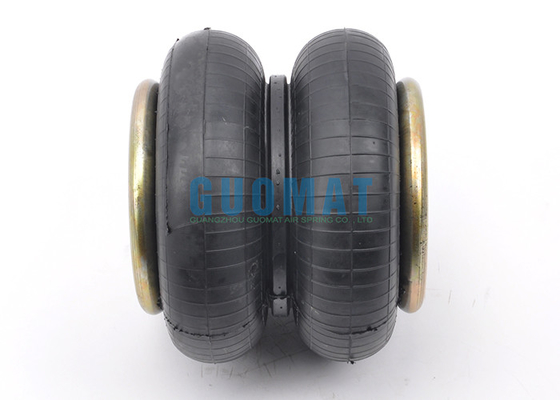

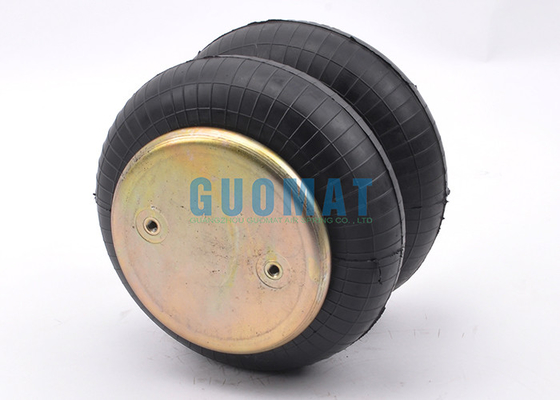

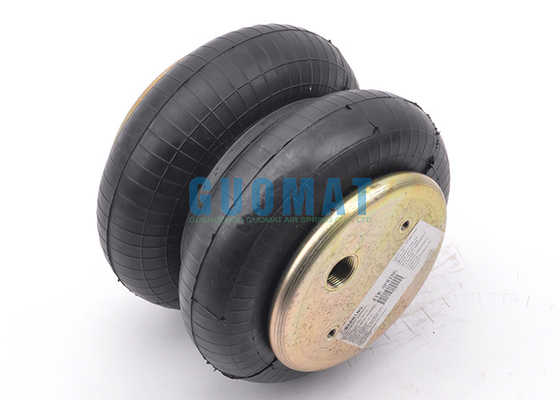

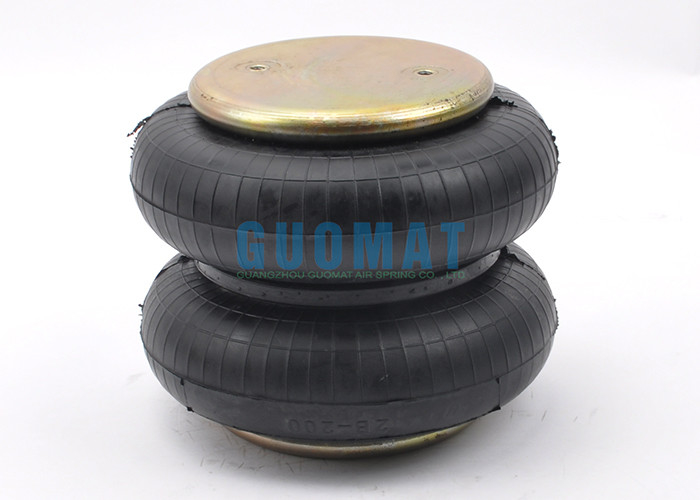

GUOMAT 2B6910 Single Vibration Industrial Air Spring FD200-19 G3/4 Contitech Air Actuators
Product Description
|
FD200-19 |
|
2682 045000 |
|
822419043 |
|
EB-250-185 |
|
PM/31092 |
|
WBE 400-E1 |
Contitech P/N FD200-19
Contitech P/N FD 200-19
Contitech P/N FD200-19 CI
Contitech P/N FD 200-19 CI
Contitech P/N FD200-19 CI 3/4NPT
Contitech P/N FD 200-19 CI 3/4NPT
Contitech P/N 2682 045000
Bosch P/N 822419043
Festo P/N EB-250-185
Norgren P/N PM/31092
Norgren P/N PM 31092
Norgren P/N PM31092
Weforma P/N WBE400-E1
Weforma P/N WBE 400-E1
2B6910 Double Convoluted Air Spring Technical Data
|
Cover Plate |
Top Cover Plate Diameter:160mm |
|
Bottom Cover Plate Diameter:160mm |
|
|
Air Inlet |
G3/4 |
|
Blind Nut |
Screw Center Distance Of Top Cover Plate:89mm |
|
Screw Center Distance Of Bottom Cover Plate:89mm |
|
|
Screw And Gas Hole Distance Of Top Cover Plate:38mm |
|
|
Top Cover Plate Screw (Nut) Tooth:2XM8X1.25 |
|
|
Bottom Cover Plate Screw (Nut) Tooth:2XM8X1.25 |
|
|
Rubber Bellow |
Rubber Bellow MAX Diameter:251mm |
|
Rubber Bellow Natural Diameter: 224mm |
|
|
The Working Stroke:MAX 260mm to MIN 75mm |
|
|
Maximum Height:260mm |
|
|
Minimum Height:75mm |
|
|
Compression Height:185mm |
Firestone Style 274 Air Springs Rubber Bellows
Firestone W01-358-6910: Blind nuts,1/4NPT (Two Ply Bellows)
Firestone W01-358-6911: Blind nuts,1/4NPT,bumper (Two Ply Bellows)
Firestone W01-358-6900: Blind nuts,3/4NPT (Two Ply Bellows)
Firestone W01-358-6901: Blind nuts,3/4NPT,bumper (Two Ply Bellows)
Firestone W01-358-6923: Countersunk steel bead rings,13/4bolts,nuts,washers (Two Ply Bellows)
Firestone W01-358-0138: Rubber bellows only (Two Ply Bellows)
