| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 2B6330 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $59.9-69.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Warranty: | 12 Months | Material: | Rubber + Steel |
|---|---|---|---|
| Spring Type: | Double Convoluted Type Air Spring | Other Name: | Rubber Air Actuator |
| Firestone Style: | 22 | Max.OD: | 325mm |
| Air Hole: | 1/4NPTF | Package: | Standard Packing Or Customized |
| High Light: | W01-358-7182 Double Convolution Air Actuator,Industrial Equipment Double Convolution Air Actuator |
||

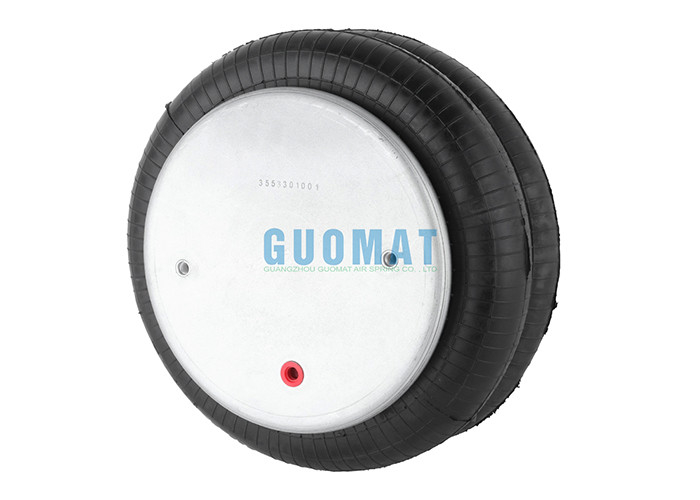

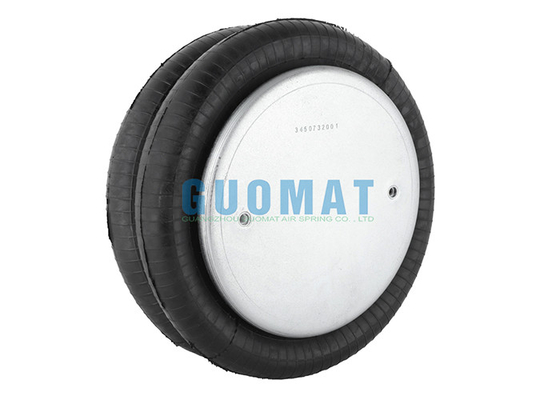

Factory Price Double Convolution Air Actuator W01-358-7182 Firestone Air Bellow 22 For Industrial Equipment
Product Description
|
Brand: GUOMAT |
|
Model Number: 2B6330 |
|
Loading Range: 50-4000KG |
|
Material: Rubber+Aluminum Alloy/Steel |
|
Warranty: 12 Months |
|
Application: Vibrating Screen,Packing Machine |
Original Equipment Manufacturer Number
Firestone Bellow Number 22
Firestone OEM Number W01-358-7180,WO1-358-7180
Firestone OEM Number W01 358 7180,WO1 358 7180
Firestone OEM Number W013587180,WO13587180
Goodyear Bellow Number 578923309,578 92 3 309,578-92-3-309
Goodyear OEM Number 2B12-425,2B 12-425
Goodyear OEM Number 2B12-311,2B 12-311
Contitech OEM Number FD330-22 363,FD 330-22 363
Triangle OEM Number 6316
Triangle OEM Number 4363
Airkraft OEM Number 115061
Airkraft OEM Number 3B-356,3B 356
Vibracoustic VSP2B22R7180,EI Ride 8030190,Kwiklok/Todco(Jifflox)
Leland Sc2075,Navistar 1685179C1,Hendrickson 1VA1816,Talbert
Ridewell 1003587180C,SAF Holland 57007180,Watson&Chalinl AS01541G
Watson&Chalinl 01881F,Peerless 055000001,Peerless 0550-00001
GUOMAT 2B6330 Double Convoluted Industrial Air Spring Technical Data
Top Bead Plate Diameter: Ø231mm
Bottom Bead Plate Diameter: Ø231mm
Air Fitting Hole: 1/4NPTF
Blind Nut on Top Bead Plate: 2X3/8-16UNC
Center Distance Between Blind Nuts: 157mm
Distance Between Blind Nuts and Air Fitting Hole: 73mm
Blind Nut on Bottom Bead Plate: 2X3/8-16UNC
Rubber Bellows Max.Outer Diameter: Ø325mm
Maximum Extended Height: 305mm
Minimum Compression Height: 81mm
The Stroke: 81mm-305mm
Girdle Hoop: Without
22 Style Firestone Bellow Air Spring
|
Bellow NO. |
Firestone NO. |
|
22 |
W01-358-7180/WO1-358-7180 |
|
22 |
W01-358-7181/WO1-358-7181 |
|
22 |
W01-358-7183/WO1-358-7183 |
|
22 |
W01-358-7185/WO1-358-7185 |
|
22 |
W01-358-7344/WO1-358-7344 |
|
22 |
W01-358-7400/WO1-358-7400 |
|
22 |
W01-358-7401/WO1-358-7401 |
|
22 |
W01-358-7403/WO1-358-7403 |
|
22 |
W01-358-7404/WO1-358-7404 |
|
22 |
W01-358-7405/WO1-358-7405 |
|
22 |
W01-358-7406/WO1-358-7406 |
|
22 |
W01-358-7409/WO1-358-7409 |
|
22 |
W01-358-7410/WO1-358-7410 |
|
22 |
W01-358-7423/WO1-358-7423 |
|
22 |
W01-358-7424/WO1-358-7424 |
|
22 |
W01-358-7429/WO1-358-7429 |
|
22 |
W01-358-7437/WO1-358-7437 |
Why Choose GUOMAT Air Spring
1. Excellent shock absorption ability
2. Effectively reduce noise
3. Precise height control
4. Wide range of sizes
5. The installation height is compact
6. Extend equipment life
7. Stable shock absorption effect
8. Wide range of uses (machinery equipment, vehicle suspension, lifting)
The Drawing of GUOMAT 2B6330 Industrial Air Spring Bag
