| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | PM/31062 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $109.9-159.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Material: | CR Rubber + Aluminum Cover | Warranty: | 1 Year Warranty |
|---|---|---|---|
| Function: | Reduce Shock | Number Of Convolutions: | 2 |
| Stroke Length: | 115mm | Weight: | 2.7KG |
| Brand: | NORGREN | Other Name: | Hyperbolic Compact Airbag |
| High Light: | 115mm Stroke Industrial Air Spring,Pneumatic Type Rubber Industrial Air Spring |
||

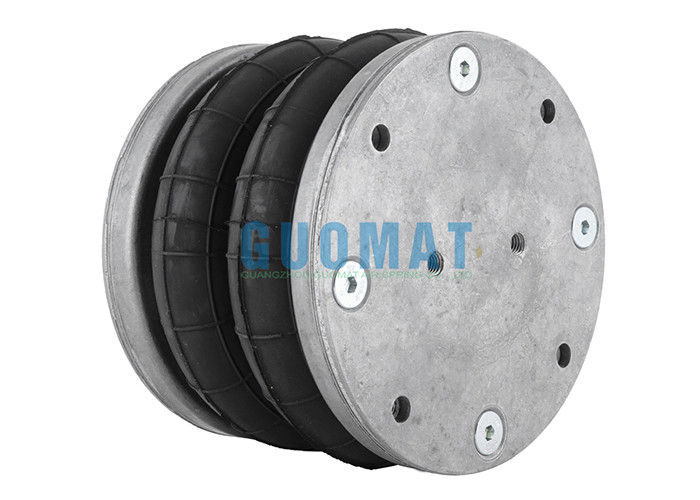

PM/31062 NORGREN Industrial Air Spring 115mm Stroke Pneumatic Type Rubber Air Bellows
Product Description
Manufacturer: NORGREN
Manufacturer Number: PM/31062
Manufacturer Number: PM 31062
Manufacturer Number: PM31062
Material: CR Rubber + Aluminum Cover
MOQ: 1pc
Item Name: Double Convoluted Industrial Air Spring
Delivery Time: About 3-7 working days
Payment: L/C,T/T,Western Union,PayPal
Shipment: By air,By sea,By express
Order Information
| Type | Part Number |
| CR Rubber Only | 6X2 |
| CR Rubber Only,Aluminum Cover,G1/2 | PM/31062 |

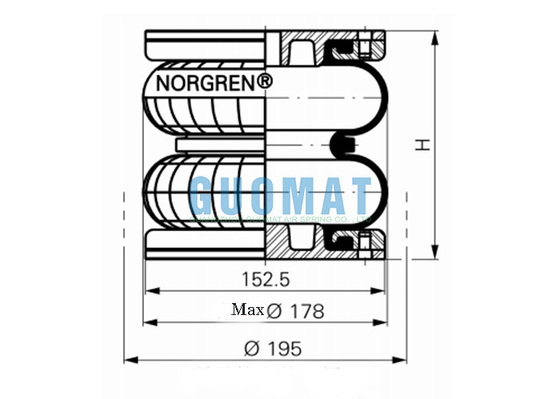

PM/31062 Norgren Air Bellow Technical Data
Top Cover Plate Diameter: 152.5mm
Bottom Cover Plate Diameter: 152.5mm
Air Fitting Hole: G1/2
Screw Nut:4 X M8
Distance Between Screw Nuts: 127
The Rubber Bellow Max.Diameter: 178mm
Required Installation Space: 195mm
Max.Height: 195mm
Min.Height: 80mm
Stroke: 115mm
Medium: Compressed Air
Operation: Single Acting
Operating Pressure:0-8Bar
|
Pressure P |
［bar］ |
3 |
4 |
5 |
6 |
7 |
8 |
VoI.［I］ |
|
Height H(mm) |
160 |
2.6 |
3.5 |
4.5 |
5.5 |
6.5 |
7.6 |
2.0 |
|
140 |
3.3 |
4.5 |
5.6 |
6.8 |
8.1 |
9.3 |
1.7 |
|
|
120 |
3.9 |
5.2 |
6.6 |
8.0 |
9.4 |
10.8 |
1.5 |
|
|
100 |
4.6 |
6.2 |
7.8 |
9.4 |
11.1 |
12.8 |
1.2 |
Cross Reference Number
Dunlop Part Number: 6X2,6''X2,SP2917,SP 2917
Contitech Part Number: FD76-14 DI,FD 76-14,FD 76-14 DI
PARKER Part Number: 9109001A
Firestone Part Number: W01R584070,W01 R58 4070,W01-R58-4070
Firestone Part Number: WO1R584070,WO1 R58 4070,WO1-R58-4070
The Technical Advantages of Norgren Rugged Air Bag
Friction-free operation, maintenance-free, lubrication-free, suitable for short strokes, heavy load conditions, high vibration isolation performance, simple and compact installation!
How to Maintain Industrial Air Spring
First, the correct ride height should be maintained within the established dimensions by the OEM . Second, a self-leveling mechanism is common to keep the air spring's load stable . Third, proper spring maintenance goes beyond the springs themselves , and it is essential to follow the manufacturer's recommended maintenance procedures. These procedures typically include checking for leaks, inspecting the air lines and fittings, and ensuring that the air pressure is set according to the manufacturer's specifications. Fourth, road-friendly air suspension systems increase the ability of trucks , and industrial air springs to industries including road transport , logistics, rail.
