SP1B07 Phoenix Air Balloon Spring Suspension M8 Blind Nuts Press Rubber Air Spring

Name: SP1B07 Phoenix Air Balloon Spring Suspension M8 Blind Nuts Press Rubber Air Spring
Brand: GUOMAT
SKU: SP1B07
Price: 49.9 USD
Availability: InStock
Rating: 4.7 (125 reviews)

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	SP1B07

Payment & Shipping Terms:

Minimum Order Quantity:	6pcs
Price:	$49.9-59.9/pc
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Warranty:	12 Months	Material:	Rubber + Steel
Spring Type:	Double Convoluted Type Air Spring	Package:	Standard Packing Or Customized
Air Hole:	G1/4	Natural Height:	113mm
OEM Number:	SP 1 B 07	Other Name:	Air Lift Bag
High Light:	Phoenix Air Balloon Spring Suspension , SP1B07 Spring Suspension

SP1B07 Phoenix Air Balloon Spring Suspension M8 Blind Nuts Press Rubber Air Spring

Product Description

Brand	GUOMAT
Phoenix	SP 1 B 07
Phoenix	SP1B07
Phoenix	SP 1B 07

Technical Data

1. Top Cover Plate Diameter: 135mm

2. Air Inlet: G1/4

3. Threaded Hole: 2XM8X1.25

4. Distance Between Air Hole and Threaded Hole: 26mm

5. Diatance Between Threaded Holes: 53mm

6. Bottom Cover Plate Diameter: 135mm

7. The Rubber Bellow Max.Diameter: 215mm

8. Max.Height: 115mm

9. MIn.Height: 50mm

10. Compression Height: 65mm

Bellows Cylinders Application

Scissor Lift
Hopper Vibration and Damping
Mechanical Handling Stop
Quick Lock Device
Reel Tensioning
Machine Isolation
Direct Force
Impact Absorbtion
Roller Tensioning
Platform Lift
Short Stroke Mechanical Linkage
Hot Foil Stamping Press

Phoenix SP-1B Single Convolution Industrial Air Spring

Type	Outer Diameter(mm)	Port Size	Max Force(N) at 1 bar (0 stroke)	Max Stroke(mm)
SP-1B04	150	G1/4	1250	55
SP-1B05	165	G1/4	1350	45
SP-1B07	205	G1/4	1550	90
SP-1B12	250	G3/4	2800	100
SP-1B22	350	G3/4	5050	110
SP-1B34	420	G3/4	7600	110

How to Replace an Industrial Air Spring

Before installing the industrial air spring, evenly apply the lubricant (tire lubricant) to the upper and lower bases of the spring to reduce the friction caused by installing the new industrial air spring, and at the same time protect the industrial air spring and its contact position from damage .
Place the new industrial air spring on a dry flat surface, firmly hold both sides of the spring with both hands, and press down on the spring until the volume of the spring is enough to fit the "upper and lower base" range.
When installing, combine the bottom of the industrial air spring with the lower base, and then adjust the top of the spring to enter the upper base; when the industrial air spring is basically located between the upper and lower bases, open the air pressure valve to inflate the spring; at the same time, Maintenance personnel need to stabilize the projectile with both hands to prevent excessive displacement.
After inflating for 10 to 15 seconds, the industrial air spring is fully inflated. At this time, spray foam water on the elastic body, and carefully check whether the new industrial air spring is well sealed and whether the elastic body is damaged. If there is no problem, the installation will be completed and it can operate normally.

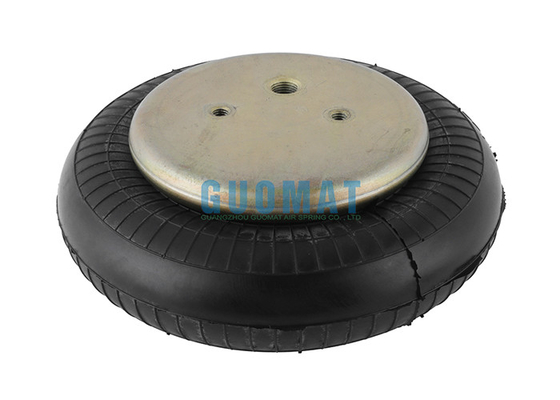

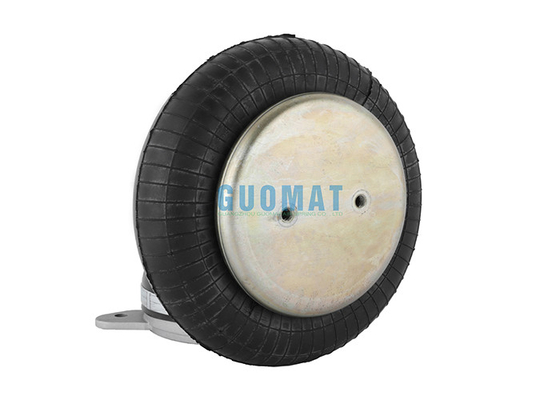

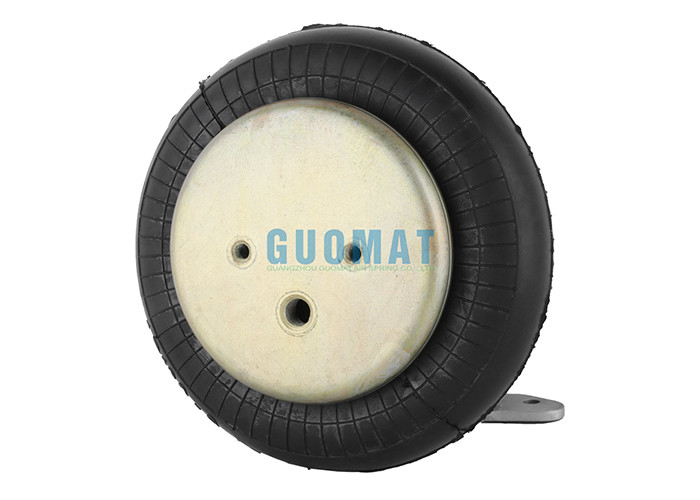

The Real Pictures of SP1B07 Phoenix Air Balloon Spring

SP1B07 Phoenix Air Balloon Spring Suspension M8 Blind Nuts Press Rubber Air Spring 0
