Email:linda@662n.com Mob:+8613924100039(WhatsAPP)
Wechat:airspringG Skype:guomat
 |
| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 8''X1 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $79.9-99.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Suspension System: | Air Suspension Spring | Warranty: | 1 Year Warranty |
|---|---|---|---|
| Material: | Rubber+Steel | Color: | Black |
| Sample: | Available | Operation: | Gas-filled |
| Type Of Goods: | Air Spring/Air Bags/Air Ballons | Function: | Reduce Shock |
| High Light: | FS 138-8 Suspension Air Spring,Single Convoluted Rubber Suspension Air Spring |
||

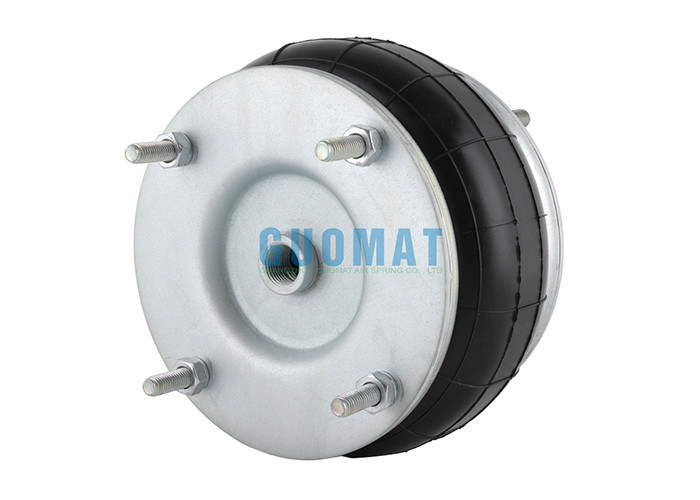

FS 138-8 DS Industrial Suspension Air Spring 8''X1 Single Convoluted Rubber Airbag With Flange Ring
Product Description
GUOMAT 1B8X1 single convoluted type air spring uses air as the elastic medium, that is, put compressed air in a closed container, and use the compression elasticity of the gas to realize the spring effect. As the load increases, the compressed air pressure in the container increases, and its stiffness increases; when the load decreases, the stiffness also decreases with the decrease of air pressure, so this kind of spring has better variable stiffness characteristics.
OEM Number: GUOMAT 1B8X1
|
CONTITECH |
FIRESTONE |
DUNLOP |
DUNLOP |
NORGREN |
PARKER |
|
FS138-8 |
WO1R584054 |
8X1 |
SP1537 |
M/31081 |
9109014 |
|
FS 138-8 |
WO1 R58 4054 |
8''X1 |
SP 1537 |
M 31081 |
|
|
FS138-8 DS |
WO1-R58-4054 |
8 X1 |
sp1537 |
M31081 |
|
|
FS 138-8 DS |
W01-R58-4054 |
|
sp 1537 |
m/31081 |
|
|
|
W01 R58 4054 |
|
|
m 31081 |
|

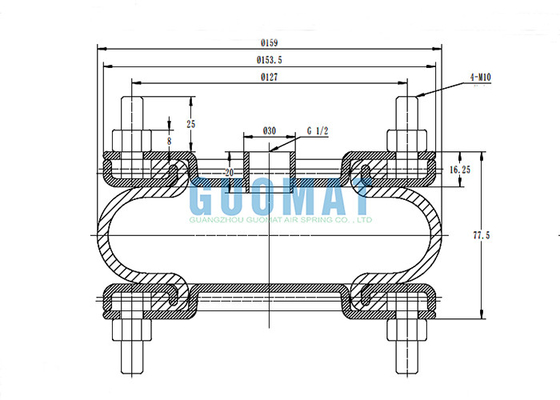

8''x1 Flange Air Spring Technical Parameters
Number of Convolution: 1
Working pressure: ≤0.7Mpa
The Thickness of the Cover Plate: 16.25mm
Top Cover Plate Diameter: Ø153.5mm
Air Fitting Hole: G1/2
The Diameter of Air Fitting Hole: Ø30mm
Screw Teeth of the Top Cover Plate: 4pcs M10
The Distance Between the Screw Teeth of the Top Cover Plate: Ø127mm
Bottom Cover Plate Diameter: Ø153.5mm
Screw Teeth of the Bottom Cover Plate: 4pcs M10
Rubber Bellows Natural Outer Diameter: Ø159mm
Natural Height: 77.5mm
How to Install Stamped Flange Air Spring
It is important to follow the manufacturer's instructions when installing the air spring, as installation process may vary depending on the specific model of air spring you are installing. Additionally, it may be helpful to refer to any diagrams or instruction manuals that come with the air spring to ensure proper installation.
Contitech Air Spring With Flange Connection
|
Model |
Description |
|
FS 76-7 DS CR |
Rubber airbag removable top plate and G 1/2 air inlet |
|
FS 138-8 DS |
Removable top plate and G 1/2 air inlet |
|
FS 210-10 DS |
Removable top plate and G 1/2 air inlet |
|
FS 412-10 DS |
Removable top plate and G 1/2 air inlet |
|
FS 614-13 DS |
Removable top plate and G 1/2 air inlet |
|
FS 816-15 DS |
Removable top plate and G 1/2 air inlet |
|
FD 76-14 DS CR |
Rubber airbag removable top plate and G 1/2 air inlet |
|
FD 138-18 DS |
Removable top plate and G 1/2 air inlet |
|
FD 209-21 DS |
Removable top plate and G 1/2 air inlet |
|
FD 210-22 DS |
Removable top plate and G 1/2 air inlet |
|
FD 412-18 DS |
Removable top plate and G 1/2 air inlet |
|
FD 614-26 DS |
Removable top plate and G 1/2 air inlet |
|
FD 816-30 DS |
Removable top plate and G 1/2 air inlet |
|
FT 76-20 DS CR |
Rubber airbag with aluminum plate and G 1/2 air inlet |
|
FT 138-26 DS |
Removable top plate and G 1/2 air inlet |
|
FT 210-32 DS |
Removable top plate and G 1/2 air inlet |
|
FT 412-32 DS |
Removable top plate and G 1/2 air inlet |
|
FT 614-36 DS |
Removable top plate and G 1/2 air inlet |
|
FT 816-40 DS |
Removable top plate and G 1/2 air inlet |
