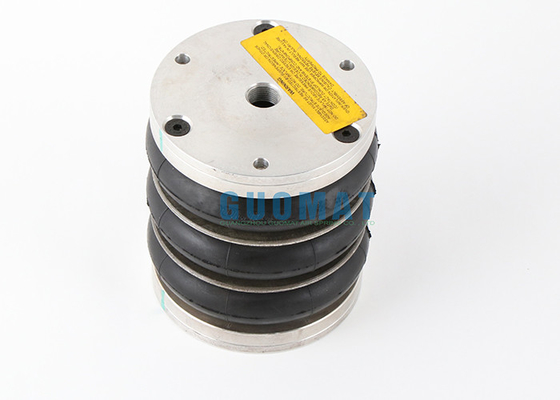

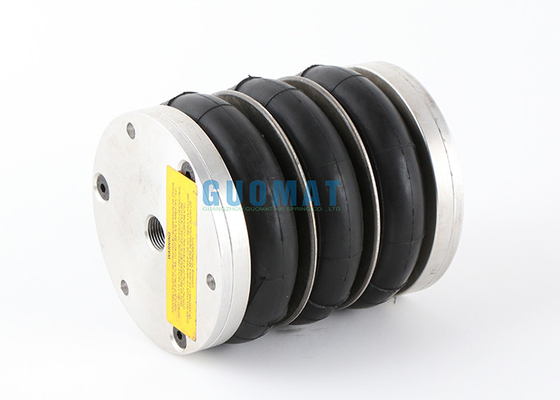

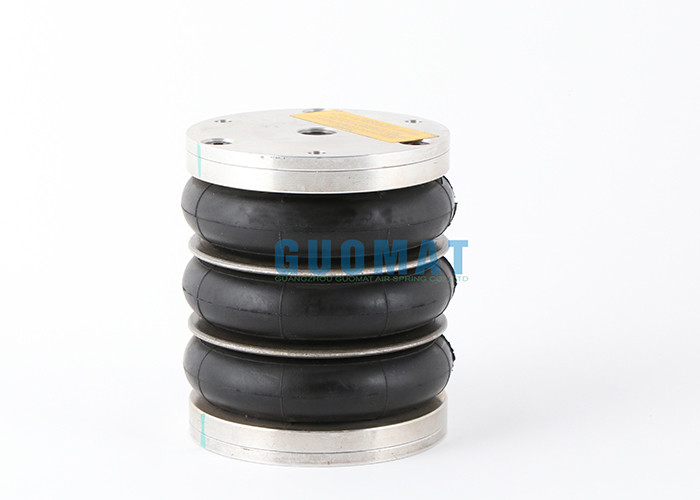

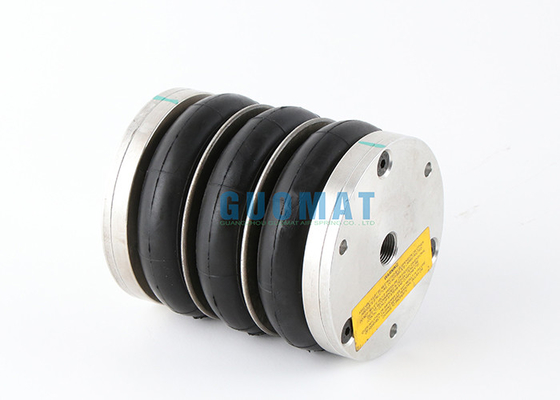

4.5''X3 NORGREN Triple Convoluted Industrial Air Spring PM/31043 Air Bellow With Aluminum Cover Plate

4.5''X3 NORGREN Triple Convoluted Industrial Air Spring PM/31043 Air Bellow With Aluminum Cover Plate

Product Description
Item: Industrial Air Spring
Model Number: 3B4.5X3
Material: Rubber + Aluminum Cover
MOQ: 1pc
Item Name: Double Convoluted Industrial Air Spring
Delivery Time: About 3-7 working days
Payment: L/C,T/T,Western Union,PayPal
Shipment: By air,By sea,By express

Cross Reference Numbers
Firestone Part Number: W01R584035
Firestone Part Number: W01 R58 4035
Firestone Part Number: W01-R58-4035
Firestone Part Number: WO1R584035
Firestone Part Number: WO1 R58 4035
Firestone Part Number: WO1-R58-4035
Contitech Part Number: FT44-15
Contitech Part Number: FT 44-15
Contitech Part Number: FT44-15 CI
Contitech Part Number: FT 44-15 CI
Norgren Part Number: PM/31043
Norgren Part Number: PM 31043
Norgren Part Number: PM31043
Parker Part Number: 9109402
Dunlop Part Number: SP2895
Dunlop Part Number: SP 2895
Dunlop Part Number: 4 1/2''x3
Dunlop Part Number: 4 1/2''X3

PM/31043 NORGREN Air Bellow Technical Data
Model: PM/31043
CylinderØ(inch): 4 1/2''
Air Port: G3/8
Nominal Ø (inch)xconvolutions: 4 1/2''x3
Stroke(mm): 100
Installation Height Min (mm): 100
Recomended Max Working Height(mm): 180
Installation Height Max(mm): 200
Retracting Force to Reach Min Height (N): 140

Important Instruction
Thrust

• The thrust depends on the height of the bellow. When height increases the thrust decreases.
• Before installing the air bellow, check it carefully for any damage it may have suffered from transport or improper storage.
• Do not inflate the air bellow, until it has been secured properly

Clearance

• There must be enough clearance around the air bellow.
• The full surface of the metal parts is to be used to bear the forces.
• Air bellows must be equipped with lateral guides.
• Deflate the air bellows fully before removing.
• Ensure that the bellows is not constantly in contact with hydraulic oil, lubricants, solvents, metal cuttings and welding sparks.

Stops

• To avoid damage when the bellow is compressed or extended mechanical stops at both end positions have to be used.
