| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 6''X2 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $79.9-89.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Item Name: | Industrial Air Spring | Material: | Rubber+Steel |
|---|---|---|---|
| Warranty: | 1 Year | Function: | Shock Absorption |
| Type: | Flange Type Air Spring | Size: | OEM Standard Size |
| Quality: | High-Quality | NORGREN: | M/31062 |
| High Light: | SP1482 Air Spring,6''X2 Double Convoluted Air Spring |
||

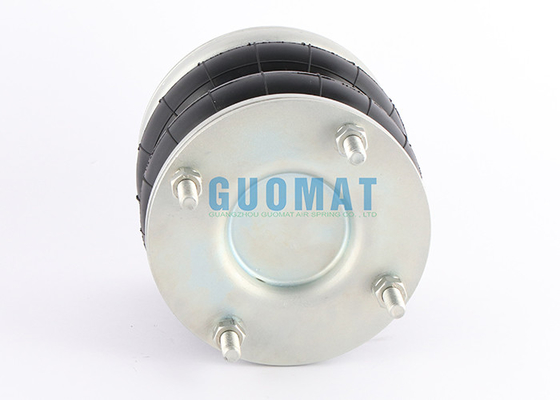

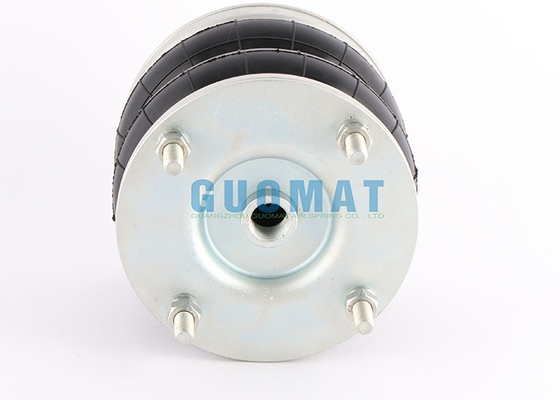

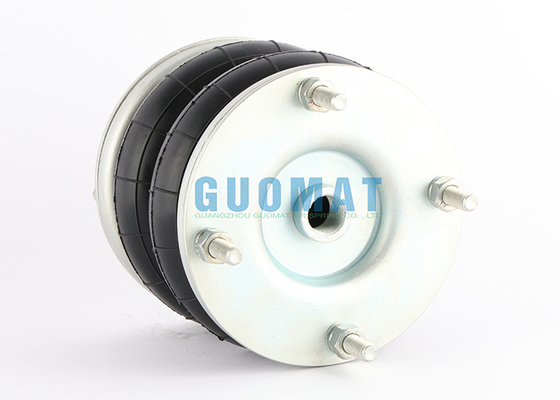

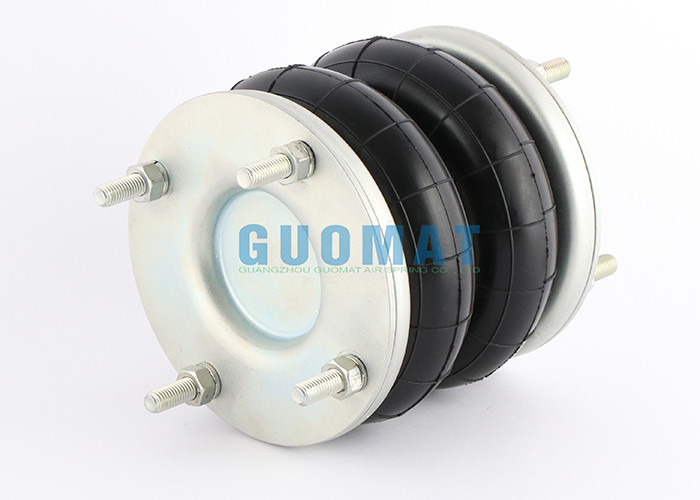

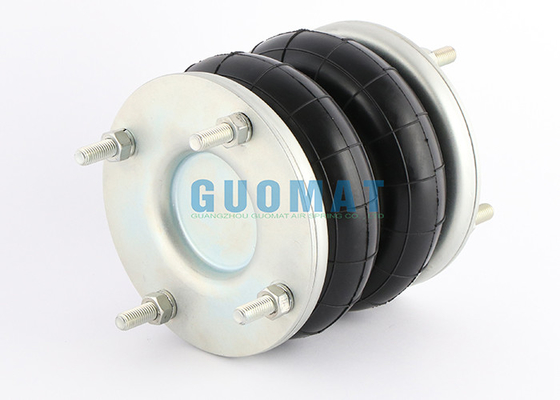

SP1482 DUNLOP Flange Type Air Spring 6''X2 Double Convoluted Air Lift Ride Bag For Industrial Inspection Equipment
Product Description
| Manufacturer | Part Number |
| FIRESTONE | W01R584053/W01 R58 4053/W01-R58-4053 |
| FIRESTONE | WO1R584053/WO1 R58 4053/WO1-R58-4053 |
| DUNLOP | 6''x2/6''X2/SP1482/SP 1482 |
| CONTITECH | FD76-14 DS/FD 76-14 DS |
| NORGREN | M/31062,M 31062,M 31062 |
| PARKER | 9109001 |
GUOMAT 6x2 Flange Industrial Air Spring Technical Data
Cover Plate Diameter: Ø153.5mm
Gas Hole: G1/2
Screw Teeth: 4-M10
Center Distance Between Screw Teeth: Ø127mm
The Rubber Bellow Natural Diameter: Ø159mm
Natural Height: 135.5mm
DUNLOP 6''X2 Rubber Air Bellow Dimensions
Maximum Diameter: 168mm
Space Required: 180mm
Minimum Height: 73mm
Maximum Height: 170mm
Total Stroke: 97mm
Static Height: 120mm
Effective Area at Static Height: 140cm2
Bellows Weight: 2.25KG
Maximum Working Pressure: 8bar
Burst Pressure: 40bar
Maximum Angle Between Top and Bottom Plates: 15°
Maximum Axial Offset: 10mm
|
Part Number |
Type |
Rubber |
Inlet |
|
VSM 10177 |
Bellow |
Standard |
N/A |
|
PNP 30551 01 11 |
Assembly |
Standard |
1/2''BSP |
|
A 3 1473 0B 24 |
Bellow |
Butyl |
N/A |
|
Dunlop |
Assembly |
Butyl |
1/2''BSP |
Application of Air Spring
