| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | FD76-14 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $199.9-299.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Material: | Natural Rubber+Steel | Color: | Black |
|---|---|---|---|
| Package: | Neutral Brown Carton Packaging | Function: | Shock Absorption |
| Overall Weight: | 1.8KG | Max.Height: | 195MM |
| Screw: | M8 | Spring Type: | Double Convolution Air Actuator |
| High Light: | Continental Contitech Industrial Air Spring,Industrial Air Spring For Parquet Machine |
||
Original Continental Contitech FD 76-14 DS G1/2 CR Industrial Rubber Air Balloon For Parquet Machine
Product Description
Original Manufacturer: Continental Contitech
Contitech Number: FD76-14
Contitech Number: FD 76-14
Contitech Number: FD76-14 DS
Contitech Number: FD 76-14 DS
Contitech Number: FD76-14 DS G1/2
Contitech Number: FD 76-14 DS G1/2
Contitech Number: FD76-14 DS G1/2 CR
Contitech Number: FD 76-14 DS G1/2 CR
Purchase Order Data
|
Type |
Order No. |
|
Rubber Bellows only |
77215 |
|
CR-Rubber Bellows. with dismountavle aluminium plates. G1/2 air inlet |
69838 |
FD76-14 Contitech Double Convolution Air Actuator Cross Reference Number
FIRESTONE W01R584053/W01 R58 4053/W01-R58-4053
FIRESTONE WO1R584053/WO1 R58 4053/WO1-R58-4053
DUNLOP PNEURIDE 6x2/6''x2/6''x2(steel)
DUNLOP SPRINGRIDE SP1482/SP 1482
NORGREN M/31062 / M31062 / M 31062
PARKER 9109001
Contitech FD76-14 Pneumatic application – static characteristic values
Force F(kN)
|
Pressure P |
(Bar) |
3 |
4 |
5 |
6 |
7 |
8 |
Vol.V(I) |
|
Height H(mm) |
160 |
2.58 |
3.52 |
4.5 |
5.5 |
6.54 |
7.6 |
2 |
|
140 |
3.3 |
4.46 |
5.64 |
6.84 |
8.07 |
9.33 |
1.7 |
|
|
120 |
3.88 |
5.21 |
6.57 |
7.96 |
9.38 |
10.8 |
1.5 |
|
|
100 |
4.59 |
6.16 |
7.76 |
9.4 |
11.1 |
12.8 |
1.2 |
CONTINENTAL AIR SPRINGS
• Extends Equipment’s Life: Extends the overall life of equipment through superior vibration control & isolation capabilities
• Noise Reduction: Reduce structurally transmitted noise and no spring chatter commonly associated with conventional coil springs
• Precise Heights Control: Internal air pressure provides constant and precise height control; this feature eliminates the fatigue and permanent set found commonly when using a coil or other forms of isolators
• Highest Degree of Isolation: Achieve natural frequencies as lower as 60 cycles per minute or 1 Hertz; can add auxiliary reservoir for even lower system frequencies
• No Significant Frequency Change Regardless of Load Changes: Big advantage if a machine is unevenly loaded
• No air line / tank necessary for applications under constant load and small differences in height are permissible

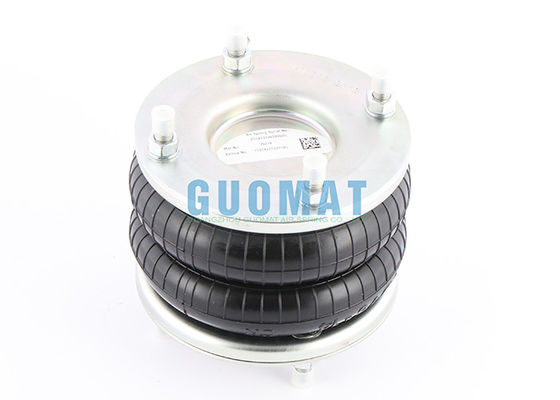

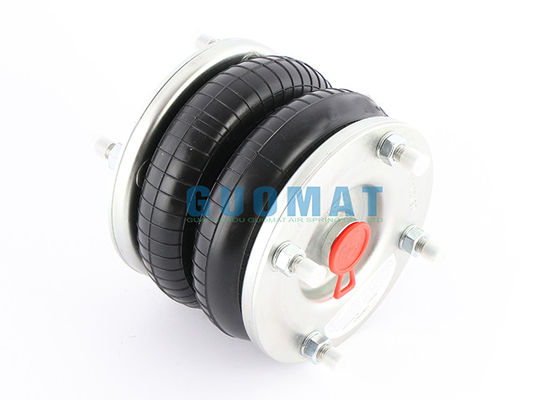

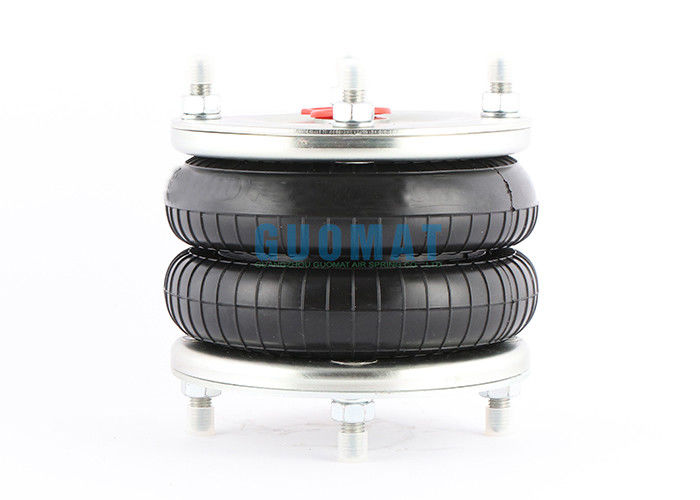

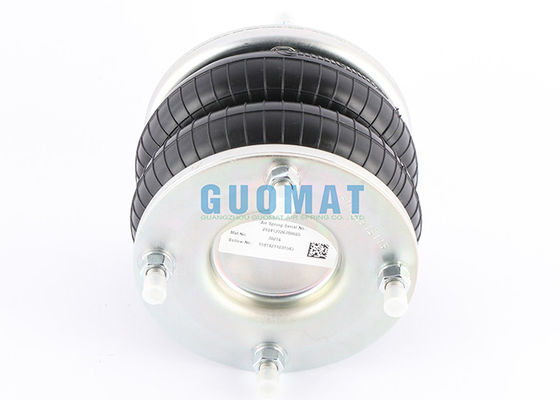

Real Pictures: FD76-14 DS G1/2 CR Contitech Industrial Air Spring
