| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 8''X2 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $89.9-99.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Item Name: | Air Lift Suspension | Material: | Rubber+Aluminum |
|---|---|---|---|
| Warranty: | 1 Year | Style: | Flange Type Air Spring |
| Type: | 8'x 2 | Application: | Paper Mill |
| Natural Height: | 160mm | Other Name: | Bags Rubber Bellows |
| High Light: | 8''X2 Flange Industrial Air Spring,W01R584055 Industrial Air Spring |
||

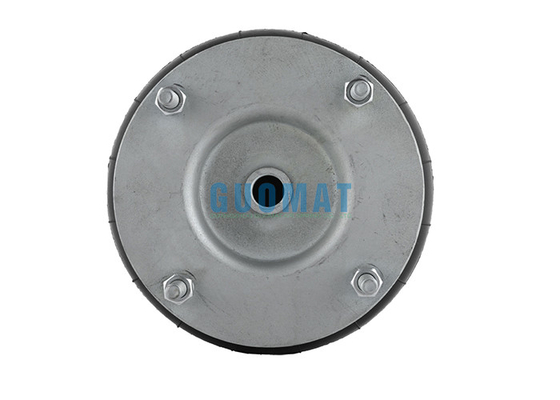

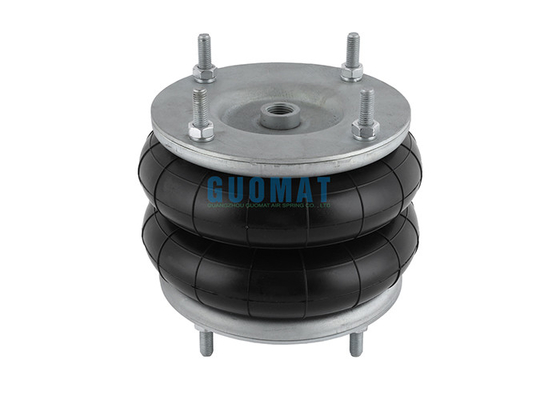

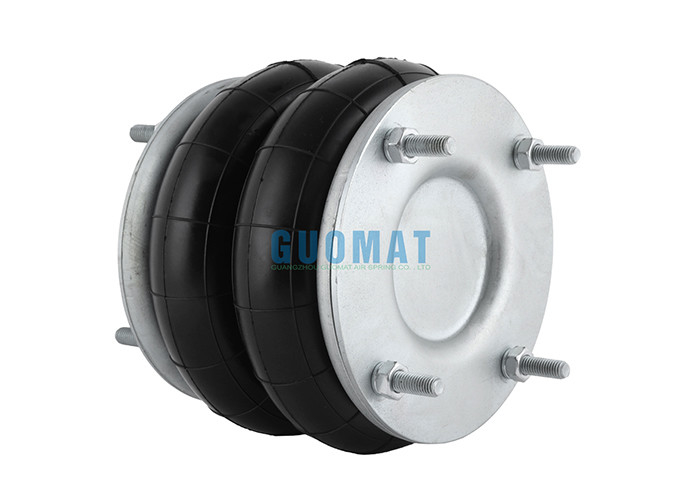

8''X2 Flange Industrial Air Spring W01R584055 Firestone Aluminum Plate Convoluted Rubber Bellows
Product Description
Flange connection air springs are commonly used in various industrial applications. An air spring typically consists of flexible bellows or sleeves made of rubber or similar material, which is pressurized with air to provide a cushioning effect. Flange connections allow for easy installation and secure attachment to other components or structures. among others. They are often used in applications where vibration isolation, shock absorption, or load-bearing capabilities are required.

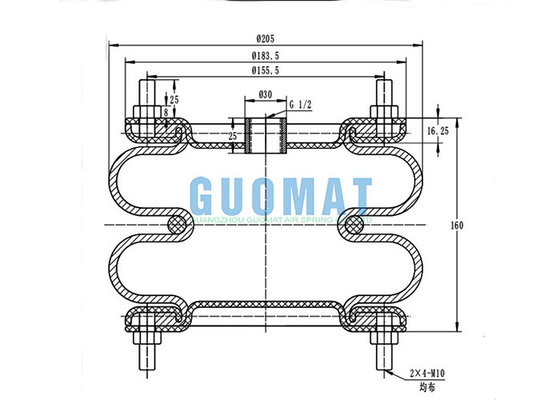

GUOMAT 8''x2 Flange Industrial Air Spring Technical Data
Cover plate diameter: Ø183.5mm
Gas hole: G1/2
Screw teeth on the top cover palte: 4-M10
Center distance between screw teeth: Ø155.5mm
The rubber bellow natural diameter: Ø205mm
Natural height: 160mm
Cross Reference Number
W01R584055 FIRESTONE
W01 R58 4055 FIRESTONE
W01-R58-4055 FIRESTONE
WO1R584055 FIRESTONE
WO1 R58 4055 FIRESTONE
WO1-R58-4055 FIRESTONE
FD138-18 CONTITECH
FD 138-18 CONTITECH
FD138-18 DS CONTITECH
FD 138-18 DS CONTITECH
M31082 NORGREN
M 31082 NORGREN
M/31082 NORGREN
8''X2 DUNLOP
8X2 DUNLOP
SP1490 DUNLOP
SP 1490 DUNLOP
9109011 PARKER
THRUST, INSTALLATION HEIGHT, RETRACTING FORCE-NORGREN M/31082
|
Model |
M/31082 |
|
Nominal Ø (inch)xconvolutions |
8x2 |
|
Stroke(mm) |
175mm |
|
Min.Installation height(mm) |
75mm |
|
Thrust at 6 bar (N) |
17650N |
|
Patracting force to reach min.height(N) |
250N |
|
Max.Installation height(mm) |
250mm |
|
Thrust at 6 bar (N) |
4550N |
Mounting Dimensions
|
Ø mm |
Types |
H min |
H Static |
H max |
Max Stroke |
Port Size |
Max Pressure |
Weight |
|
200 |
8X1 |
50mm |
90mm |
125mm |
75mm |
G1/2 |
8bar |
3.05kg |
|
8X2 |
70mm |
160mm |
252mm |
180mm |
G1/2 |
8bar |
3.75kg |
|
|
8X3 |
100mm |
205mm |
325mm |
225mm |
G1/2 |
8bar |
4.3kg |
Applications
