| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 12X3 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $89.9-99.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Material: | Rubber + Aluminum Cover | Warranty: | 1 Year Warranty |
|---|---|---|---|
| Function: | Reduce Shock | Spring Type: | Equipment Air Spring |
| Flange: | With | Maximum Axial Offset: | 10mm |
| Burst Pressure: | ≥2.0Mpa | Working Pressure: | ≤0.7Mpa |
| High Light: | Complete Convoluted Air Bellow,Pneumatic Complete Convoluted Air Bellow,Three Layers Complete Convoluted Air Bellow |
||

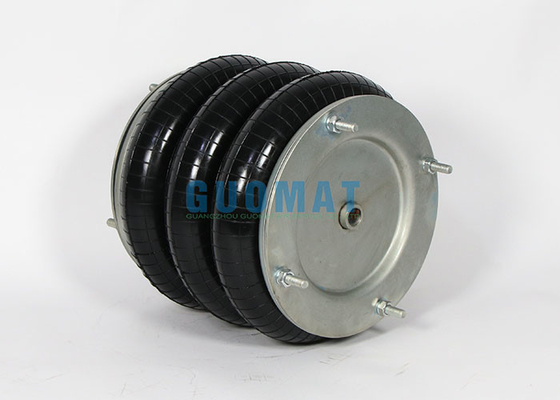

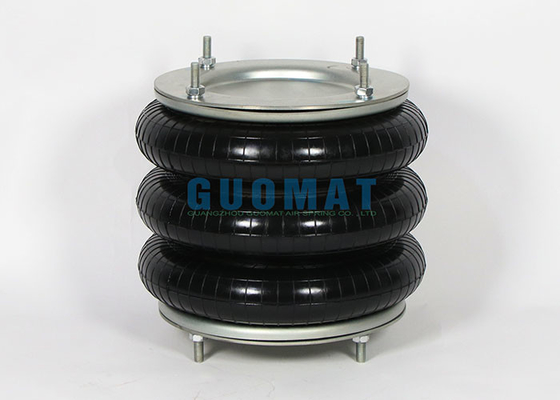

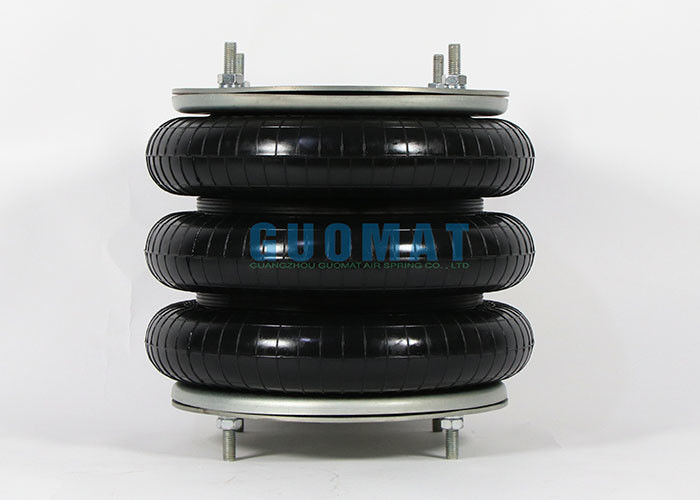

Complete Convoluted Air Bellow 12X3 Dunlop Three Layers Flange Helper Springs Pneumatics For Machinery Equipment
Product Description
An industrial flanged air spring is an air spring that is attached to a metal flange at one or both ends. The flange is designed to be bolted to a flat surface, making it easy to install and secure.
GUOMAT 12X3 Triple Convoluted Air Spring Technical Data
Top cover plate diameter: 260mm
Gas hole: 1/2
Screw teeth of the top cover: 4-M10 , 31mm height
Center distance between top cover screw teeth: 232mm
Bottom cover plate diameter: 260mm
Screw teeth of the bottom cover: 4-M10 , 31mm height
Center distance between bottom cover screw teeth: 232mm
Rubber bellows diameter: 300mm
Minimum installation space: 325mm
Natural height: 252mm
Technical Dara: DUNLOP 12X3
Top plate number:15878
Top plate diameter: 260mm
Air inlet: 1/2''BSP 0.5mm 13mm high
Clamp rigng Number: 15880
Number of clamp rigng: 2
Rubber bellow number: 15820
Nominal diameter of rubber bellow: 178mm
Rubber bellows diameter:12''/ 300mm
Centre ring number: 15881
Number of centre ring: 2
Bump stop: None
Bottom plate number: 15879
Dunlop Triple Convoluted Air Bellow
| Type | Plate Diameter | Max.Rubber Bellow | Min.Height | Max.Height | Stroke | Static Height | Space Envelope | Weight |
| 6x3 | 153 | 168 | 105 | 255 | 150 | 180 | 180 | 2.55 |
| 8x3 | 184 | 215 | 100 | 350 | 250 | 230 | 240 | 4.4 |
| 10x3 | 210 | 280 | 100 | 365 | 265 | 235 | 295 | 5.4 |
| 12x3 | 260 | 330 | 100 | 430 | 330 | 222 | 345 | 7.0 |
| 14 1/2x3 | 310 | 395 | 100 | 476 | 376 | 280 | 41 | 10.0 |
| 16x3 | 310 | 430 | 125 | 500 | 375 | 280 | 445 | 16.0 |
Advantages of Flanged Air Springs
Air springs with flanged ends are a popular choice for many applications for a number of reasons. Some of the advantages of flanged air springs include:
1. Ease of Installation: The flanged ends make installation of the air spring much easier as they can be easily bolted in place, without the need for special brackets.
2. Enhanced Safety: Flanged air springs are less likely to fail or come loose compared to other types of air springs, providing enhanced safety and reliability.
3. Reduced Maintenance: As flanged air springs are secure and mechanically stable, they require less maintenance compared to other types, reducing the need for frequent checks and adjustments.
4. Improved Stability: Flanged air springs offer improved stability in heavy load-bearing applications, as they are designed to provide a smooth and consistent ride even under variable loads.
5. Reduced Wear and Tear: Due to their superior design, flanged air springs last longer compared to other types of air springs, reducing overall wear and tear and extending the life of the equipment they are installed on.
