8 1/4x1 Norgren Air Spring PM/31091 Single Acting Series Air Bellow With Steel Cover Plate
Product Description
GUOMAT Air spring products are designed for use in a wide range of industrial applications, and are known for their high quality and reliable performance.
Original Equipment Manufacturer Number
Contitech OEM Number: FS200-10
Contitech OEM Number: FS 200-10
Contitech OEM Number: FS20010
Firestone OEM Number: W01M586374
Firestone OEM Number: W01-M58-6374
Firestone OEM Number: W01 M58 6374
Firestone OEM Number: WO1M586374
Firestone OEM Number: WO1-M58-6374
Firestone OEM Number: WO1 M58 6374
Phoenix OEN Number: SP1B12
Phoenix OEN Number: SP 1B12
Phoenix OEN Number: SP 1B 12
Dunlop(FR) OEM Number: 9'' 1/4 x 1
Dunlop(FR) OEM Number: 91/4 x 1
Dunlop(FR) OEM Number: S09101
Dunlop(FR) OEM Number: S 09101
Bosch OEM Number: 822419004
Bosch OEM Number: 8224 19004
Festo OEM Number: EB-250-85
Festo OEM Number: EB 250 85
Festo OEM Number: EB25085
Norgren OEM Number: PM/31091
Norgren OEM Number: PM 31091
Norgren OEM Number: PM31091
Norgren OEM Number: 81/4x1
Norgren OEM Number: 8 1/4x1

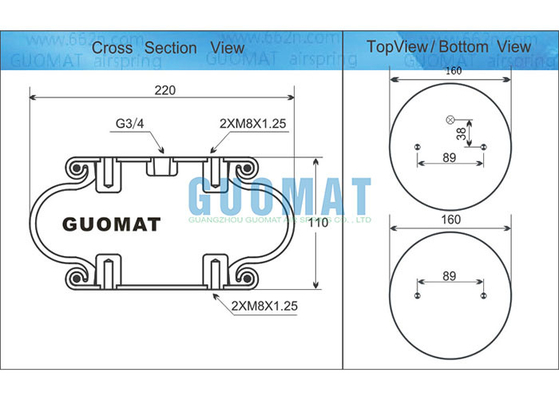

Technical Data: PM/31091 Norgren Single Convoluted Type Air Spring
Top cover plate diameter
Ø161mm
Air inlet
G3/4
Threaded holes in the top cover
2XM8X15mm
Center distance between top cover threaded holes
89mm
Distance between top cover threaded hole and air inlet hole
38.1mm
Bottom cover plate diameter
Ø161mm
Rubber bellows max.outer diameter
Ø250mm
Required installation space
Ø265mm
Maximum height
140mm
Minimun height
51mm
Pneumatic Applications - Static Eigenvalues
Force(kN)
|
Pressure |
Bar |
3 |
4 |
5 |
6 |
7 |
8 |
Volume V |
|
Height H (mm) |
120 |
4.5 |
6.2 |
8.2 |
10.4 |
12.1 |
13.8 |
2.8 |
|
110 |
5.5 |
7.5 |
9.6 |
11.9 |
14.0 |
15.7 |
2.6 |
|
|
100 |
6.3 |
8.6 |
11.0 |
13.4 |
15.5 |
17.5 |
2.4 |
|
|
90 |
7.0 |
9.4 |
12.1 |
14.6 |
17.0 |
19.2 |
2.2 |
|
|
80 |
7.6 |
10.2 |
13.0 |
15.7 |
18.2 |
20.6 |
1.9 |
|
|
70 |
8.1 |
10.9 |
13.6 |
16.5 |
19.3 |
21.9 |
1.6 |
|
|
60 |
8.5 |
11.3 |
14.2 |
17.1 |
20.1 |
23.0 |
1.3 |
About Payment and Shipping
Payment: L/C,T/T,Western Union,PayPal
Shipping: 1. by Air 2. by Sea 3. by Express 4. by Train
Generally, express transportation is selected. If the customer orders a large quantity, you can choose air or sea transportation.
Delivery time: 3-7 working days after receiving your payment.

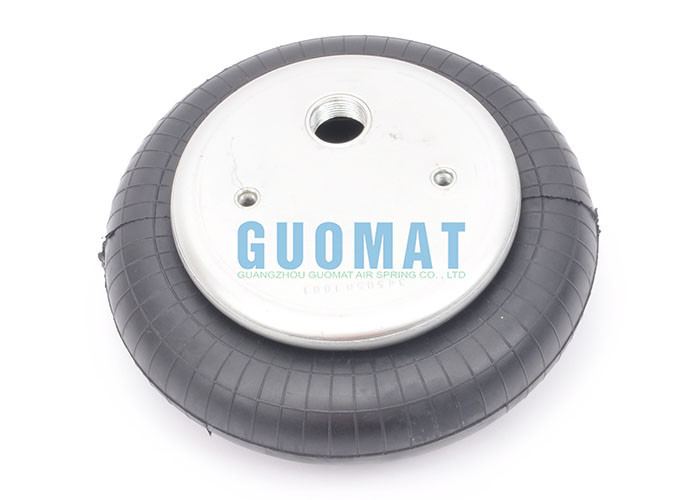

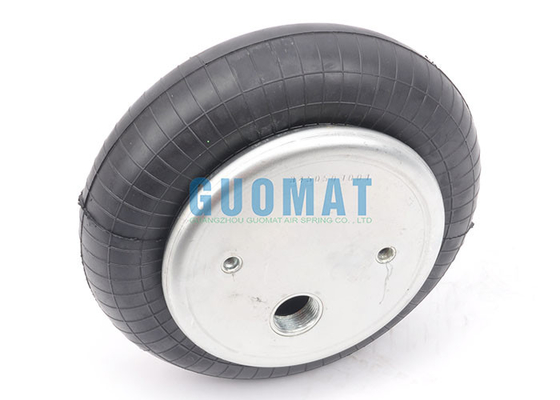

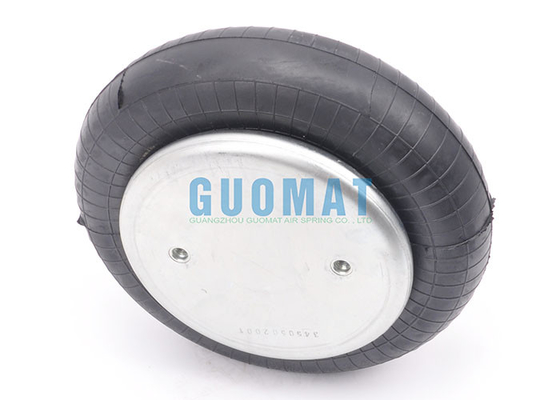

The Real Pictures
