| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 2B6X6 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $59.9-69.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Warranty: | 12 Months | Material: | Rubber + Steel |
|---|---|---|---|
| MOQ: | 6 Pieces | Key Words: | Rubber Air Spring |
| Car Model: | Truck Or Pickup Truck | Package: | Neutral Packing |
| Weight: | 1.6kg | Type: | Double Convoluted Type |
| High Light: | Double Convoluted Air Ride Suspension Bags,152mm Height Air Ride Suspension Bags |
||

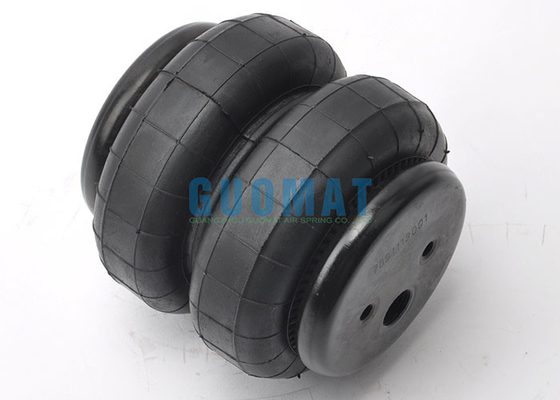

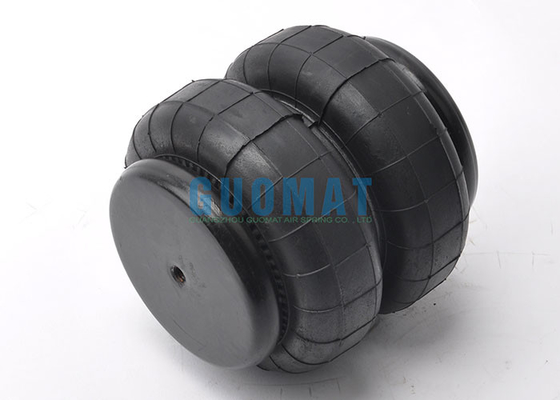

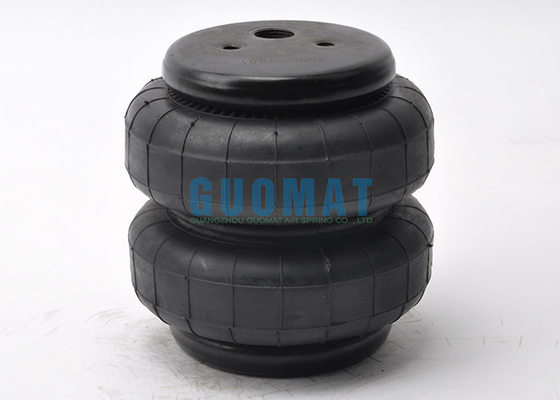

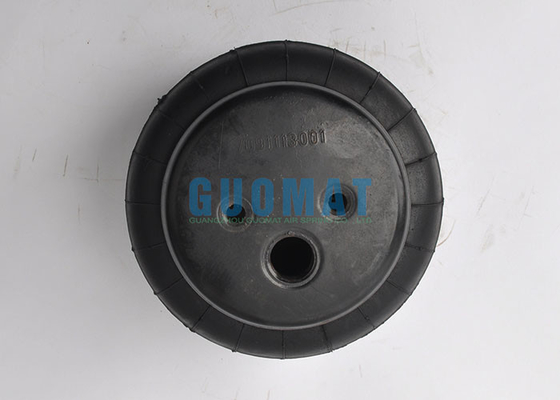

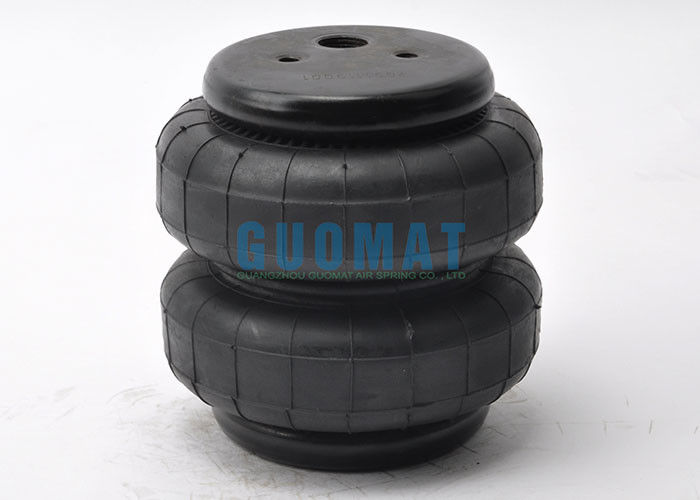

152mm Design Height 2B6X6 Double Convoluted Air Ride Suspension Bags For Modified Cars
Product Description
GUOMAT 2B6X6 is 100% quality assurance tested, faster response, lower cost and easier installation. This airbag will give you the performance you crave. More lift, a softer, smoother ride, and the lowest price in the industry!
Cross Information
Contitech Part Number: FD70-13
Contitech Part Number: FD 70-13
Contitech Part Number: FD70-13 CI
Contitech Part Number: FD 70-13 CI
Contitech Part Number: FD70 13
Contitech Part Number: FD 7013
Contitech Bellow Number: 66094
Goodyear Part Number: 2B6-535
Goodyear Part Number: 2B 6-535
Goodyear Flexmember: 579923515
Goodyear Flexmember: 579-92-3-515
Goodyear Flexmember: 579 92 3 515
EAA Part Number: 2E6X6
EAA Part Number: 2E 6X6
Technical Data: 2B6X6
|
Top & Bottom Cover Plate Diameter |
Ø113mm |
|
Gas Hole |
1/2NPT |
|
Threaded Hole |
3/8-16UNC |
|
Center Distance Between Threaded Holes |
44.5mm |
|
Center Distance Between Threaded Hole and Gas Hole |
22mm |
|
Rubber Bellows Diameter |
Ø145mm |
|
Design Height |
152mm |
|
Deflection (Height min) |
65mm |
|
Deflection (Height max) |
175mm |
|
Working Stroke |
110mm |
|
Loading Cap. at 3.0 bar |
2.88kN |
|
Loading Cap. at 7.0 bar |
7.25kN |
Modified Car Air Springs
Modified car air springs are an alternative to conventional steel springs in heavy vehicles such as buses and trucks , allowing for improved handling, comfort and load support. Air springs are also becoming more popular in passenger cars and light trucks. One example of custom air springs is the Air Lift Air Springs, which provide improved handling, comfort, and load support. Additionally, some modified cars use air suspension systems to allow for adjustable ride height and improved performance. These systems can also improve the look of a car by adjusting the wheel gap.
Advantages of Air Springs
1. Improved Ride Quality: Air springs provide a smooth and comfortable ride by reducing vibrations felt during driving. Unlike conventional coil springs, air springs can be adjusted to the desired stiffness, providing a more comfortable ride on different terrains.
2. Better handling and stability: Even at high speeds, air springs improve handling and stability by reducing body roll and sway. Air springs prevent the uneven weight distribution that can occur with conventional suspension systems for better road control.
3. Increased load capacity: Air springs can support heavier loads and provide better weight distribution throughout the suspension system than conventional springs. This means that a vehicle equipped with air springs can carry more cargo and tow more weight than a vehicle without air springs.
4. Adjustable Suspension: Air springs provide adjustable suspension, which means that the vehicle height can be changed depending on the load being carried. This feature is especially beneficial for vehicles carrying different loads, such as trucks and trailers.
Overall, installing air springs can provide superior ride comfort, better handling and stability, and higher load capacity.
