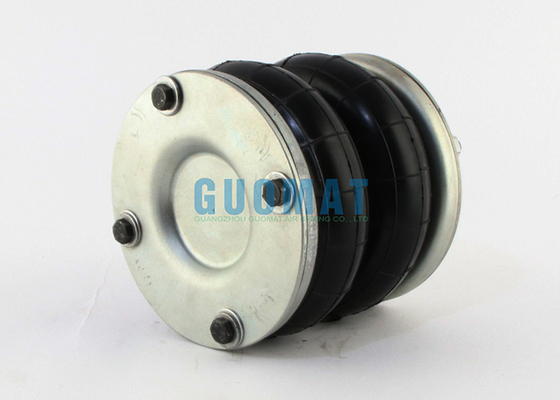

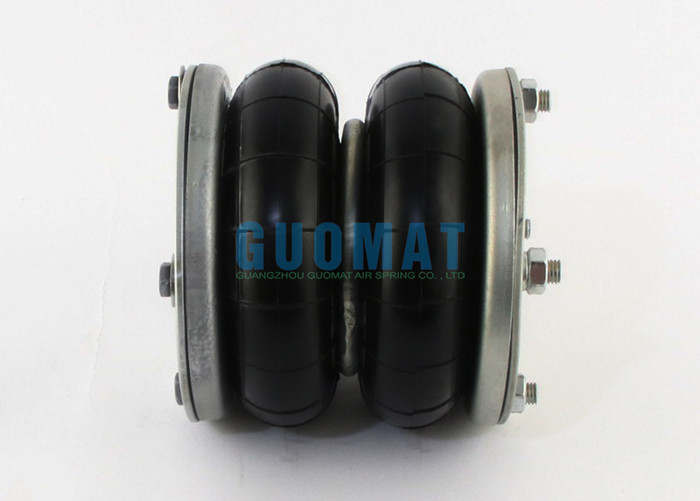

Dunlop DB 06219 Double Convoluted Flange Type Air Spring 6x2 Metal Bellows Industrial Air Shock
Product Description
Dunlop DB 06219 is an industrial air spring that is widely used in aluminum machinery, lifting, compression, suspension, and other applications. It is a convoluted air spring system that is designed to provide superior performance in a wide range of industrial applications.
DUNLOP Number: 6''×2
DUNLOP Number: DB06219
DUNLOP Number: DB 06219
AIRKRAFT Number: 2B-150
AIRKRAFT Number: 2B 150
AIRKRAFT Number: 2B150
AIRKRAFT Number: 113071
AIRREX Number: 2K-150
AIRREX Number: 2K 150
AIRREX Number: 2K150
AIRREX Order Number: 213071

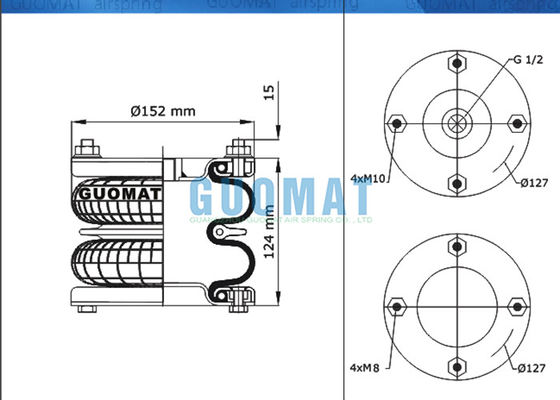

Technical Data : DB06219 Dunlop Air Spring
Intake hole is G1/2, center hole.
Top plate M10(Bolts),bottom plate M8(Nuts)
Rubber bellow diameter is Ø152mm
Center distance between Bolts/Nuts: Ø127mm
Air spring design height: Ø124mm
Girdle hoop: one piece
Tips for Maintaining Air Springs
Check for Leaks: A helpful way to keep your air suspension running for as long as possible is to check the air lines and air bags for leaks. A damaged line or bag can cause your vehicle to sag or tip to one side, and it can also cause premature compressor wear.
Regular inspection of air springs: Regular inspection of air springs for any anomalies such as rub marks, misalignment, or other obvious problems can catch most air spring problems at an early stage.
Ensure proper alignment: If it rubs against any other suspension component due to misalignment or other issues, the outside of the air spring may experience wear. Make sure the air spring is properly aligned to prevent this from happening.
Drain the air tank regularly: One of the most common questions about air suspension is what type of maintenance is involved. Draining condensation from the air tank and using air brake antifreeze help maintain the air suspension system in harsh winter conditions.
Clean air springs properly: Clean air springs with an approved cleaning product such as soap and water, isopropyl alcohol, ethanol, and methanol. Unapproved cleaning products can damage the finish of the air spring and shorten its life.
Convoluted Air Spring
DUNLOP | DESCRIPTION | CROSS |
6''x2 SP917 | Rubber Bellow Only | AIRREX 2K-150 |
6‘’x2 | Top side only clamp rings M10(Bolts) | AIRREX 2K-150 |
6''x2 | Top/Bottom side only clamp rings M10(Bolts) | AIRREX 2K-150 |
6''x2 SP1482 | Top/Bottom plate M10(Bolts) | AIRREX 2K-150 |
6''x2 | Rubber Bellow only | AIRREX 2K-150 |
6''x2 | Top plate M10(Bolts),Bottom plate M8(Nuts) | AIRREX 2K-150 |
6''x2 | Top/Bottom plate M10(Bolts) | AIRREX 2K-150 |
