| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 2B6X3 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $99.9-159.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Warranty: | 12 Months | Material: | High Quality Rubber |
|---|---|---|---|
| Application: | Scissors Lift And Tilt Table | Usage: | Industrial Punching Equipment |
| OEM: | NORGREN M/31063 | Air Inlet: | G1/2 |
| Min. Pressure: | 0 Bar | Other Name: | Convoluted Air Spring Bag |
| High Light: | Flange Connection Industrial Air Spring,Industrial Air Spring Triple Convolution |
||
6''X3 Flange Connection Air Spring FT76-20 DS ContiTech Triple Convolution Air Actuator Assembly Parts
Product Description
Flange air spring is a kind of air spring installed with flange. The size of GUOMAT 6X3 air spring refers to Continental FT76-20 DS CR. Manufactured with high quality materials and extreme craftsmanship, 100% tested before shipment.
Air Spring Cross Reference
GUOMAT 6X3 Reference Firestone W01-R58-4095
GUOMAT 6X3 Reference Firestone W01 R58 4095
GUOMAT 6X3 Reference Firestone W01R584095
GUOMAT 6X3 Reference Firestone WO1-R58-4095
GUOMAT 6X3 Reference Firestone WO1 R58 4095
GUOMAT 6X3 Reference Firestone WO1R584095
GUOMAT 6X3 Reference Contitech FT76-20
GUOMAT 6X3 Reference Contitech FT 76-20
GUOMAT 6X3 Reference Contitech FT76-20 DS
GUOMAT 6X3 Reference Contitech FT 76-20 DS
GUOMAT 6X3 Reference Dunlop SP2861
GUOMAT 6X3 Reference Dunlop SP 2861
GUOMAT 6X3 Reference Dunlop 6''x3
GUOMAT 6X3 Reference Dunlop 6x3
GUOMAT 6X3 Reference Norgren M/31063
GUOMAT 6X3 Reference Norgren M 31063
GUOMAT 6X3 Reference Norgren M31063
Technical Data: 6X3 Triple Convolution Air Spring
|
Cover Diameter |
153.5mm |
|
Air Hole |
G1/2 |
|
Screw tooth specification |
4pcs screw tooth of M10 |
|
Center distance between screw teeth |
127mm |
|
Maximum outer diameter |
178mm |
|
Suitable installation distance |
195mm |
|
Maximum height |
285mm |
|
Minimum height |
95mm |
|
Compressed height |
190mm |
|
GUOMAT |
FIRESTONE |
CONTITECH |
DUNLOP |
NORGREN |
|
2B6X2 |
|
FT76-20DI |
SP2923 |
PM/31063 |
|
2B6X2 |
W01R584095 |
FT76-20DS |
SP2861 |
M/31063 |
Our Technical Advantages
Friction-free operation, maintenance-free, lubrication-free, suitable for short strokes, heavy load conditions, high vibration isolation performance, simple and compact installation.
Features
While the traditional steel coil spring is shock-absorbing, it will also produce self-vibration due to the impact of objects. This product uses high-quality imported rubber to avoid this problem.
The vibration action area of the air spring of the punch press is the middle part of the rubber air bag, and the transmission rate of the vibration is very low, and the frequency from the upper end cover to the lower end cover can be reduced to 1HZ
Each of our products will be tested for air tightness before delivery to ensure the quality of the product, and there is no need to worry about gravel being embedded in the gaps of the equipment, which will affect the control accuracy and damage the equipment.

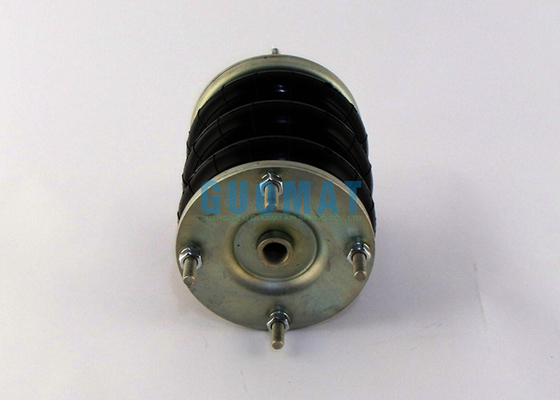

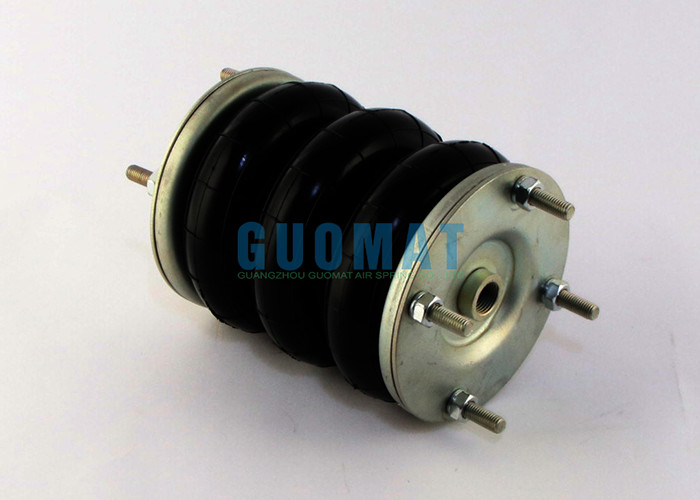

Real Pictures
