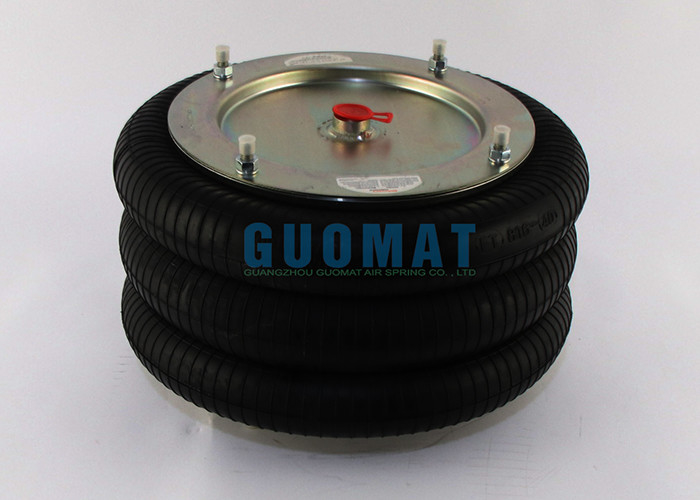

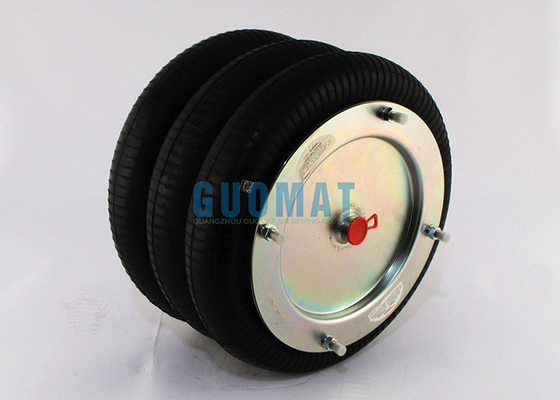

FT 816-40 DS M10 Triple Convoluted Rubber Air Spring Pneumatic System 16''x3 ContiTech Air Bellows

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	FT816-40

Payment & Shipping Terms:

Minimum Order Quantity:	6pcs
Price:	Negotiable
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Warranty:	12 Months	Material:	Rubber + Iron
Installation:	Screw Installation	Weight:	10.4kg
Brand:	Contitech Brand	Part Number:	FT 816-40 DS
Air Inlet:	G1/2= 25 Nm	Bolt:	M10=25 Nm
Highlight:	Triple Convoluted Rubber Air Spring , FT 816-40 Rubber Air Spring

16''x3 ContiTech Air Bellows FT 816-40 DS M10 Triple Convoluted Rubber Air Spring Pneumatic System

Product Description

Original Manufacturer: CONTITECH

Original Manufacturer Part Number: FT816-40

Original Manufacturer Part Number: FT 816-40

Original Manufacturer Part Number: FT816-40 DS

Original Manufacturer Part Number: FT 816-40 DS

Original Manufacturer Part Number: FT816-40 DS G1/2 M10

Original Manufacturer Part Number: FT 816-40 DS G1/2 M10

FT 816-40 DS Order Information

Order Number	Type
68051	Rubber bellow only
68053	With detachable top plate and G1/2 air inlet

Technical Data: Contitech FT816-40

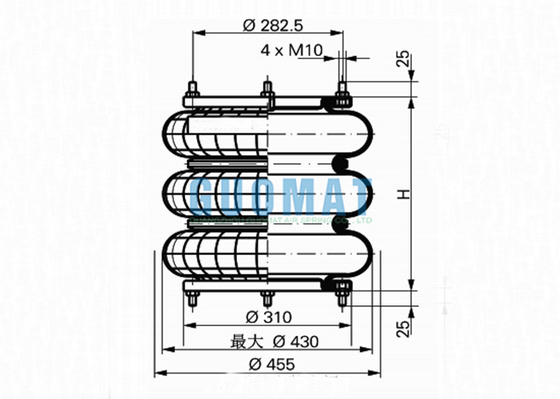

Continental FT816-40 DS air spring's upper cover has a diameter of Ø310 mm, 4 M10 bolts, G1/2 air holes, and the center distance between the bolts is Ø282.5 mm. The diameter of the lower cover plate is Ø310 mm, and there are 4 M10 bolts, and the center distance between the bolts is Ø282.5 mm. The maximum outer diameter of the air spring is Ø430 mm, the required installation space is Ø455 mm, the maximum height is 550 mm, the minimum height is 120 mm, the recommended height is 475 mm, and the compressed height is 430 mm.

Cross Reference Numbers

Cross Firestone W01-R58-4068,W01R584068,W01-R58-4068,WO1-R58-4068,WO1R584068,WO1-R58-4068

Cross Dunlop 16x3,16X3,16''x3,16''X3

Cross Dunlop SP2141,SP 2141,sp2141,sp 2141

Cross Norgren M/31163,M31163,M 31163,m/31163,m31163,m 31163

Contitech Triple Convoluted Bellows

Model		min.design height(in)	max diameter (in)	max stroke (in)	force at p=116psi			connection part variant
Model		min.design height(in)	max diameter (in)	max stroke (in)	min.height(lb)	half stroke(lb)	max.stroke(lb)	connection part variant
FT 22-6 DI CR	2 3/4x3	3.54	3.15	2.36	606.98	449.62	179.85	1
FT 44-15 DI CR	4 1/2x3	3.54	4.92	4.33	1551.18	1011.64	517.06	2
FT 76-20 DI CR	6x3	3.94	6.89	7.48	3304.69	1978.32	786.83	3
FT 76-20 DS CR	6x3	3.74	6.89	7.48	3304.69	1978.32	786.83	4
FT 138-26 DS	8x3	3.94	9.06	9.84	5530.30	3349.68	1551.18	4
FT 210-32 DS	10x3	3.94	10.63	12.99	7935.75	4451.22	1775.99	4
FT 412-32 DS	12x3	3.94	12.99	12.99	12274.57	7800.87	3574.46	4
FT 614-32 DS	14x3	3.94	15.75	14.96	17782.38	12004.80	4316.33	4
FT 816-40 DS	16x3	4.72	16.93	16.93	19266.12	13488.53	5507.82	4
