| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | FS210-10 DS G1/2 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $49.9-59.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Contitech: | FS 210-10 DS | Material: | Rubber + Steel |
|---|---|---|---|
| Warranty: | 12 Months | Package: | Carton/Cartons |
| Weight: | 4.1KG | Air Hole: | G1/2 |
| Install: | Stud Bolt Mounting | Cross: | W01R584057 |
| High Light: | W01-R58-4057 Industrial Air Spring,Bellows Style Industrial Air Spring |
||

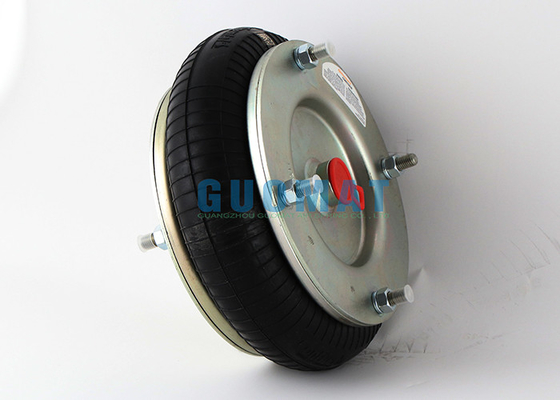

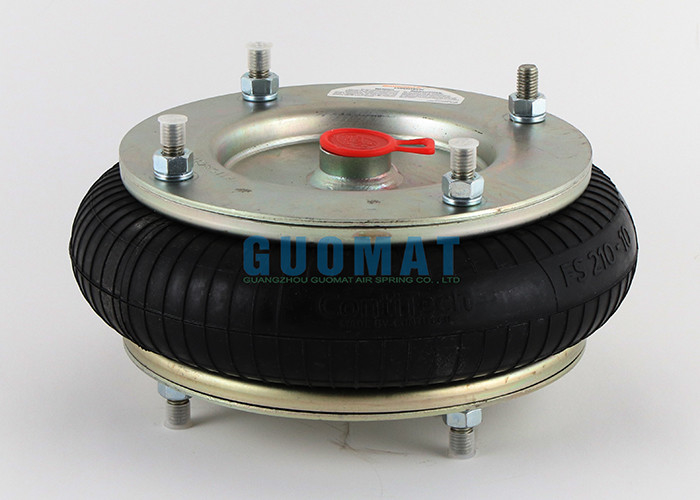

4.1KG ContiTech Industrial Air Spring FS 210-10 DS Firestone W01-R58-4057 Bellows Style Airbags Stud Bolt Mounting
Product Description
The FS 210-10 ContiTech air spring is a specific model of the air actuator manufactured by ContiTech. It is a single convolution air spring designed for use in a variety of pneumatic applications. ContiTech air actuators are known for their high quality and durability. They are constructed of high quality materials with elastomer bellows vulcanized for added strength and reliability. These air actuators are easy to install, reliable, maintenance-free and cost-effective.
Technical Data: FS210-10 Single Convoluted Air Spring

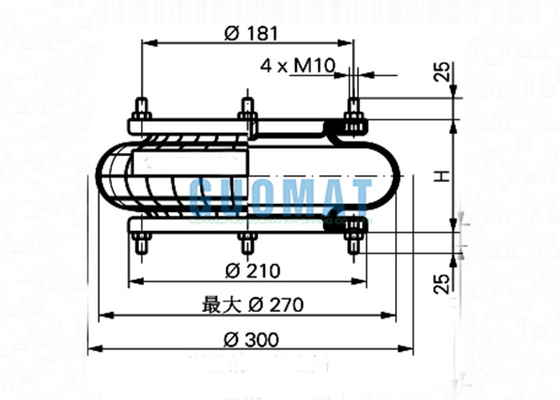

The FS210-10 DS air spring is a single convoluted type. It is assembled from the upper and lower cover plates and the leather bag. The diameter of the cover plate is Ø210 mm. The upper and lower cover plates are respectively equipped with 4 screws. The model of the screws is M10, and the distance between the screws is Ø181 mm. The center of the upper cover is the G1/2 air intake hole. The maximum outer diameter of the air spring is Ø270 mm, the required installation space is Ø300 mm, the maximum height is 150 mm, the minimum height is 50 mm, the natural height is 120 mm, and the compressed height is 100 mm.
Original Manufacturer: CONTITECH
Original Manufacturer Order Number: 64704
Original Manufacturer Part Number: FS210-10 / FS 210-10 / FS210 10
Original Manufacturer Part Number: FS210-10 DS / FS 210-10 DS
Original Manufacturer Part Number: FS 210-10 1/2 M10
Original Manufacturer Part Number: FS 210-10 DS 1/2 M10
Original Manufacturer Part Number: FS 210-10 DS G1/2
Original Manufacturer Part Number: FS 210-10 DS G1/2 M10
Comparable to: W01-R58-4057 Firestone
Comparable to: W01 R58 4057 Firestone
Comparable to: W01R584057 Firestone
Comparable to: 10''x1 / 10x1 Firetsone Style
Comparable to: 1B10-2350 / 1B10 2350 Goodyear
Comparable to: 578-91-3-2350 / 578 91 3 2350 / 5789132350 Goodyear Flex No.
Comparable to: 10''x1 / SP2523 Dunlop FR
Comparable to: A111270007 / A 11127 00 07 Dunlop UK(Pneuride)
Comparable to: M/31101 / M31101 / M 31101 Norgren
Pneumatic Applications - Static Eigenvalues
Force (kN)
| Pressure | Bar | 3 | 4 | 5 | 6 | 7 | 8 | Volume V(l) |
| High H (mm) | 120 | 6.9 | 9.4 | 11.9 | 14.4 | 16.9 | 19.3 | 3.4 |
| 100 | 8.9 | 12.1 | 15.2 | 18.3 | 21.4 | 24.4 | 2.9 | |
| 80 | 10.9 | 14.6 | 18.3 | 22.0 | 25.7 | 29.3 | 2.2 | |
| 60 | 12.2 | 16.4 | 20.4 | 24.6 | 28.7 | 32.7 | 1.4 |
