| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 3B14-374 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $99.9-159.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Item Name: | Goodyear Air Spring | Warranty: | 12 Months |
|---|---|---|---|
| Origin: | Mexico | Goodyear: | 3B12-320 |
| Sample: | Available | Package: | Neutral Box Or As Customers' Request |
| Color: | Black | Type: | Suspension Air Springs |
| High Light: | Triple Convoluted Bellows Goodyear Air Bag,3B14-374 Goodyear Air Bag,578-932-374-00000 Goodyear Air Bag |
||
Goodyear Triple Convoluted Bellows Type Air Bag 3B14-374 Suspension Lift Air Spring 578-932-374-00000
Product Description
Brand: Goodyear
Spring Origin: Mexico
Goodyear Number: 3B14-374
Goodyear Number: 3B 14-374
Goodyear Number: 3B14 374
Goodyear Number: 3B 14 374
Goodyear Bellows Number: 578-932-374-0000
Goodyear Bellows Number: 578 932 374 0000
Goodyear Bellows Number: 5789323740000
Advantages of Air Springs
1. Excellent manufacturing materials
2. Effectively reduce vibration
3. Easy installation
4. Comfortable and stable
5. Long life
6. Solve abnormal noise
Company Profile
Guangzhou Guomat Air Spring Co., Ltd. is founded in 2008, the company covers an area of 20000 square meters, registered capital is 10 million yuan, the existing various types of professional and technical personnel is 85 people.The company is located in Guangzhou, about 15min’s drive from Baiyun Airport. and our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles’ seat, luxurious car and industrial machine field.
Goodyear Triple Convoluted Type Air Spring
|
Part Number |
Max.OD@100psi (inches) |
Design Load Range(Pounds) |
Design Load Range(Inches) |
Useable Stroke(inches) |
Min Comp Height(Inches) |
Bumper |
Air Fitting Size(In) |
|
3B12-304 |
13.0 |
860-7305 |
11.0-15.0 |
13.3 |
4.7 |
NO |
1/4 |
|
3B12-305 |
13.0 |
860-7305 |
11.0-15.0 |
13.3 |
4.7 |
NO |
3/4 |
|
3B14-351 |
15.5 |
1945-12100 |
10.5-12.5 |
10.9 |
7.3 |
YES |
1/4 |
|
3B14-353 |
15.5 |
1945-12100 |
10.5-12.5 |
10.9 |
7.3 |
YES |
3/4 |
|
3B14-354 |
15.5 |
1945-12100 |
10.5-12.5 |
13.5 |
4.7 |
NO |
1/4 |
|
3B14-361 |
15.5 |
1945-12100 |
10.5-12.5 |
13.5 |
4.7 |
NO |
3/4 |
|
3B15-375 |
16.5 |
2215-12830 |
10.5-12.5 |
12.3 |
4.7 |
NO |
1/4 |
|
3B15-376 |
16.5 |
2215-12830 |
10.5-12.5 |
9.7 |
7.3 |
YES |
1/4 |
|
3B15-377 |
16.5 |
2215-12830 |
10.5-12.5 |
12.3 |
4.7 |
NO |
3/4 |
|
3B15-378 |
16.5 |
2215-12830 |
10.5-12.5 |
9.7 |
7.3 |
YES |
3/4 |
FAQ
Q1. Are you a Manufacture factory?
A: Yes, We are the direct manufacture factory, located in Guangzhou China, Which is specialized in air spring in China for over 12years experience from 2008 years.
Q2. What is your main products?
A: Our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system.
Q3. Is the sample available?
A: Yes, Usually we send the samples by TNT,DHL,FEDEX or UPS, it will take around 3 days for our customers to receive them, but charge all customer will cost related to the samples, such as sample cost and airmail freight. We will refund our customer the sample cost after receiving its order.
Q4. Can i use my own logo and design on products?
A: YES,OEM is welcomed.
Q5. How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friends and we sincerely do business and make friends with them, no matter where they come from.

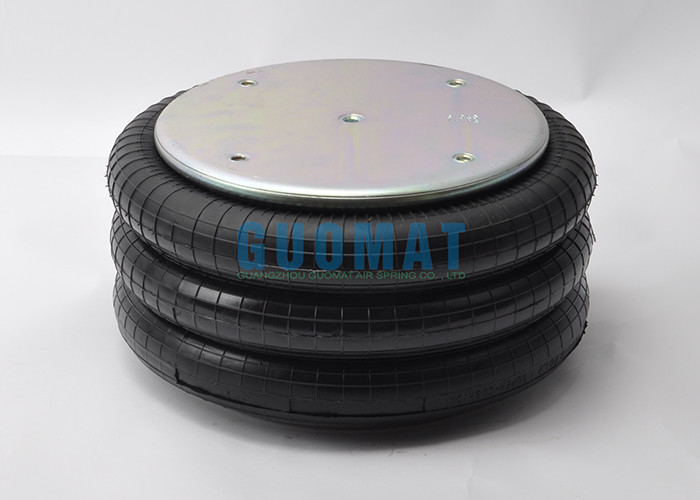

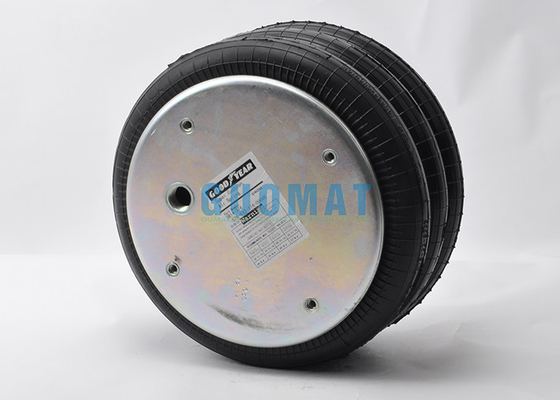

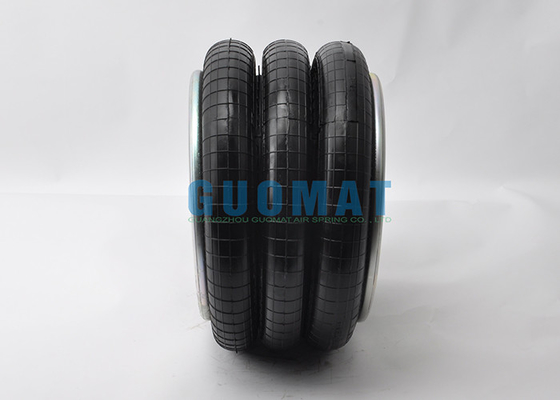

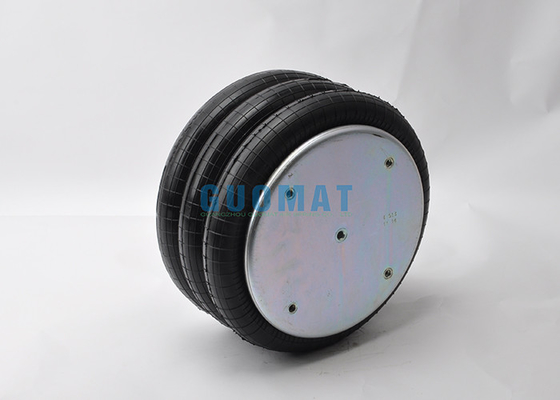

The Real pictures of Goodyear 3B14-374 Air Spring
