| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 2B15-375 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Item: | Double Convoluted Air Spring | Goodyear: | 2B15-375 |
|---|---|---|---|
| Origin: | Mexico | Sample: | Available |
| Package: | Neutral Box Or As Customers' Request | Color: | Black |
| Bumper: | NO | Other Name: | Air Spring,Air Bags |
| High Light: | Goodyear Super Cushion Air Spring,2B15-375 Super Cushion Air Spring,578-922-375-00000 Goodyear Air Spring |
||

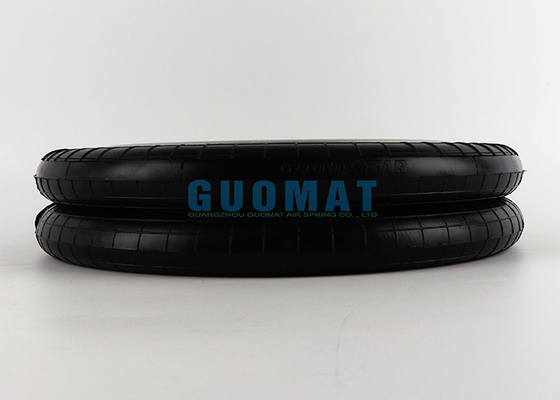

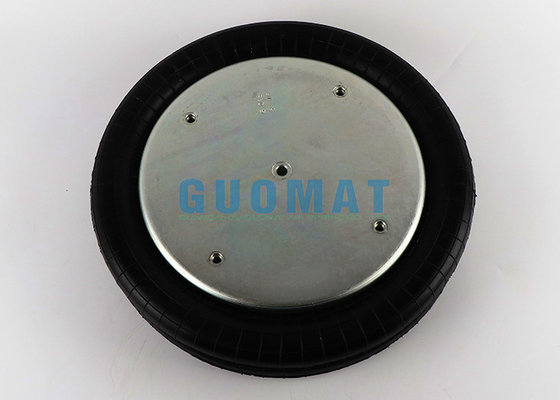

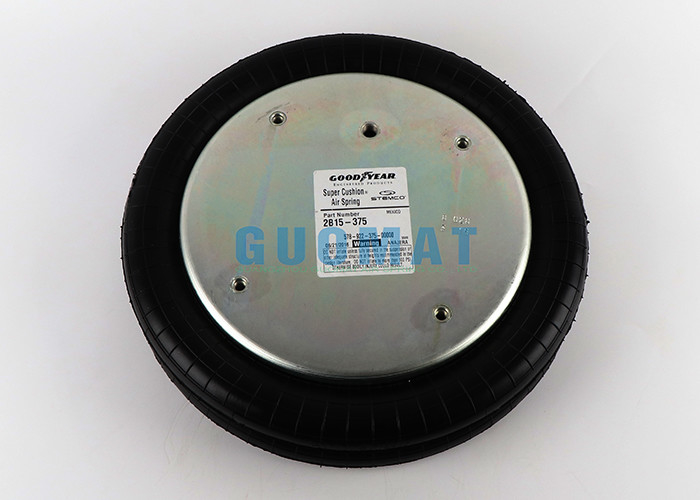

Goodyear Super Cushion Air Spring 2B15-375 Double Convoluted Air Bellow 578-922-375-00000
Product Description
2B15-375 Goodyear air spring is a double convolution air spring. It is designed to provide cushioning and support for a variety of load-bearing applications. Air springs are made from high-quality materials and are known for their durability and reliability.
Goodyear Part Number: 2B15-375
Goodyear Part Number: 2B 15-375
Goodyear Part Number: 2B15 375
Goodyear Part Number: 2B 15 375
Goodyear Bellows Number: 578922375
Goodyear Bellows Number: 578 922 375
Goodyear Bellows Number: 578-922-375
Goodyear Bellows Number: 578-922-375-00000
2B15-375 Goodyear air spring specifications and dimensions:
Usable Stroke: 9.3
Max Dia @ 100 psi In: 16.7
Min Ext Height Inches: 3.5
Max Ext Height Inches: 12.8
Bumper: NO
Air Fitting Size(in): 1/4 OS
Convolutions: 2
Force Available At Actuator Height Limit (Pounds)
| 100 psi | 4105 |
| 80 psi | 2970 |
| 60 psi | 2090 |
| 40 psi | 1270 |
Force Available At Compressed Height Limit (Pounds)
| 100 psi | 15675 |
| 80 psi | 12510 |
| 60 psi | 9350 |
| 40 psi | 6210 |
The Function of Air Spring
1. Load Support: The primary function of an air spring is to support the weight of the vehicle and its payload. Air springs are designed to withstand the vertical forces exerted by the weight of the vehicle and provide a cushioning effect.
2. Suspension adjustment: Air springs allow the suspension system to be adjusted. By changing the air pressure within the air springs, the vehicle's ride height and suspension stiffness can be adjusted. This allows the driver to customize the vehicle's handling characteristics and adapt to different road conditions or loads.
3. Vibration reduction: Air springs provide a buffering effect, helping to absorb and suppress vibrations caused by uneven road surfaces or other external disturbances. This improves overall ride comfort for vehicle occupants.
4. Enhanced durability: Compared to traditional coil springs or leaf springs, air springs are generally more durable and able to resist sagging or deformation over time. They can withstand heavy loads and provide longer service life.
Goodyear Super Cushion Air Spring
|
Single Convoluted |
Double Convoluted |
Triple Convoluted |
|
1B5-500 |
2B6-530 |
3B12-304 |
|
1B5-502 |
2B6-531 |
3B12-305 |
|
1B5-503 |
2B6-532 |
3B14-351 |
|
1B5-510 |
2B6-535 |
3B14-353 |
|
1B5-512 |
2B6-536 |
3B14-354 |
|
1B5-520 |
2B7-540 |
3B14-361 |
|
1B5-521 |
2B7-541 |
3B15-375 |
|
1B6-530 |
2B7-542 |
3B15-376 |
|
1B6-531 |
2B7-545 |
3B15-377 |
|
1B6-532 |
2B7-546 |
3B15-378 |
|
1B6-535 |
2B8-550 |
- |
|
1B6-536 |
2B8-552 |
- |
|
1B6-538 |
2B8-553 |
- |
|
1B7-540 |
2B8-554 |
- |
|
1B7-541 |
2B9-200 |
- |
|
1B7-542 |
2B9-201 |
- |
|
1B8-550 |
2B9-204 |
- |
|
1B8-551 |
2B9-205 |
- |
|
1B8-552 |
2B9-208 |
- |
|
1B8-553 |
2B9-216 |
- |
|
1B8-554 |
2B9-250 |
- |
|
1B8-560 |
2B9-251 |
- |
|
1B8-562 |
2B9-253 |
- |
|
1B8-563 |
2B12-309 |
- |
|
1B8-564 |
2B12-318 |
- |
