FS200-10 ContiTech Industrial Air Spring Bellows Actuator G1/4 Air Fitting Drying Equipment

FS200-10 ContiTech Industrial Bellows Actuator G1/4 Air Fitting Drying Equipment Air Spring


Product Description

The FS200-10 ContiTech is an industrial air spring or air actuator manufactured by Continental ContiTech. GUOMAT 1B20010-1/4 is produced according to the specifications of FS200-10 ContiTech. It is used for vibration isolation and as an isolation buffer in various applications.

Contitech FS200-10 Features and Specifications

• The FS200-10 CI air spring features a single bellows design.
• It is available in different inlet sizes such as G3/4 and G1/4.
• Air springs are made of rubber and steel.
• Its pressure range is 0.2-0.8 MPa (29-116 psi) or 2-8 MPa (290-1160 psi), depending on the model.
• The FS200-10 CI air spring weighs approximately 1.6 kg (3.5 lbs).

Original Equipment Manufacturer Number

Contitech FS200-10

Contitech FS 200-10

Contitech FS200-10 CI

Contitech FS 200-10 CI

Contitech FS200-10 CI G1/4 OS

Contitech FS 200-10 CI G1/4 OS

Contitech FS200-10 CI Technical Data

GUOMAT 1B20010-1/4 Technical Data

Cover diameter: 160 mm
Air hole specification: G1/4
Threaded hole specifications: M10X1.5
Distance between air hole and threaded hole: 44.5mm
Center distance between threaded holes: 89mm
Rubber Bellows Diamater: 220mm
Natural height: 110mm

Convolution: 1

Weight: 2.778KG

Packing length: 24cm
Packing width: 24cm
Packing height: 24cm

Packing quantity: 3 Pieces

Application Areas
1B20010-1/4 GUOMAT air springs are commonly used in a variety of industrial applications, including:

• Vibration isolation system
• air suspension system
• Industrial machinery and equipment
• Automobile and transportation industry

Structure

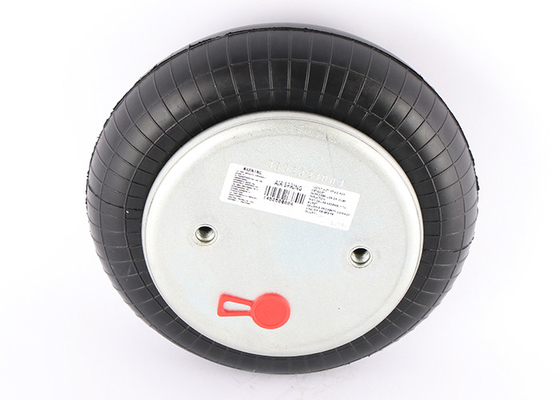

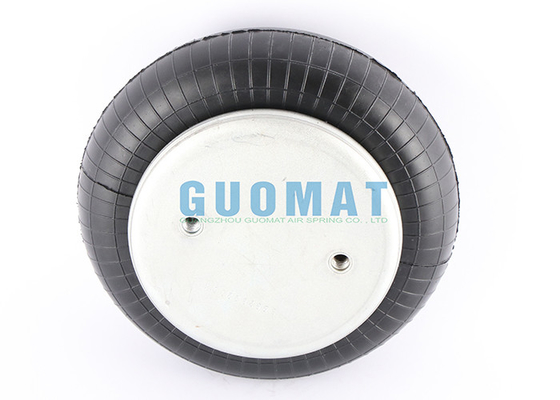

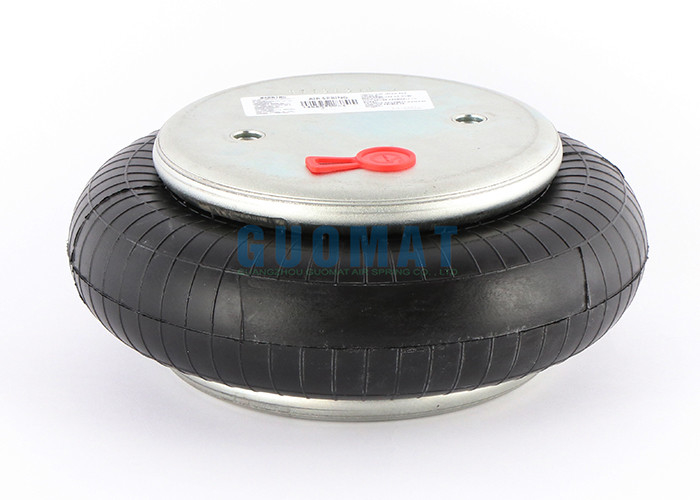

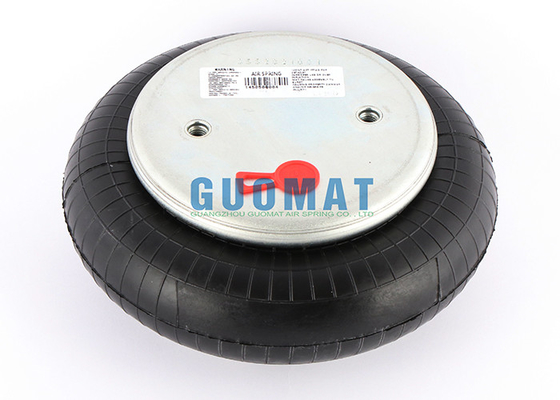

1B20010-1/4 Single Convolution Air Spring Real Pictures
