| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 1B5510 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | $69.9-89.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Product Name: | Super Cushion Air Spring | Warranty: | 12 Months |
|---|---|---|---|
| Material: | Rubber | Function: | Reduce Shock |
| Spring Type: | Single Convoluted Air Bag | Goodyear: | 1B5-510 |
| Goodyear Bellows: | 579-91-3-501 | Package: | Strong Carton Box |
| High Light: | 1B5-510 Goodyear Convoluted Type Air Shock,579-91-3-501 Convoluted Type Air Shock |
||

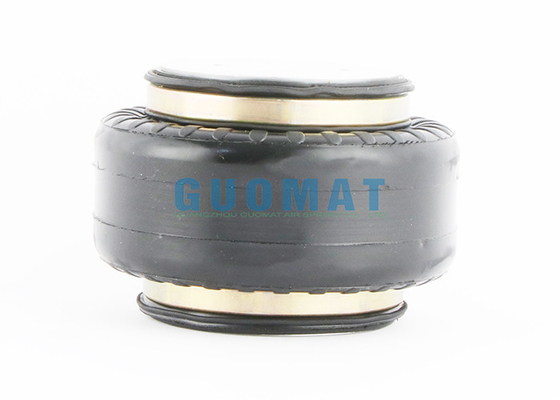

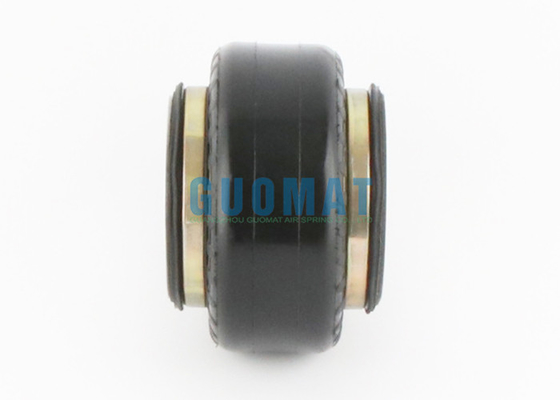

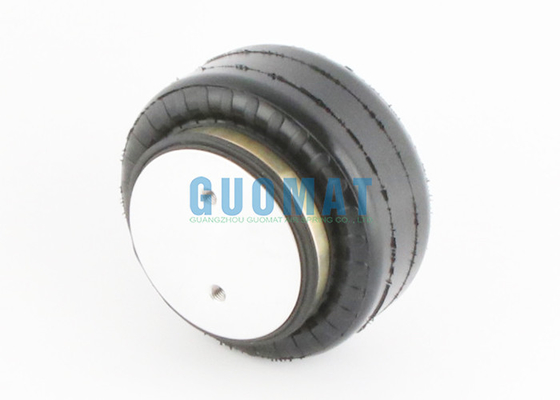

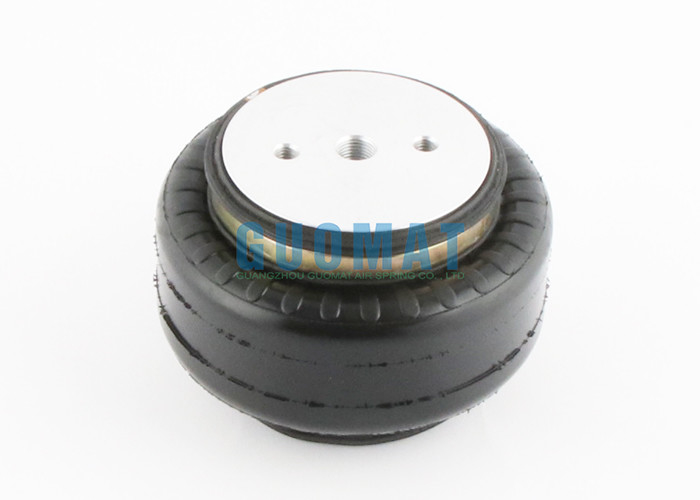

1B5-510 Goodyear Convoluted Type Air Shock 579-91-3-501 Industrial Replacement Air Spring
Product Description
Item | Value |
OEM.NO. | 1B5-510 |
Type | Air Spring |
Warranty | 12 Months |
Truck Model | Heavy Duty Truck |
Color | Black |
Place of Origin | Guangzhou,China |
Certification | ISO/TS16949:2009 |
Material | Rubber+Steel |
Packing | Neutral Packing |
MOQ | 1 Pcs |
Quality | High-Quality |
Position | Auto/Truck parts/Industrial Machine |
Application | Auto Suspension Systems |
Cross Reference
GUOMAT 1B5510
GUOMAT 1B 5510
GOODYEAR 1B5-510
GOODYEAR 1B 5-510
GOODYEAR 1B5 510
GOODYEAR 1B 5 510
GOODYEAR 579913501
GOODYEAR 579 91 3 501
GOODYEAR 579-91-3-501
Enidine Inc. YI-1B5-510
Enidine Inc. YI 1B5 510
Enidine Inc. YI1B5510
Detailed Technical Data Parameters
| GUOMAT 1B5510 | GOODYEAR 1B5-510 |
| Cover diameter: 85mm Threaded hole: M8*15mm Air hole: G1/4 Center distance between threaded holes: 44.5 mm Maximum outer diameter (at 0.7Mpa): 150mm Maximum height: 120mm Minimum height: 50mm Compression height: 70mm | Cover diameter: 3.75 inches Threaded holes: Tapped Hole on Top Retainers – 3/8-16, on Pistons – 1/2-13 Center-to-center distance between threaded holes: 1.75 inches Air hole: 1/4NPTF Maximum height: 4.8 inches Minimum height: 1.8 inches Compressed height: 3 inches |
About Air Spring
The air spring is a carefully designed flexible part of rubber and curtain, which contains a certain volume of compressed air column. The air spring itself does not provide force and support load, but is completed by the compressed air column. The air spring is also equipped with a metal end sealing plate, and the standard double-wire mesh layer is composed of four layers.
Trucks and trailers equipped with air springs are far less likely to suffer "wear and crack" failures than trucks with leaf springs. This means longer cab and vehicle life, lower operating costs, less downtime and more.
On top of that, the truck rides better, which is also important for a truck loaded with cargo. Trucks equipped with air springs experience less cargo damage than trucks with traditional leaf springs, thus improving economics. After installing the air spring, the driver's driving will be more comfortable, more efficient, and less prone to fatigue.
Goodyear Single Convoluted Air Spring
