| Place of Origin: | GuangDong, China |
| Brand Name: | NORGREN |
| Certification: | ISO/TS16949:2009 |
| Model Number: | M/31123 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Spring Type: | Triple Convoluted Air Bag | Item: | Flange Air Spring |
|---|---|---|---|
| Material: | Rubber And Steel | Function: | Reduce Shock |
| Net Weight: | 6.9KG | Port Size: | G1/2 |
| Number Of Convolutions: | 3 | Brand: | Norgren |
| High Light: | Three Layers Industrial Air Spring,NORGREN M/31123 Industrial Air Spring |
||
NORGREN M/31123 Three Layers Industrial Air Spring 12" x 3 Dunlop Air Bellow With Flange
Product Description
Norgren M/31123 air spring is a triple corrugated air spring produced by Norgren. It is commonly used in a variety of applications such as trucks, trailers, vibrating conveyors, large dryers, centrifuges, coordinate measuring tables, machinery and commercial washing machines. This air spring is designed for short-stroke, high-force applications and provides high levels of vibration isolation. It operates frictionless and requires no maintenance or lubrication
|
Norgren |
M/31123 |
M 31123 |
M31123 |
|
Contitech |
FT 412-32 DS |
FT 412-32 |
FT412-32 |
|
Firestone |
W01-R58-4062 |
W01R584062 |
W01 R58 4062 |
|
Dunlop |
12''X3 |
SP1542 |
12X3 |
Technical Specifications and Details of the Norgren M/31123 Air Spring
Style: 12" x 3"
Nut / Blind Nut: Top and bottom cover plates have 4pcs X M10 screws
Gas Hole / Air inlet: G1/2
Top Cover Plate Diameter (Width): 260 mm
Bottom Cover Plate Diameter (Width): 260 mm
Center Distance Between Screws:232mm
The Rubber Bellows Max Diameter:325mm
Maximum Installation Space:350mm
Material of top and bottom plates: Steel
Rubber Bellows Stroke: 100mm-430mm
Pneumatic Applications - Static Characteristic Values
Force F [kN]
|
Pressure P |
Bar |
3 |
4 |
5 |
6 |
7 |
8 |
Volume V[l] |
|
Height H |
350 |
9.8 |
13.2 |
16.7 |
20.5 |
24.3 |
28.4 |
17.2 |
|
300 |
12.3 |
16.5 |
20.8 |
25.3 |
29.9 |
34.7 |
15.3 |
|
|
250 |
14.4 |
19.3 |
24.2 |
29.4 |
34.5 |
39.9 |
12.9 |
|
|
200 |
16.4 |
22.0 |
27.7 |
33.5 |
39.4 |
45.6 |
10.0 |
|
|
150 |
18.8 |
25.1 |
31.4 |
37.8 |
44.2 |
50.7 |
7.2 |
Here are Some Key Points about the Function of Norgren Air Springs
Function: The air spring in Norgren products is used for actuation, specifically in 3/2 (three-way, two-position) valve configurations .
Actuation: The air spring actuation means that the valve is controlled by the force of compressed air acting on a spring mechanism.
Operation: The Norgren air spring operates in a multi-directional manner, allowing for versatile control of the flow of compressed air.
Materials: The body of Norgren air springs is typically made of aluminum alloy, while the elastomers (rubber components) are made of nitrile rubber.
Applications: Norgren air springs are commonly used in industrial compressed air systems.

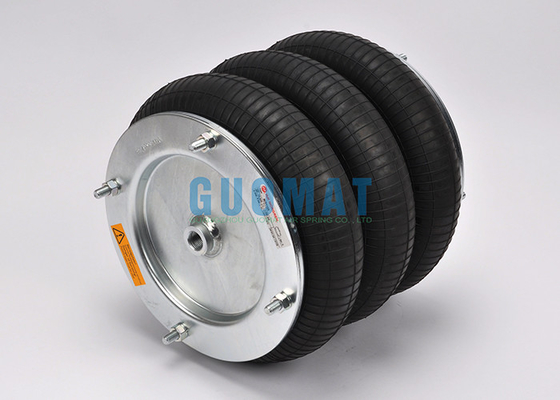

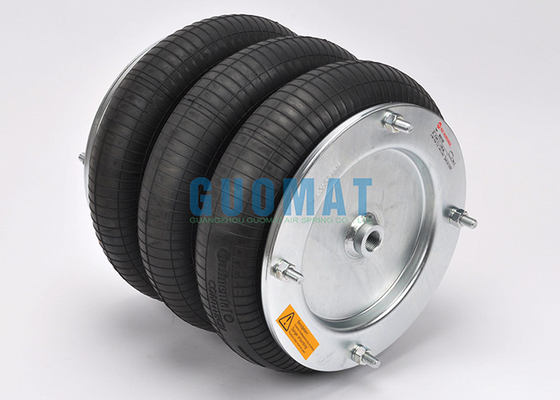

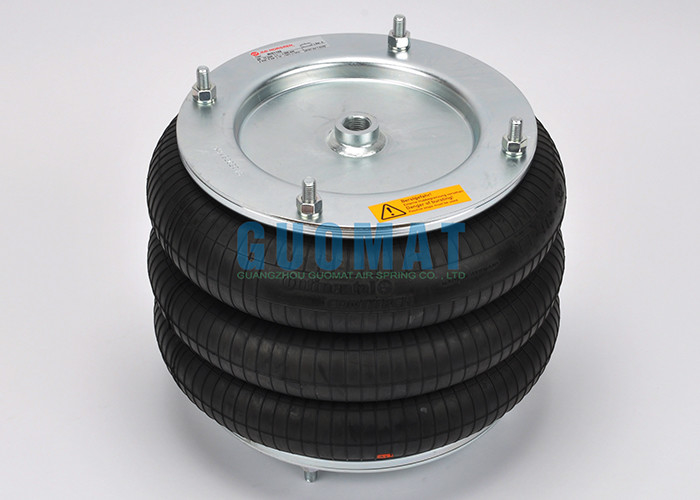

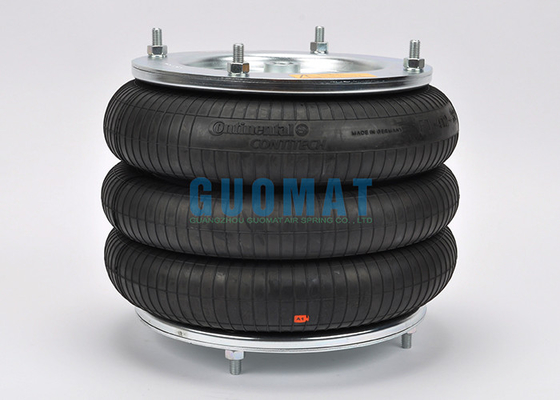

The Real Pictures of Norgren M/31123
