| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 2B7401 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $59.9-69.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Product Name: | Air Spring, Air Bags, Air Bellows, Air Suspension Bellow | Material: | Rubber Bellow And Aluminum Cover |
|---|---|---|---|
| Warranty: | 1 Year Warranty | Spring Type: | Air Filled |
| Application: | For Industrial Machine | Goodyear: | 2B12-320 |
| Contitech: | FD330-22 337 | Package: | Cartons |
| High Light: | FD 330-22 337 Industrial Air Spring,W01-358-7401 Industrial Air Spring,Industrial Air Spring With Stud Connection |
||

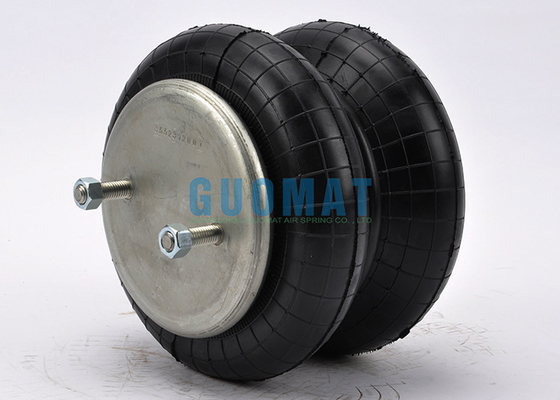

FD 330-22 337 Contitech Double Convoluted Industrial Air Spring W01-358-7401 Firestone Air Balloon With Stud Connection
Product Description
GUOMAT Part Number 2B7401 refers to Firestone W01-358-7401 air spring, which is made of high-quality materials and has high durability. Air springs can be used in vehicle suspensions to reduce vibration and noise, increase ride comfort, and can also be used in industrial machinery and equipment.
|
Manufacturer |
Part Number |
|
Firestone Contitech Goodyear Goodyear Triangle |
W01-358-7401/W01 358 7401/W013587401 FD 330-22 337/FD330-22 337 2B12-320/2B 12-320 578923309/578 92 3 309/578-92-3-309 6316/4334 |
|
GMC GMC Watson&Chalin VOL-VO/GM Heavy Duty Truck Navistar SAF Holland |
711954 2076095 AS-0014 2076095 554789C1 57007401 |

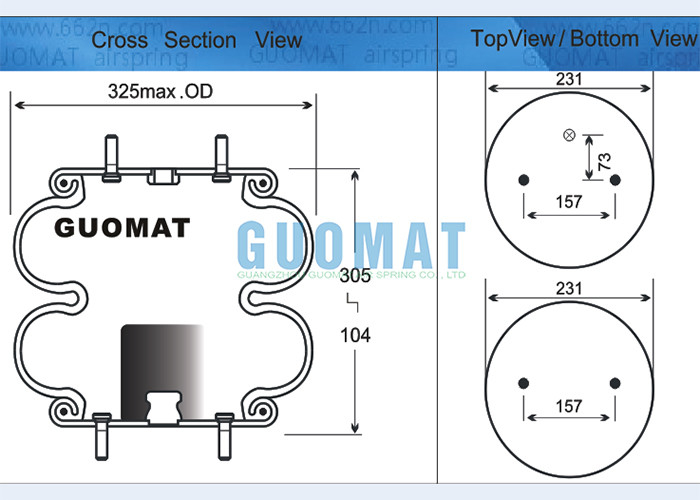

Technical Data: GUOMAT NO. 2B7401
The top cover plate diameter: 231mm
Center distance between top cover screws: 157mm
The distance between the top cover screw and the air hole: 73mm
The bottom cover plate diameter: 231mm
Center distance between bottom cover screws: 157mm
Max. outer diameter: 325mm
max,height: 305mm
min.height: 305mm
Features of the Firestone W01-358-7401 Air Spring
The Firestone W01-358-7401 air spring is a triple convoluted rubber air spring.
It is designed to provide support and cushioning for heavy loads, improving ride comfort and stability.
The air spring is made of high-quality materials to ensure durability and long-lasting performance.
Repalce:
GMC 711954
GMC 2076095
VOL-VO/GM Heavy Duty Truck 2076095
Watson & Chalin AS-0014
Applications of the Firestone W01-358-7401 Air Spring
The Firestone W01-358-7401 air spring is used in various vehicles, including trucks, trailers, and buses.
It is commonly used in the suspension systems of these vehicles to provide load support and improve ride quality.
Availability and Compatibility
The Firestone W01-358-7401 air spring is available for purchase from various suppliers and retailers.
It is compatible with specific vehicle models and applications, so it is important to ensure compatibility before making a purchase.
22 Type Firestone Air bellow
| Bellow No. | Assembly No. | Bellow No. | Assembly No. |
| 22 | W01-358-7180 | 22 | W01-358-7181 |
| 22 | W01-358-7183 | 22 | W01-358-7185 |
| 22 | W01-358-7344 | 22 | W01-358-7400 |
| 22 | W01-358-7403 | 22 | W01-358-7404 |
| 22 | W01-358-7405 | 22 | W01-358-7406 |
| 22 | W01-358-7408 | 22 | W01-358-7409 |
| 22 | W01-358-7410 | 22 | W01-358-7423 |
| 22 | W01-358-7424 | 22 | W01-358-7429 |
| 22 | W01-358-7437 |
