2H200142 Double Convoluted Rubber Air Spring Black Flange Air Suspension Bags
Product Description
Effective Diameter | Minimum Compression Height | Maximum Height | Stroke |
Ø150mm | 78mm | 162mm | 84mm |
Brand: GUOMAT
Model: 2H200142
Item: Rubber Air Spring
Maximum outer diameter (at 0.7Mpa): Ø220mm
Design height: 142mm
Flange ring diameter: Ø180mm
Threaded hole specifications: 8-M10
Center distance between threaded holes: Ø152mm
Convolutions: 2
Carrying capacity | Inflation pressure | 0.2Mpa | 0.3Mpa | 0.4Mpa | 0.5Mpa | 0.6Mpa | 0.7Mpa | 0.8Mpa | Volume (0.7Mpa) dm3 |
Installation height | |||||||||
78 mm | 512 | 765 | 1025 | 1277 | 1537 | 1797 | 2057 | 1.28 | |
93 mm | 448 | 667 | 901 | 1133 | 1360 | 1592 | 1826 | 1.66 | |
108 mm | 392 | 593 | 801 | 1010 | 1216 | 1425 | 1633 | 2.02 | |
123 mm | 360 | 552 | 745 | 934 | 1127 | 1316 | 1504 | 2.34 | |
142 mm | 326 | 496 | 669 | 843 | 1019 | 1195 | 1371 | 2.66 | |
162 mm | 270 | 415 | 564 | 710 | 860 | 1010 | 1162 | 3.01 | |
183 mm | 213 | 323 | 449 | 568 | 686 | 812 | 938 | 3.23 | |
Stiffness and frequency at design height | vertical stiffness | 72 | 96 | 121 | 146 | 168 | 194 | 218 | |
Natural frequency | 2.35 | 2.20 | 2.13 | 2.08 | 2.03 | 2.02 | 1.99 | ||
141 | 132 | 128 | 125 | 122 | 121 | 119 |
Basic Parameters of Air Springs
Medium
Air spring designs can use compressed air or nitrogen. Air springs can also be filled with water. If water is to be filled, anti-rust agent must be added to protect the end cover
Pressure
Our rule of thumb:
1. The maximum pressure of the two-line mesh airbag is 7Bar
2. The maximum pressure of the high-strength air bag is 12Bar
We recommend a minimum safety factor of three times between maximum internal pressure and burst pressure. For example, if the required pressure is 7 bar, the burst pressure is ≥ 21 bar. For curved air springs, the bursting pressure decreases as the height increases. The maximum pressure of GUOMAT air springs is best limited to 7 bar, and the maximum pressure of high-strength air springs is best limited to 12 bar.
Temperature
1. Standard air bag: The working temperature of our company's standard industrial air spring is -37°C to 57°C.
2. We have a small number of industrial air springs that are entirely made of natural rubber. Its low-temperature working temperature can reach -53℃. Temperature range -53℃ to 57℃

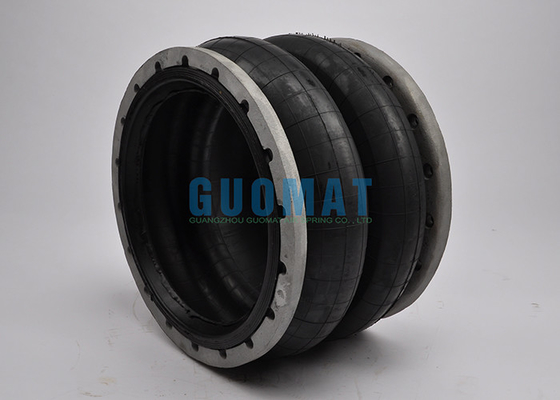

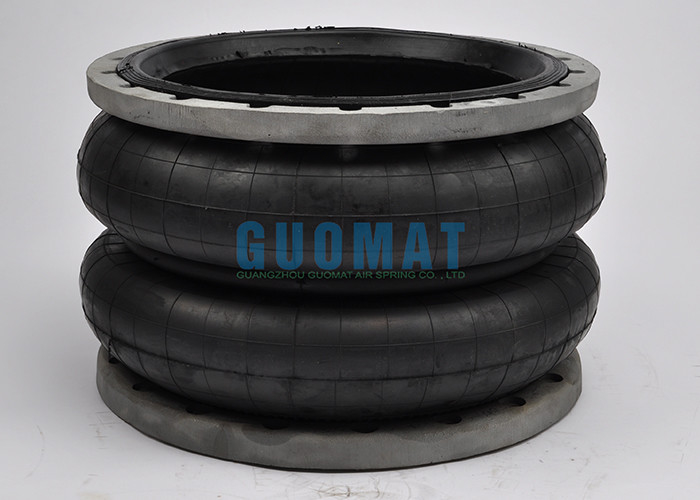

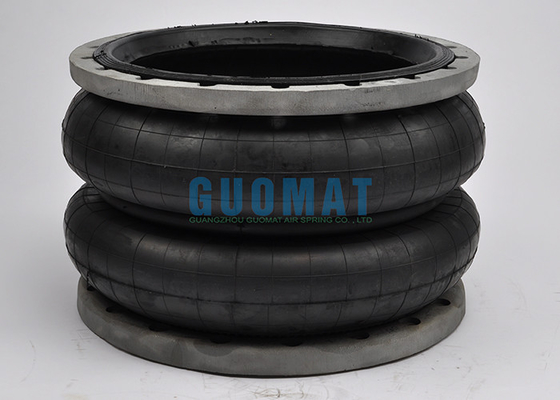

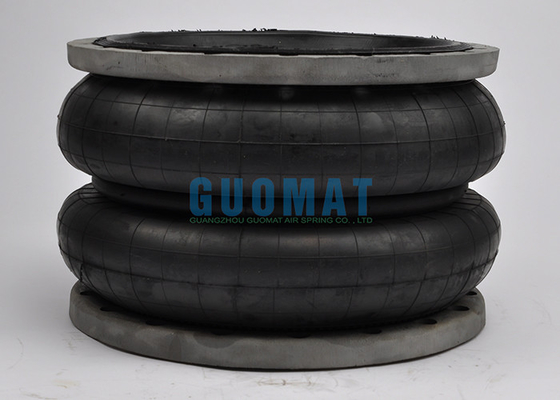

The Real Picture
