| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 2B7325 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $59.9-69.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Warranty: | 1 Year Warranty | Package Type: | Common Export Package |
|---|---|---|---|
| Type: | Double Convlolution Air Spring | Application: | Web Tensioning Device |
| Material: | Rubber | Air Inlet: | G3/4 |
| SAF Holland: | 57007325 | Contitech: | FD 120-20 509 |
| High Light: | W01-358-7325 Industrial Air Spring,2B8-150 Industrial Air Spring |
||

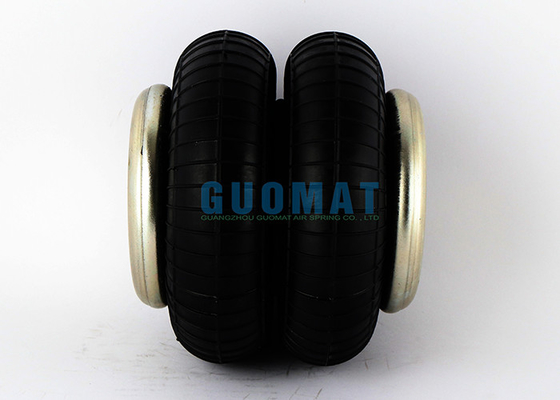

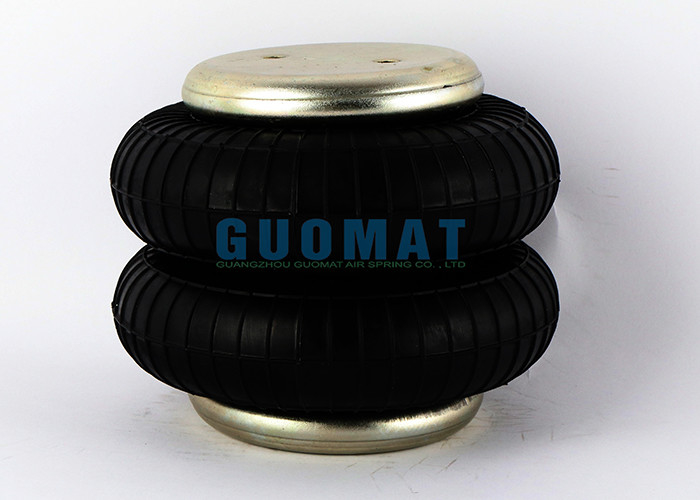

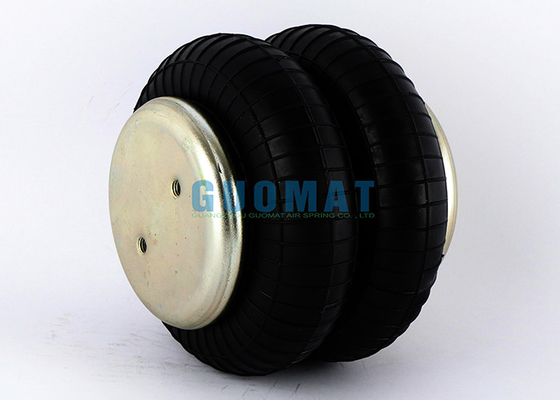

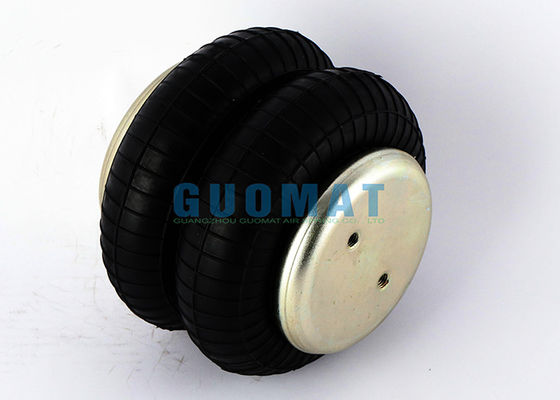

W01-358-7325 Firestone Rubber Bellow 26 Style 2B8-150 Goodyear Replacement Air Spring
Product Description
Top Cover Plate
Top cover diameter: Ø141mm
Number of threaded holes: 2pcs
Center distance between threaded holes: Ø70mm
Air connection: G3/4
Bottom Cover Plate
Bottom cover diameter: Ø141mm
Number of threaded holes: 2pcs
Center distance between threaded holes: Ø70mm
Rubber Bellow
Natural outer diameter: Ø193mm
Design height: 205mm
GUOMAT 2B7325 Cross Reference Number
| FIRESTONE | CONTITECH | GOODYEAR | TRIANGLE |
|
W01-358-7325 W013587325 W01 358 7325 Bellow No. 26 |
FD120-20 509 FD 120-20 509 FD120-20509 Order No.64601 |
2B8-150/2B 8-150 2B8-153/2B 8-153 2B8-550/2B 8-550 Bellow No.579923530 Bellow No.579 92 3 530 Bellow No.579-92-3-530 |
6392 4509 |
E.R.F : 1398567
American Carrier : 800 3006
Mac-k truck : 227QS32
Mac-k truck : 57QK1113
Hendrickson : Na1821
Hendrickson : S14395
Ridewell : 1003587325C
SAF Holland : 57007325
Sauer : P10754
Terbery : 21065660
Watson&Chalin : As0030
FD 120-20 509 Contitech Air Spring Technical Data
|
Top cover diameter |
5.50 |
|
Center distance between threaded holes |
2.75 |
|
Number of threaded hole specifications |
2x3/8-16UNC |
|
Air Inlet |
1/4-18NPTF |
|
Bottom cover diameter |
5.50 |
|
Center distance between threaded holes |
2.75 |
|
Number of threaded hole specifications |
2x3/8-16UNC |
|
Maximum outer diameter |
8.6 |
|
Maximum height |
10.60 |
|
Minimum height |
3.00 |
Continental FD120-20 Air Spring Assembly
|
Contitech No. |
Order Number |
Hole/Bolt/Stud |
Air Hole |
Replace |
|
FD 120-20 509 |
64601 |
2X3/8-16UNC |
1/4-18NPTF |
Firestone W01-358-7325 |
|
FD 120-20 715 |
64666 |
3/4-16 NUF,1/4-18NPTF 1/2-13UBC,2X3/8-16UNC |
- |
Firestone W01-358-7705 |
|
FD 120-20 736 |
64733 |
2X3/8-16UNC |
1/2-14 NPTF |
MAC 2380Z7 |
|
FD 120-20 795 |
66661 |
2X3/8-16UNC |
1/4-18NPTF |
Firestone W01-358-7689 |
The Drawing
