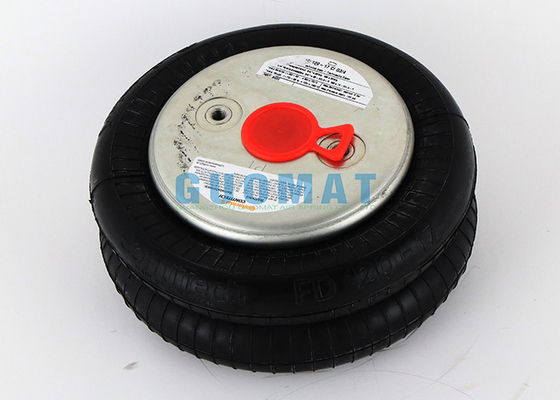

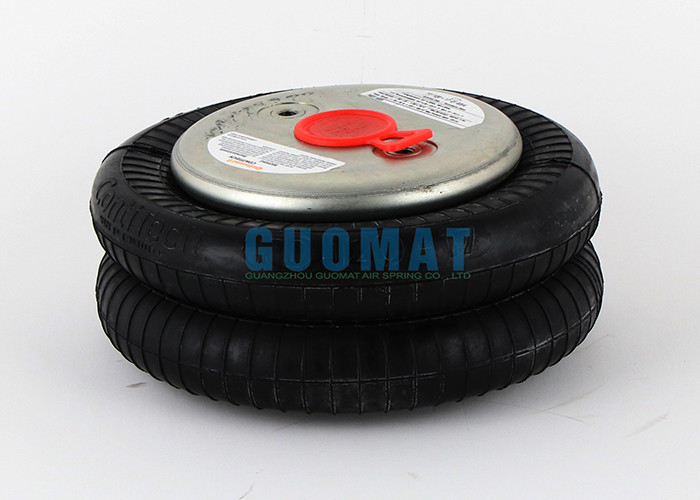

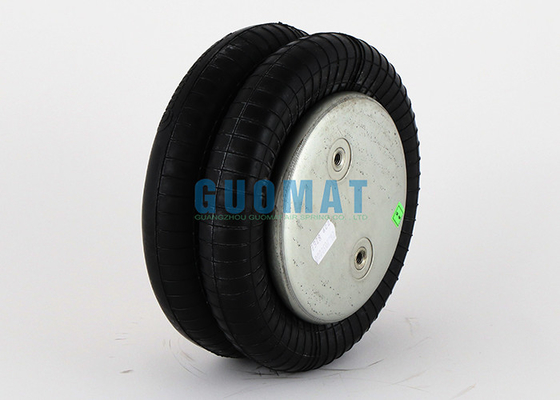

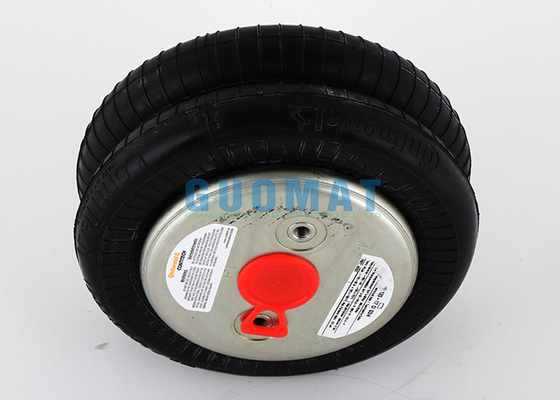

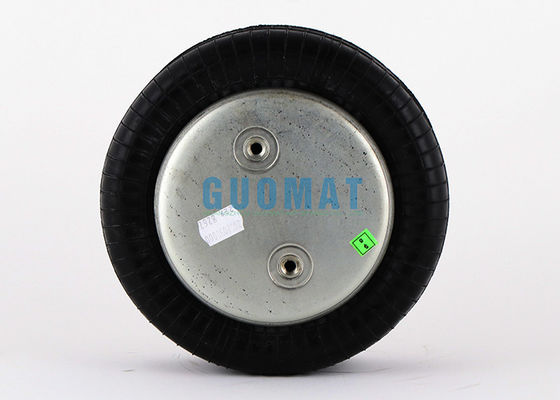

FD 120-17 CI Contitech Double Convolution Air Actuator 2B-181 Airkraft Rubber Air Shock
Product Description
The FD 120-17 CI Contitech air spring is a double convolution air actuator used in various industrial applications. It is manufactured by Contitech, a company that specializes in air spring systems.
Here are some key details about the FD 120-17 CI Contitech air spring:
Original Manufacturer: CONTITECH
Original Equipment Manufacturer Number: FD120-17
Original Equipment Manufacturer Number: FD 120-17
Original Equipment Manufacturer Number: FD120-17 CI
Original Equipment Manufacturer Number: FD 120-17 CI G3/4
Original Equipment Manufacturer Number: FD120-17 CI G3/4
Original Equipment Manufacturer Number: FD 120-17 CI G3/4 M8
Original Equipment Manufacturer Number: FD120-17 CI G3/4 M8
Cross Reference Numbers
Airkraft 113053
Airkraft 2B-181
Airkraft 2B 181
FD 120-17 CI Technical Data
|
Cover plate diameter |
Ø141mm |
|
Number and specification of threaded holes on top cover |
2XM8, 15mm |
|
Air connection |
G3/4, G1/4 |
|
Center distance between threaded holes on top cover |
70mm |
|
Number and specifications of threaded holes on the bottom cover |
2XM8, 15mm |
|
Center distance between threaded holes on bottom cover |
70mm |
|
Maximum outer diameter |
Ø215mm |
|
Suitable installation diameter |
Ø230mm |
|
Recommended height |
200mm |
|
Maximum height |
230mm |
|
Minimum height |
75mm |
|
Compression height |
155mm |
Purchase Order Data
| Type | Order No. |
| Rubber Bellows Only | 60221 |
| With crimped plates,G1/4 air inlet 0 mm excentrical | 61361 |
| With crimped plates,G3/4 air inlet 0 mm excentrical | 2682030000 |
Other Contitech Air Spring
Contitech FD 120-20 715
Cross-reference Firestone W01-358-7705
Contitech FD 120-20 736
Cross-reference MAC 2380Z7
Contitech FD 120-20 795
Cross-reference Firestone W01-358-7689
Contitech FD 200-19 310
Cross-reference Firestone W01-358-6902
Contitech FD 200-19
Cross-reference Firestone W01-358-6902
Cross-reference Goodyear 2B9-239
Contitech FD 200-19 315
Cross-reference Firestone W01-358-6905
Cross-reference Goodyear 2B9-206
Contitech FD 200-19 319
Cross-reference Firestone W01-358-6900
Cross-reference Goodyear 2B9-216
Contitech FD 200-19 320
Cross-reference Firestone W01-358-6910
Cross-reference Goodyear 2B9-200
Contitech FD 200-19 362
Cross-reference Firestone W01-358-6908
Cross-reference Goodyear 2B9-210
Contitech FD 200-19 448
Cross-reference Firestone W01-358-6941
Cross-reference Goodyear 2B9-280/2B9-265
Contitech FD 200-19 450
Cross-reference Firestone W01-358-6940
Cross-reference Goodyear 2B9-230
Contitech FD 200-19 452
Cross-reference Firestone W01-358-6932
Cross-reference Goodyear 2B9-246
Contitech FD 200-19 499
Cross-reference Firestone W01-358-6935
Cross-reference Goodyear 2B9-201
