| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 8''X1 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $99.9-139.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Name: | Air Spring Isolator | Material: | Rubber Bellow And Steel Cover,Flange |
|---|---|---|---|
| Brand: | GUOMAT/Customized | Warranty: | 12 Months |
| Color: | Black | Contitech: | FS 138-8 DS |
| Height: | 77.5mm | Convolutions: | 1 |
| High Light: | FS138-8DS Industrial Air Spring,Single Convolution Industrial Air Spring |
||

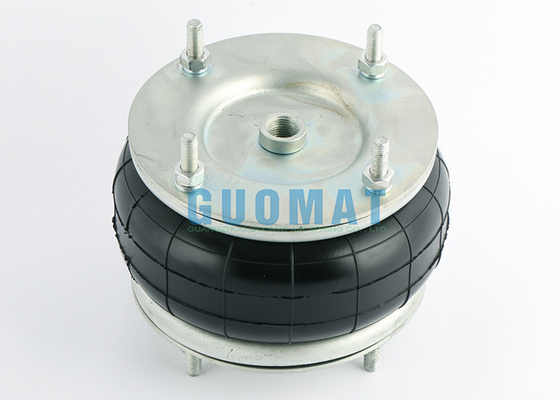

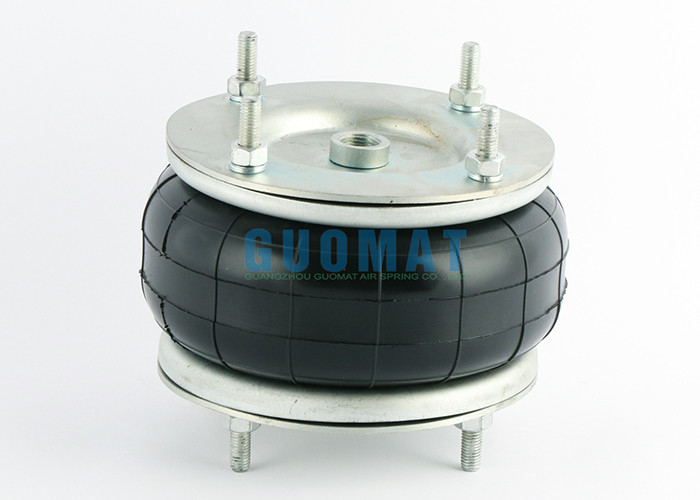

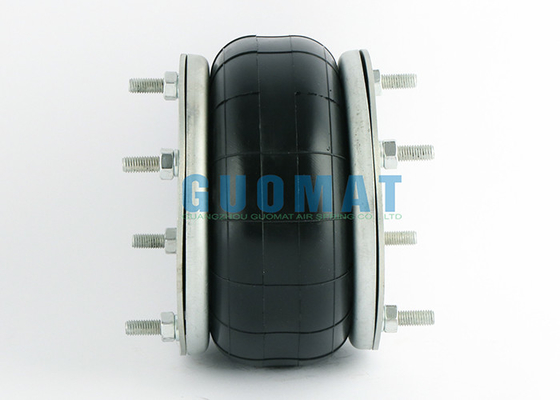

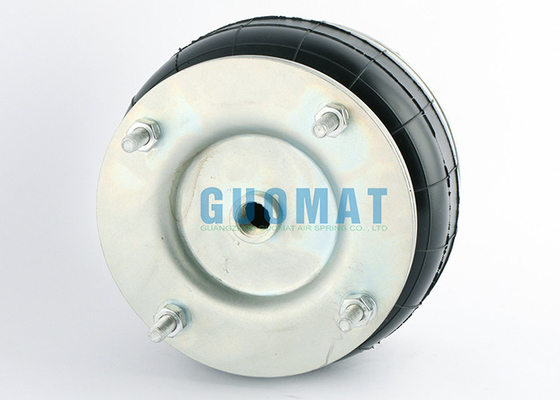

8''x1 Industrial Air Spring Flange Ring FS138-8DS Contitech Single Convolutions Air Lift Bag
Product Description
The 8X1 is an air spring manufacturerd by GUOMAT. It is a single convoluted air bag with flange.Cross reference Firestone number W01-R58-4054.
This air spring can be used in industrial machinery and equipment, such as web tensioners, paper machines, packaging machines, etc. It can reduce machine vibration, reduce noise that is harmful to the human body, and increase industrial economic benefits.
Replaces These Air Springs(Air Bellows)
Replace Continental Contitech: FS 138-8 G1/2
Replace Continental Contitech: FS 138-8 DS G1/2
Replace Continental Contitech: FS 138-8 DS G1/2 M10
Replace Continental Contitech: FS 138-8 DS M10 G1/2
Replace Continental Contitech: FS138-8 / FS 138-8 / FS1388
Firestone Number: W01R584054 / W01 R58 4054 / W01R-58-4054
Firestone Number: WO1R584054 / WO1 R58 4054 / WO1R-58-4054
Firestone Style: 8x1 / 8''x1 / 8''X1
DUNLOP PNEURIDE: 8x1 / 8''x1 / 8''X1
DUNLOP PNEURIDE: SP1537 / SP 1537
NORGREN: M/31081 / M 31081 / M31081
NominalØ(inch)xconvolutions: 8x1 / 8''x1 / 8''X1
GUOMAT 8X1 Single Convoluted Air Spring Technical Data
|
Natural Height |
77.5mm |
|
Top Cover Plate Diameter |
153.5mm |
|
Screw Type |
M10 |
|
Number of Screw on the Top Cover Plate |
4 pieces |
|
Gas Hole |
G1/2 |
|
Center Distance Between Screws |
127mm |
|
Bottom Cover Plate Diameter |
153.5mm |
|
Screw on the Top Cover Plate |
4XM10 |
|
Cover Plate Thickness |
16.25mm |
