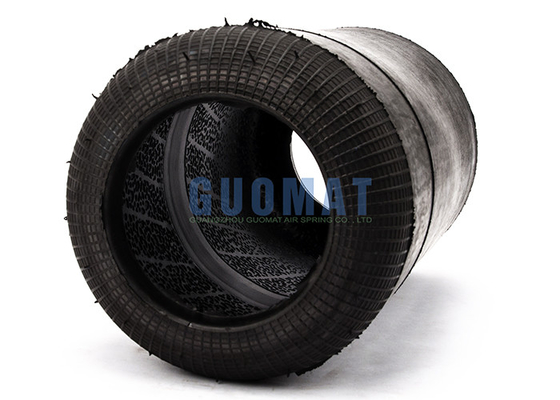

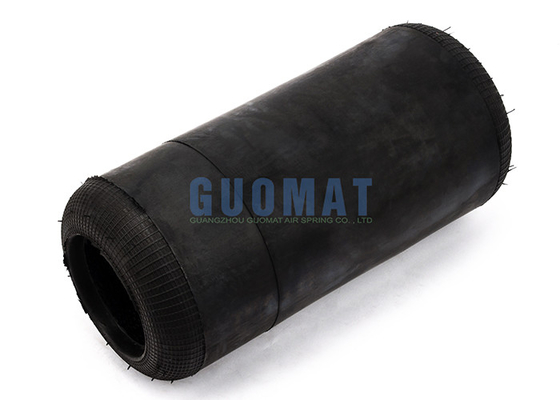

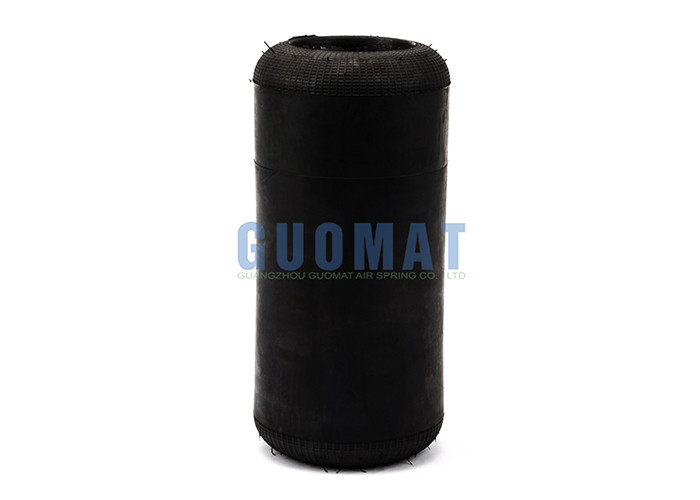

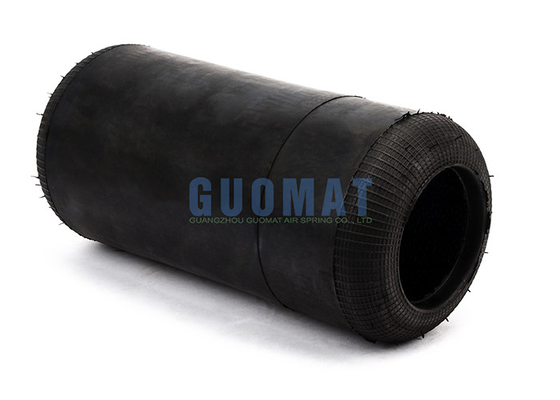

819N Contitech Bus Air Spring For Mercedes Benz A0003280101 Air Suspension

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	819N

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	$19-29/pc
Packaging Details:	strong carton box or as customers need
Delivery Time:	2-8 work days
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Material:	Natural Rubber	Warranty:	12 Months
Color:	Black	Application:	For Bus,Truck,Heavy Truck,Trailer
OEM:	Contitech 819N	Phoenix:	1 E 14
Height:	345mm	MOQ:	1 Pc
Highlight:	819N Contitech Bus Air Spring , A0003280101 Bus Air Spring , Mercedes Benz Bus Air Spring

819N Contitech Bus Air Spring For Mercedes-Benz A0003280101 Air Suspension

Product Description

Item Name	Bus Air Spring	Model Number	819N
Main Material	Rubber	Warranty	12 Months
Suitable For	For Bus Air Suspension	MOQ	1 Piece

Technical Data

Natural Height: 345mm

Outer Diameter: 160mm

Top Nominal Diameter: 100.8mm

Bottom nominal diameter: 100.8mm

Cross Reference Information

Contitech Number: 819N / 819 N

Contitech Number: 16018

Airtech Number: 3819

Connect Number: M1819 / M 1819

Keva Number: 5819

Meritor Number: MLF7119

Phoenix Number: 1E14 / 1 E 14 / 1E 14

Pirelli Number: 1S215-22

Vibracoustic Number: V1E14 / V 1 E 14

Mercedes Benz Number: A0003280101 / A 0003280101 / A 001 328 0101

Continental Contitech Bus Air Spring List

Contitech Number	GUOMAT Number	Natural Height	Outer Dia.	Effective Dia.
661N	661N	391mm	240mm	150mm
664N	664N	390mm	210mm	130mm
662N	662N	355mm	300mm	196mm
928N	928N	350mm	260mm	150mm
715N	715N	350mm	260mm	150mm
927N	927N	415mm	190mm	120mm
896N	896N	520mm	190mm	120mm
945N	945N	415mm	210mm	131mm
897N	897N	440mm	220mm	164mm
762N	762N	390mm	300mm	198mm
727N	727N	460mm	300mm	198mm
719N	719N	530mm	300mm	198mm
720N	720N	460mm	240mm	130mm
944N	944N	370mm	210mm	131mm
701N	701N	340mm	260mm	179mm
916N1	916N1	460mm	240mm	130mm
774N	774N	610mm	300mm	198mm
673N	673N	370mm	240mm	130mm
713N	713N	492mm	240mm	130mm
