Product Description

GUOMAT Model Number 1B33014

GUOMAT Bellows Number 1B330

Continental ContiTech FD330-14

Continental ContiTech FD 330-14

Continental ContiTech FD330-14 CI

Continental ContiTech FD 330-14 CI

1B33014 Convoluted Air Spring Technical Data

Air Fitting: G1

Nut/Bolt/Mount: M8X1.25

Bead Plate Diameter: 231mm

Distance Between Air Fitting and Threaded Hole: 66mm
Center Distance Between Threaded Holes: 157.5mm

The Rubber Bellows Max.Outer Diameter: 325mm

Maximum Height: 160mm

Minimum Height: 55mm

Compression Height: 105mm

Air Spring Specifications

☆Installation

Though they have comparable capabilities, air springs are much cheaper than pneumatic cylinders and other springs. When deflated, air springs have a small footprint, making them easy to manipulate and connect to machinery.

☆Maintenance

Air springs tend to have low maintenance routines and some manufacturers state their air springs are maintenance-free (set and forget). Air springs do not require lubrication, nor do they have seals or guides that may become misaligned or damaged like with other springs. Indeed, the bellows of air springs are prone to dry rot, though this could take years to develop. Air springs should be stored in dry, dark areas at room temperature.

☆Environment

Due to its durability and simplicity, air springs are good for most industrial and commercial applications. Rubber and neoprene are susceptible to dry rot, so dehumidified conditions could shorten the service life of an air spring. Both rubber and neoprene are suitable for use in high/low temperature applications, but have considerably less heat tolerance than metal spring options. While usable up to 65°C, neoprene should not be used below -40°C, and rubber shouldn't be used in sites below -60°C.

☆Media

The name air spring is a bit of a misnomer, as the bellows of the spring can also accept other types of fluids such as nitrogen, carbon, water, and anti-freeze.

Contitech Single Convoluted Air Spring

FS 22-3

FS 40-6

FS 44-5

FS 48-4

FS 50-5

FS 70-7

FS 70-9

FS 76-7

FS 100-10

FS 120-9

FS 120-10

FS 120-12

FS 138-8

FS 200-10

FS 210-10

FS 330-11

FS 330-14

FS 412-10

FS 530-11

FS 530-14

FS 614-14

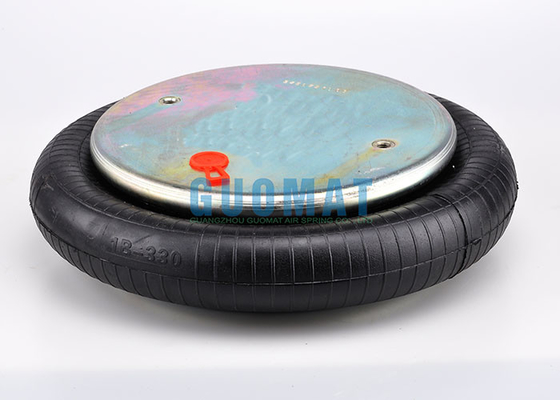

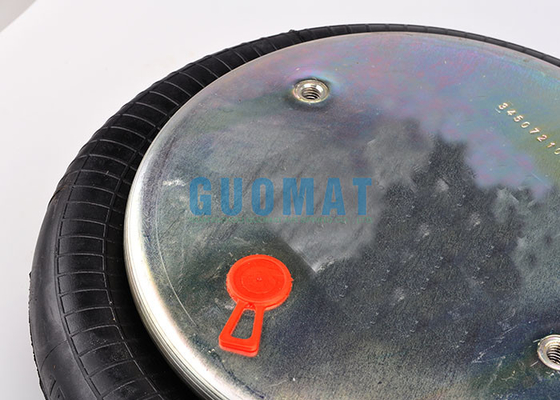

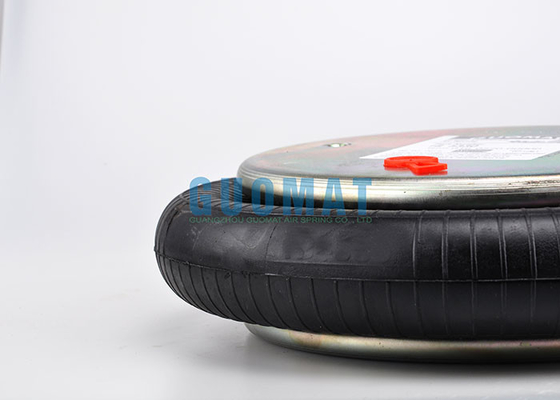

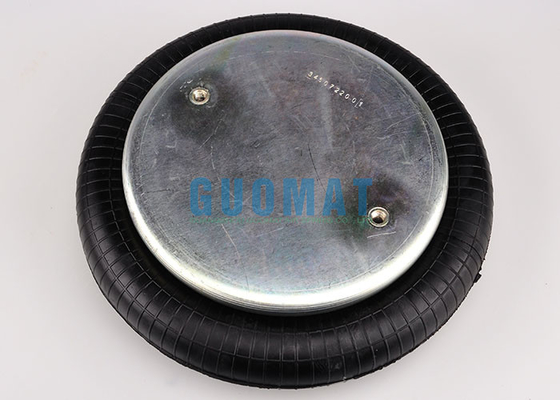

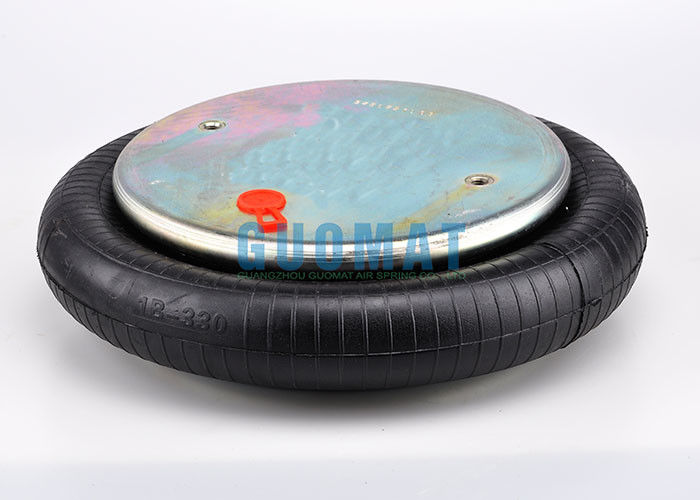

The Real Pictures of GUOMAT 1B33014 Air Spring
