| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 2B300 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $59.9-69.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Material: | Rubber + Steel | Operation: | Gas-filled |
|---|---|---|---|
| Function: | Reduce Impact | Quality: | 100% Tested |
| Warranty: | 1 Year | Directory: | Suspension System |
| Sample: | Available | Car Model: | Truck And Trailer |
| High Light: | Double Convoluted Rubber Airbag,WBZ 300-E1 Rubber Airbag,Industrial Air Spring Double Convoluted |
||

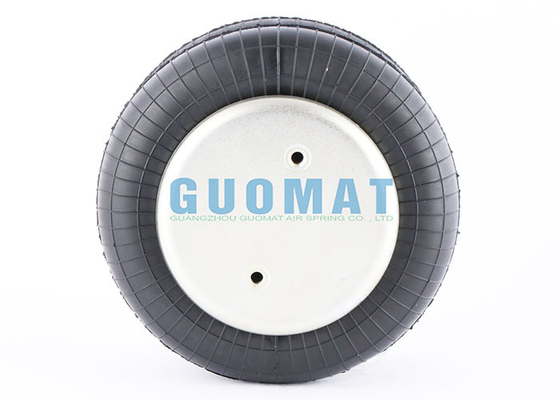

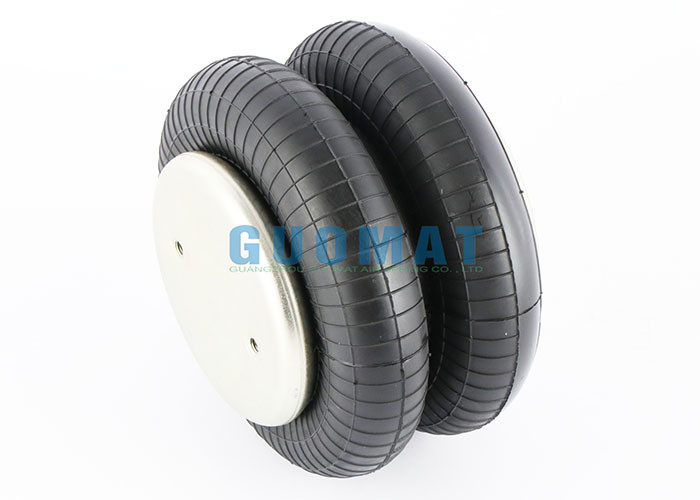

WBZ 300-E1/WBZ 300-E2 WEFORMA Double Convoluted Rubber Airbag For Pickups
Product Description
|
GUOMAT |
2B300 |
|
WEFORMA |
WBZ300 WBZ 300 WBZ300-E1 WBZ300-W2 WBZ 300-E1 WBZ 300-W2 |
Technical Data
Top cover: 141mm
Air hole specifications: G3/4, G1/4
Threaded hole specifications: 2XM8 15mm deep
Center distance between threaded holes: 70mm
Distance from air hole to threaded hole: 35mm
Bottom cover: 141mm
Threaded hole specifications: 2XM8 15mm deep
Center distance between threaded holes: 70mm
The rubber bellows max.outer diameter: 215mm
Installation space needed: 230mm
Min height: 75mm
Max height: 230mm
Min.pressure: 0 bar
Return force to min.height: ≤200N
Overall eright with clamped plates: 2.3kg
Pneumatic Application - Static Characteristic Values
|
Pressure P |
bar |
3 |
4 |
5 |
6 |
7 |
8 |
Vol.(I) |
|
Height H (mm) |
200 |
3.4 |
4.8 |
5.9 |
7.3 |
8.5 |
9.7 |
3.4 |
|
180 |
4.2 |
5.7 |
7.1 |
8.6 |
10.1 |
11.5 |
3.1 |
|
|
160 |
4.9 |
6.5 |
8.1 |
9.9 |
11.5 |
13.1 |
2.8 |
|
|
140 |
5.5 |
7.2 |
9.1 |
11.0 |
12.7 |
14.5 |
2.4 |
|
|
120 |
6.0 |
7.9 |
9.9 |
12.0 |
14.0 |
15.8 |
2.1 |
|
|
100 |
6.4 |
8.5 |
10.7 |
12.9 |
15.1 |
17.0 |
1.6 |
|
|
80 |
6.8 |
9.1 |
11.3 |
13.7 |
16.0 |
17.9 |
1.2 |
Air Connection
WBZ 100-E1 G1/8
WBZ 140-E1 G3/8
WBZ 200-E1 G1/4
WBZ 210-E1 G1/2
WBZ 250-E2 G1/4
WBZ 250-E1 G3/4
WBZ 300-E1 G3/4
WBZ 300-E2 G1/4
WBZ 320-E1 G3/4
WBZ 400-E1 G3/4
WBZ 400-E2 G1/4
WBZ 430-E1 G3/4
WBZ 430-E2 G1/4
WBZ 500-E1 G1
WBZ 500-E2 G1/4
WBZ 520-E1 G1
WBZ 520-E2 G1/4
WBZ 530-E1 G1
WBZ 530-E2 G1/4
WBZ 600-E1 G1
WBZ 600-E2 G1/4
WBZ 630-E1 G1
WBZ 630-E2 G1/4
WBZ 640-E1 G1
WBZ 640-E2 G1/4
Drawing
