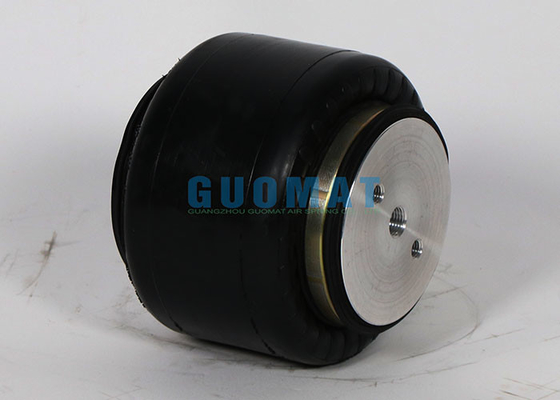

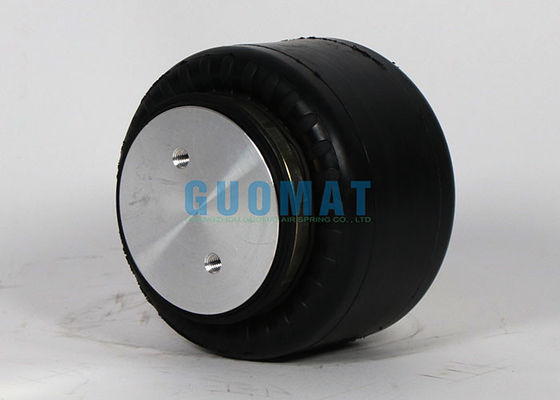

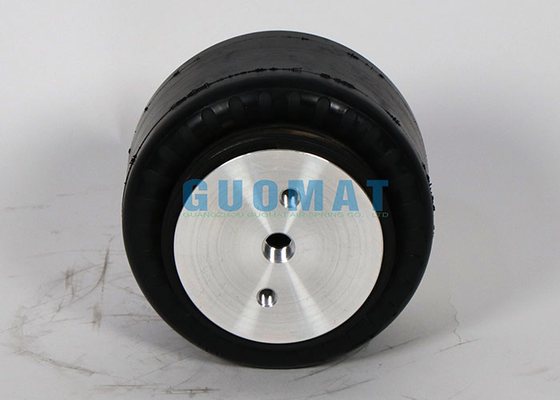

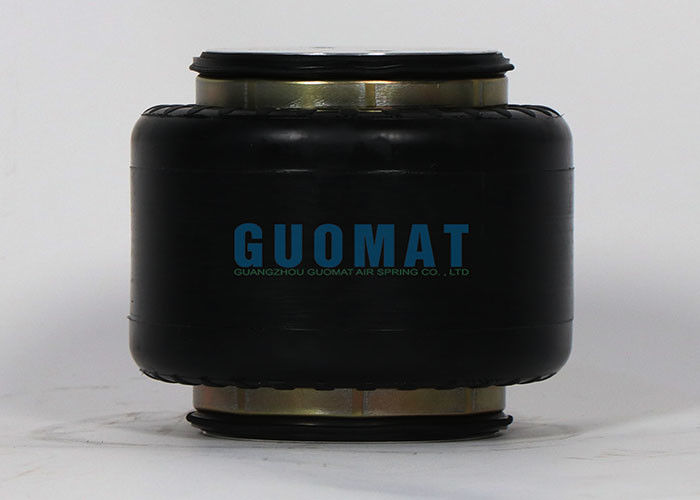

1B5-520 Goodyear Rubber Air Suspension Spring 1.8'-5.8' Air Bag Double Convoluted

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	Goodyear
Certification:	ISO/TS16949:2009
Model Number:	1B5520

Payment & Shipping Terms:

Minimum Order Quantity:	6pcs
Price:	Negotiable
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Sample:	Available	Packing:	Neutral Box Or As Customers' Request
Material:	Rubber+Steel	Warranty:	12 Months
Operation:	Gas-filled	OEM Number:	Goodyear 1B5-520
MOQ:	6pcs	Application:	For Truck, For Industrial Machine
Highlight:	Goodyear Rubber Air Suspension Spring , Air Suspension Spring Double Convoluted

1B5-520 Goodyear Rubber Air Suspension Spring 1.8'-5.8' Air Bag Double Convoluted

Product Description

GUOMAT NO.: 1B5520

GOODYEAR NO.: 1B5-520

GOODYEAR NO.: 1B5 520

GOODYEAR NO.: 1B5520

ENIDINE NPO.: YI-1B5-520

ENIDINE NPO.: YI 1B5 520

ENIDINE NPO.: YI1B5520

ENIDINE NPO.: yi-1b5-520

1B5-520 Air Spring Features

Load Range (Isolator): 190-1500ib

Design Height Range (Isolator): 3.5-5.0 in

Useable Stroke (Actuator): 3.0 in

Assembly Weight: 1.4 Ib

Force to Compress At 0 PSIG(Approx.) 40 Ib

Nominal Free Standing HT.At 0 PSIG: 4.3 in

Technical Data

Top Technical Data

Threade hole: 3/8''-16 UNC-2Bx5/8‘’ Deep

Air hole: 1/4'' or 3/4''

Center distance between threaded holes: 1.75''

Side Technical Data

The rubber bellow max outer diameter: 6.5'' at 100 PSIG

Top cover plate diameter: 3.4'

Bottom cover plate diameter: 3.4'

Max extended height : 5.8''

Compressed height: 1.8''

Bottom Technical Data

Threade hole: 3/8''-16 UNC-2Bx5/8‘’ Deep

Center distance between threaded holes: 1.75''

Constant Pressure Characteristics

Assembly Height(in)	Volume@100PSIG(in3)	Nomical Force(Ib)
Assembly Height(in)	Volume@100PSIG(in3)	@20PSIG	@40PSIG	@60PSIG	@80PSIG	@100PSIG
5.8	93	0	80	180	300	440
5.5	89	100	230	380	540	700
5.0	84	190	380	580	800	1000
4.75	80	220	440	660	900	1150
4.0	70	280	560	800	1100	1450
3.5	63	280	600	900	1200	1500
3.0	55	300	620	900	1250	1600
2.5	46	320	620	950	1250	1600
2.0	36	420	750	1100	1500	1900
1.8	31	480	850	1200	1600	2100
